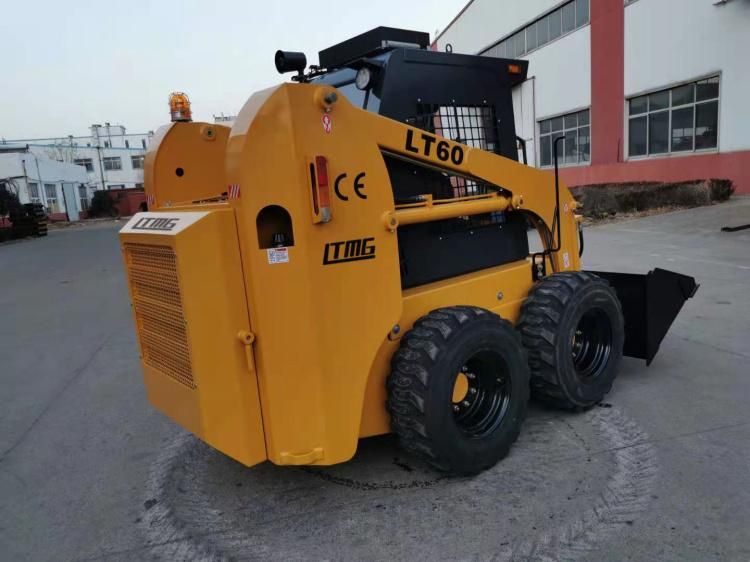

• Model NO.：LT60
• Type：Skid Steer Loader
• Engine：Mitsubishi S4s-Dt
• Warranty：1 Years or 2000 Working Hours
• Wheelbase：1085mm
• Oil Type：Diesel
• Max.Dump Height：2400mm
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：55kw
• Product Type：Skid Steer Loader
• Certificate：CE,ISO
• Color：Could Be Decided by Buyer
• Transport Package：Container
• Specification：3498mm*1800mm*2007mm
• Trademark：LTMG
• Origin：China
• HS Code：8429590000
• Production Capacity：800 Units,Year

Basic Info.

Model NO. LT60 Type Skid Steer Loader Engine Mitsubishi S4s-Dt Warranty 1 Years or 2000 Working Hours Wheelbase 1085mm Oil Type Diesel Max.Dump Height 2400mm Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 55kw Product Type Skid Steer Loader Certificate CE/ISO Color Could Be Decided by Buyer Transport Package Container Specification 3498mm*1800mm*2007mm Trademark LTMG Origin China HS Code 8429590000 Production Capacity 800 Units/Year

Product Description

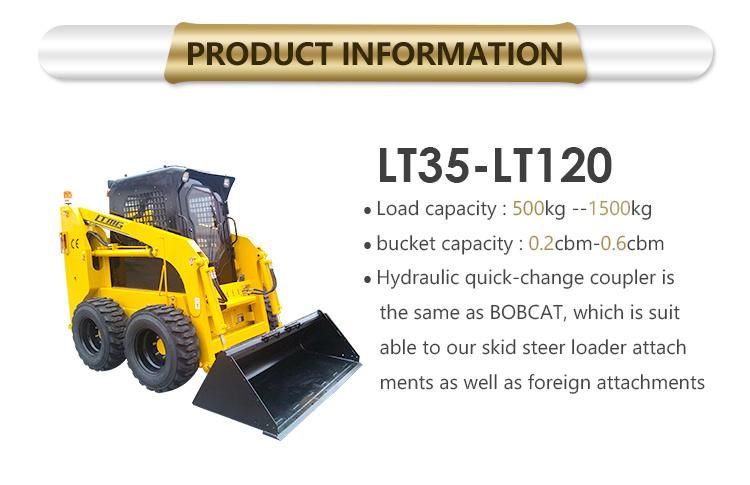

LTMG Skid Loader 500kg 700kg 850kg 1050kg 1500kg Skid Steer Loader




Model	LT45	LT60	LT65
Operating load(kg)	700	850	950
Max Speed(km/h)	12	12	12
Rated flux(L/min)	62.5	75	75
Tire(track) model	10-16.5	12-16.5	12-16.5
Rated power(Kw)	37	45	55
Fuel tank capacity(L)	70	80	80
Self weight bucket(kg)	2700	2800	3000
Bucket capacity(m3)	0.4	0.4	0.5
Overall operating height(mm)	3980	4000	4000
Height to bucket hinge pin(mm)	3080	3100	3100
Height to top of cab(mm)	2140	2160	2160
Height to bottom of level bucket(mm)	2913	2933	2933
Overall length without bucket(mm)	2640	2750	2750
Overall length with bucket(mm)	3420	3490	3490
Dumping angle at maximum height(° )	40	40	40
Dumping height(mm)	2380	2400	2400
Dumping reach(mm)	700	750	750
Rollback of bucket on ground(° )	30	30	30
Rollback of bucket at full height(° )	104	104	104
Wheelbase(mm)	991	991	1085
Ground clearance(mm)	185	205	205
Angle of departure(° )	20	20	20
Front turning radius without bucket(mm)	1168	1198	1204
Front tuning radius(mm)	1958	1958	2030
Rear tuning radius(mm)	1630	1728	1706
Rear axle to bumper (mm)	1108	1208	1082
Tread width,center line to center line (mm)	1450	1500	1500
Width(mm)	1720	1880	1880
Bucket width(mm)	1740	1880	1880

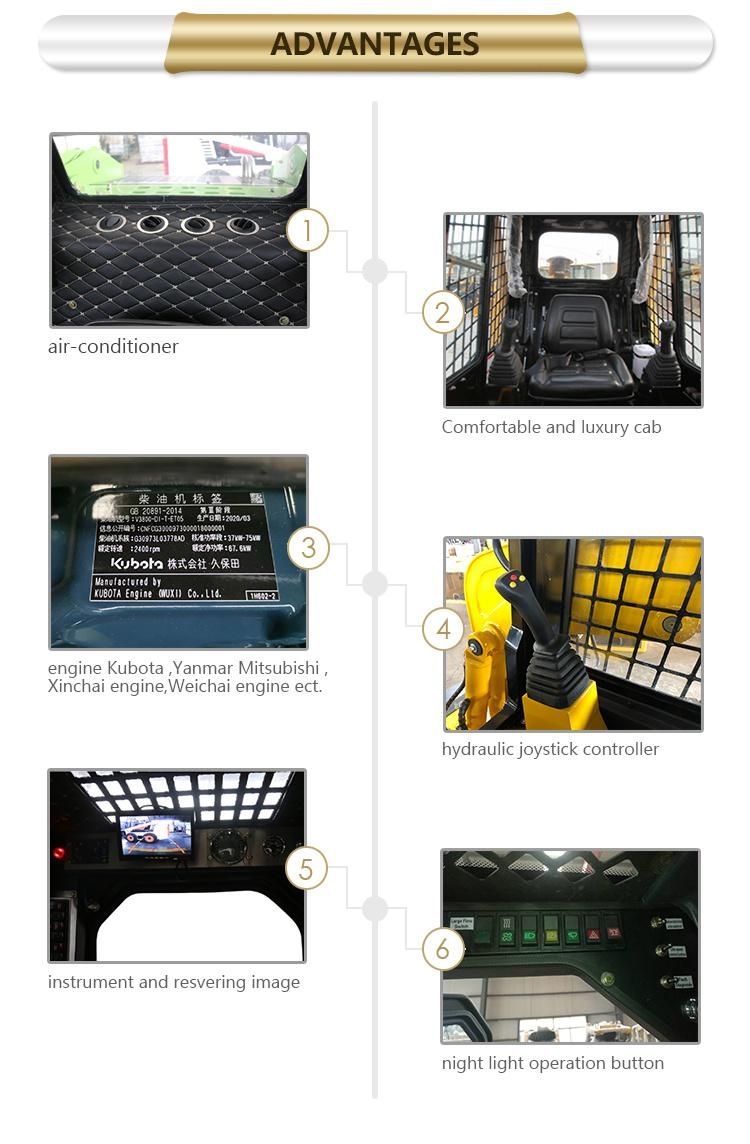

Product Feature


1.Chinese Xinchai engine,Deutz ,Cummins ,Mitsubishi engine are optional.


2.Hydraulic Control Type:Main pump is ITALY BONDIOLI brand, Motor is ITALY SAI, Multiway valve and Pilot handle use ITALY HYDQD.


3.Dual Accelerator Control Model:Manual operated + foot operated, easy to operate .


4.Open-type cabin:With shock absorption chair, safety guard bar, removable rear window.


5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments

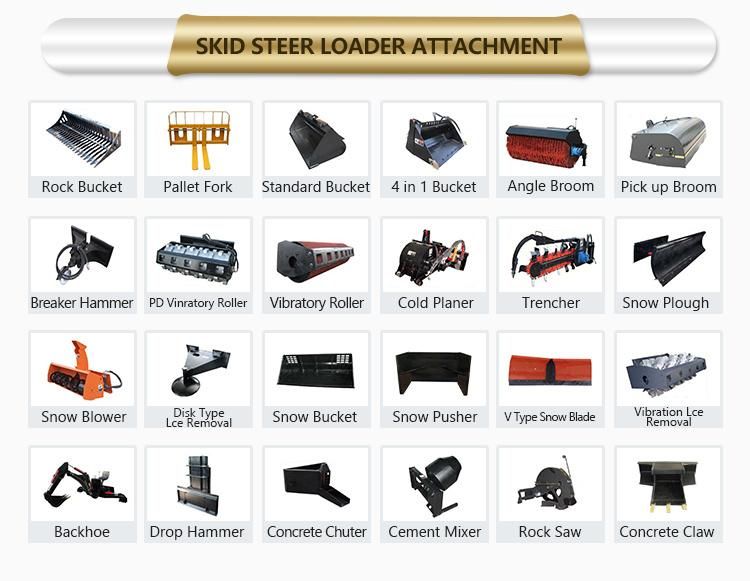

6.various attachments:Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter ect.

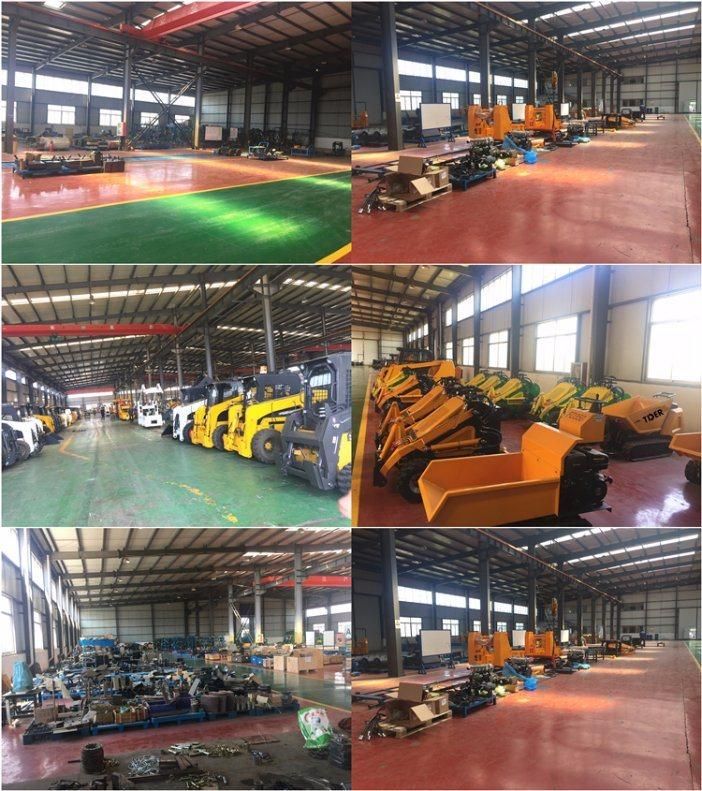

Our Factory






After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
