• Model NO.：LT780-9T
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Item：Ltmg Lt780-9t New Construction Machine Wheel Exca
• Operating Weight：6600kg
• Rated Power：48kw,2200rpm
• Hydraulic Working Pressure：25MPa
• Max.Digging Force：48kn
• Max.Traction Force：65kn
• Gradeability：59%(30°)
• Min.Ground Clearance：240mm
• Wheel Tread：2400mm
• Max.Digging Reach：6480mm
• Max.Digging Depth：3320mm
• Max.Digging Height：6700mm
• Transport Package：Nude Fixed in Container
• Specification：6205mm*2050mm*2790mm
• Trademark：LTMG
• Origin：China
• Production Capacity：300uints,Year

Basic Info.

Model NO. LT780-9T Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Item Ltmg Lt780-9t New Construction Machine Wheel Exca Operating Weight 6600kg Rated Power 48kw/2200rpm Hydraulic Working Pressure 25MPa Max.Digging Force 48kn Max.Traction Force 65kn Gradeability 59%(30°) Min.Ground Clearance 240mm Wheel Tread 2400mm Max.Digging Reach 6480mm Max.Digging Depth 3320mm Max.Digging Height 6700mm Transport Package Nude Fixed in Container Specification 6205mm*2050mm*2790mm Trademark LTMG Origin China Production Capacity 300uints/Year

Product Description

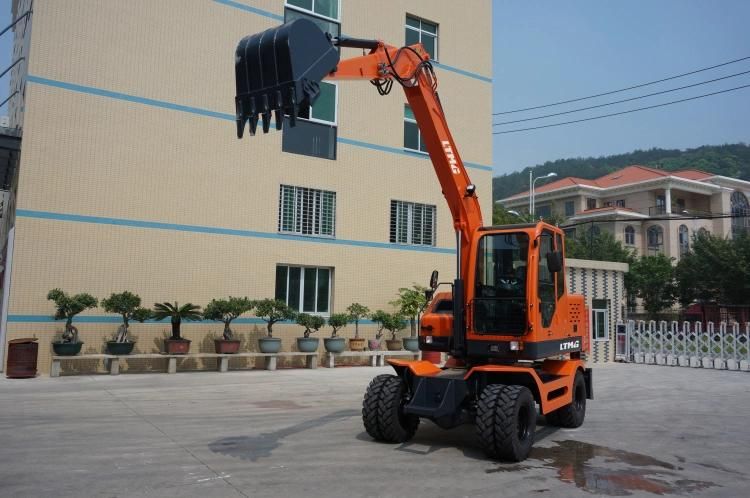

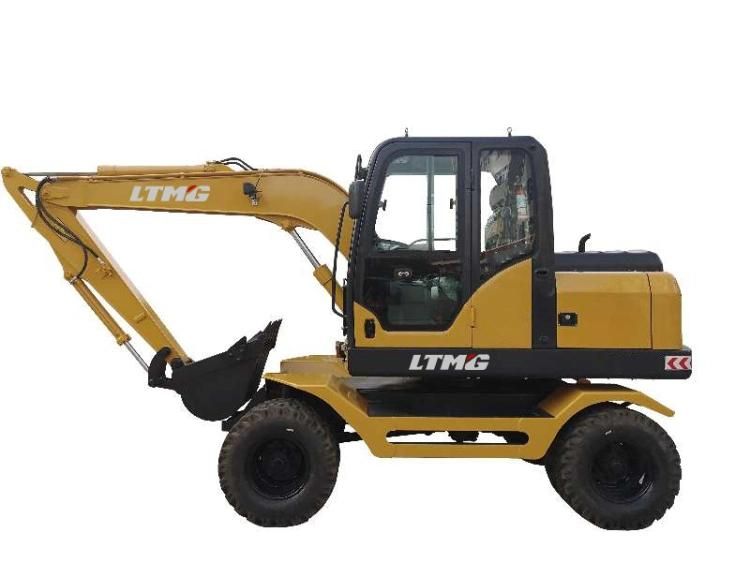

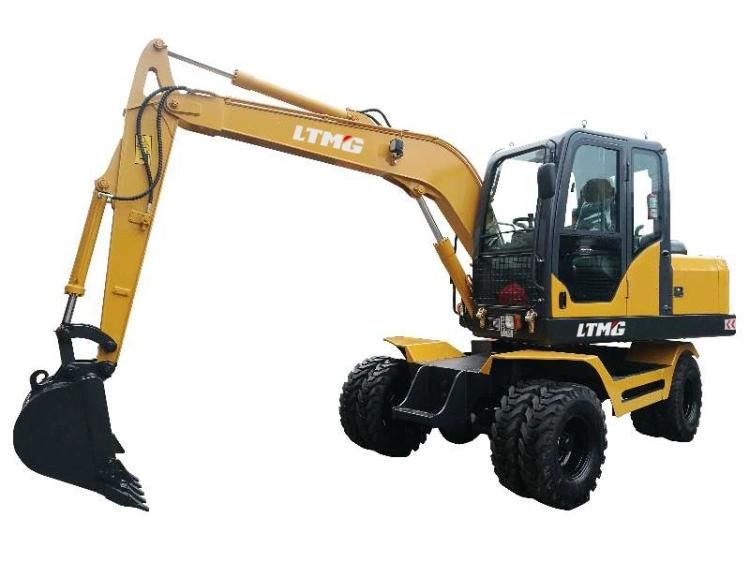

LTMG  LT780-9T new Construction machine wheel excavator price








Working Range
Boom lenghth	3400mm
Arm length	1900mm
Max.digging reach	6480mm
Max.digging depth	3320mm
Max.digging height	6700mm
Max.dumping height	5000mm
Min.platform tail turning radius	1985mm
Dimmension
Platform width	1930mm
Overall width	2050mm
Overall height	2790mm
Wheel tread	2400mm
Distance from the digging arm to rotating center	4270mm
Overall length	6205mm
Min.Ground clearance	240mm
Height for dozer blade(Optional)	460mm
Dozer blade rising distance/lowering distance	400/90mm
Technical data
Rated power	48Kw/2200rpm
Operating weight	6600Kg
Bucket capacity	0.3m³
Hydraulic working pressure	25Mpa
Max.digging force	48KN
Gradeability	59%(30°)
Travel speed	33km/h
Max.traction force	65KN
Swing speed of platform	11rpm
Fuel tank capacity	125L
Hydraulic tank capacity	160L

Product Features

1.Adopt YUCHAI engine meeting National III standard,high torque,low emission, energy saving and environmental protection,save fuel oil by 20%

2.Hydraulic system with variable displacement piston pump,and improve operation efficiency by 25%

3.Flow rate of each movement as distribution according to needs,precise and reliable composite move

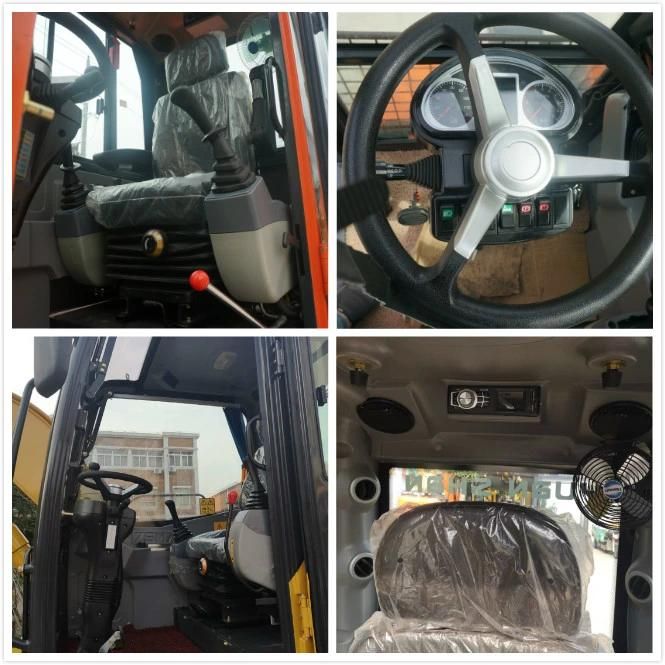

4.Joystick with precise operation,better fretting performance.

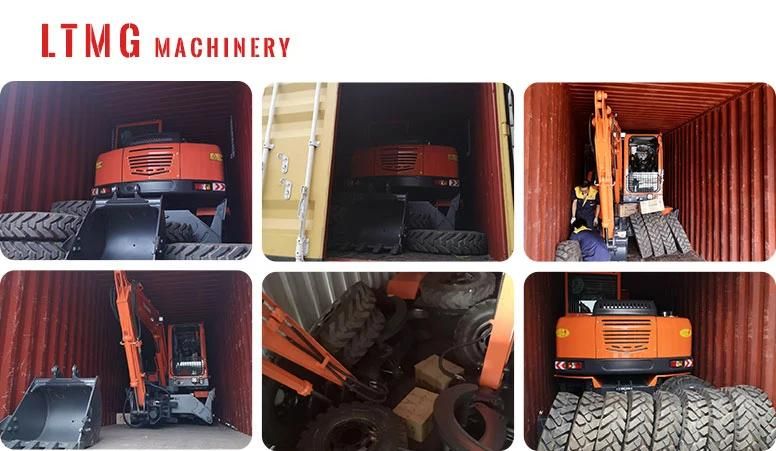

Packing&Shipping

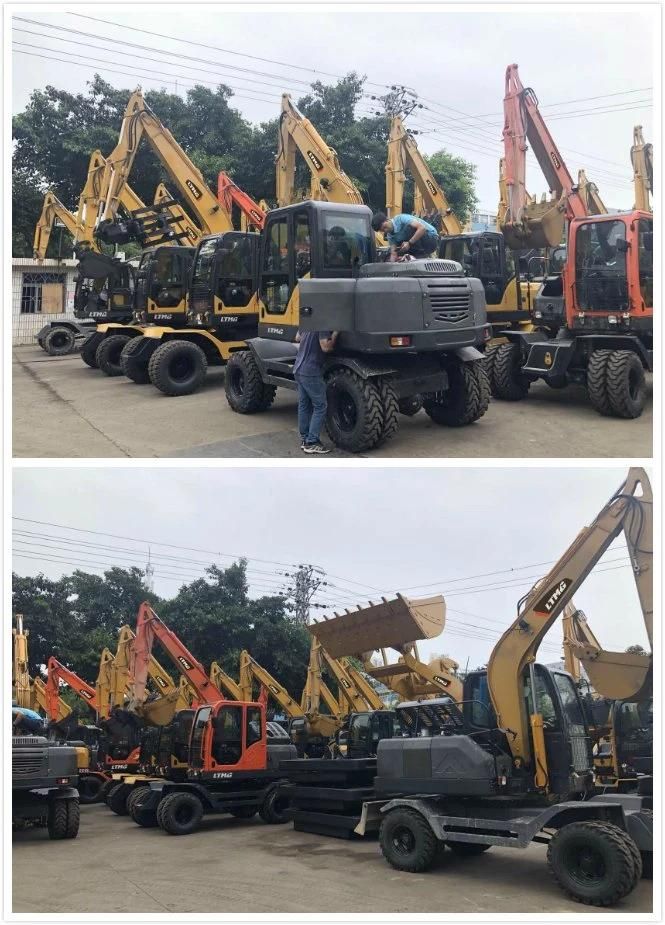

Factory Show





After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.




FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
