9 Ton Road Construction Truck Hydraulic Digger 8 Ton Excavator
XIAMEN LTMG CO., LTD.- Type:Wheel Excavator
- Usage:Mining Excavator, GM Excavator
- Bucket:Shovel
- Transmission:Hydraulic Transmission
- Drive Type:Internal Combustion Drive
- Bucket Capacity:0.3m3
Base Info
- Model NO.:LT780-9T
- Size:Medium-Sized
- Certification:CE, ISO9001: 2000
- Condition:New
- Operating Weight:6700kg
- Min.Ground Clearance:260mm
- Wheel Tread:2500mm
- Max.Digging Reach:7045mm
- Max.Digging Depth:3735mm
- Max.Digging Height:7280mm
- Engine:Yuchai
- Transport Package:Nude Fixed in Container
- Specification:6145mm*2100mm*2865mm
- Trademark:LTMG
- Origin:China
- Production Capacity:300uints,Year
Description
Basic Info.
Model NO. LT780-9T Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Operating Weight 6700kg Min.Ground Clearance 260mm Wheel Tread 2500mm Max.Digging Reach 7045mm Max.Digging Depth 3735mm Max.Digging Height 7280mm Engine Yuchai Transport Package Nude Fixed in Container Specification 6145mm*2100mm*2865mm Trademark LTMG Origin China Production Capacity 300uints/YearProduct Description

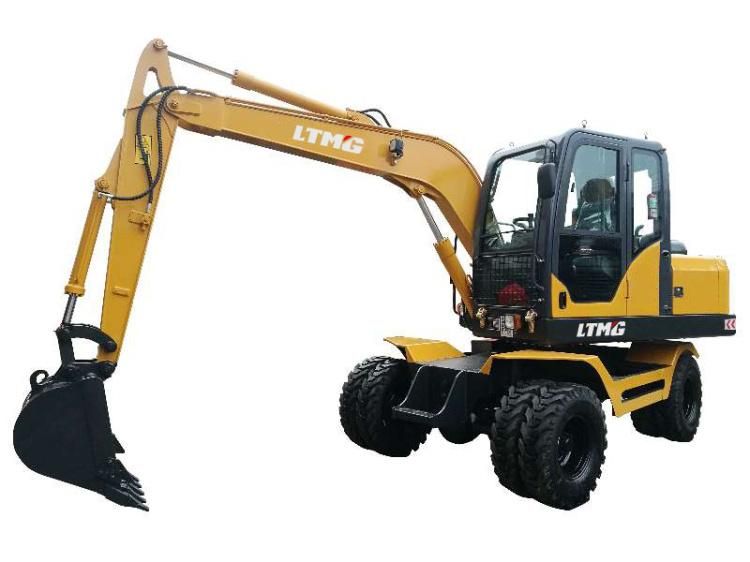

Construction equipment LT780-8T wheel excavator



Working Range | |
Boom lenghth | 3650mm |
Arm length | 2250mm |
Max.digging reach | 7045mm |
Max.digging depth | 3735mm |
Max.digging height | 7280mm |
Max.dumping height | 5530mm |
Min.platform tail turning radius | 1755mm |
Rated load | 300kg |
Dimmension | |
Platform width | 1930mm |
Overall width | 2100mm |
Overall height | 2865mm |
Wheel tread | 2500mm |
Distance from the digging arm to rotating center | 4390mm |
Overall length | 6145mm |
Min.Ground clearance | 260mm |
Height for dozer blade(Optional) | 500mm |
Dozer blade rising distance/lowering distance | 486/86mm |
Technical data | |
Rated power | 50Kw/2400rpm |
Operating weight | 6700Kg |
Bucket capacity | 0.3m³ |
Hydraulic working pressure | 21Mpa |
Max.digging force | 46KN |
Gradeability | 59%(30°) |
Travel speed | 32km/h |
Max.traction force | 65KN |
Swing speed of platform | 10.5rpm |
Fuel tank capacity | 110L |
Hydraulic tank capacity | 125L |
Product Features
1.Adopt YUCHAI engine meeting National III standard,high torque,low emission,strong power.
2.Gear pump system,easy to maintain.
3.Increase pump displacement,improve working efficiency by 17%
4.Optimize the transmission system and prolong the service life effectively.
5.Longer wheel base,operate smoothly.
6.Optimize intake and exhaust system,reduce noise by 2 decibels.

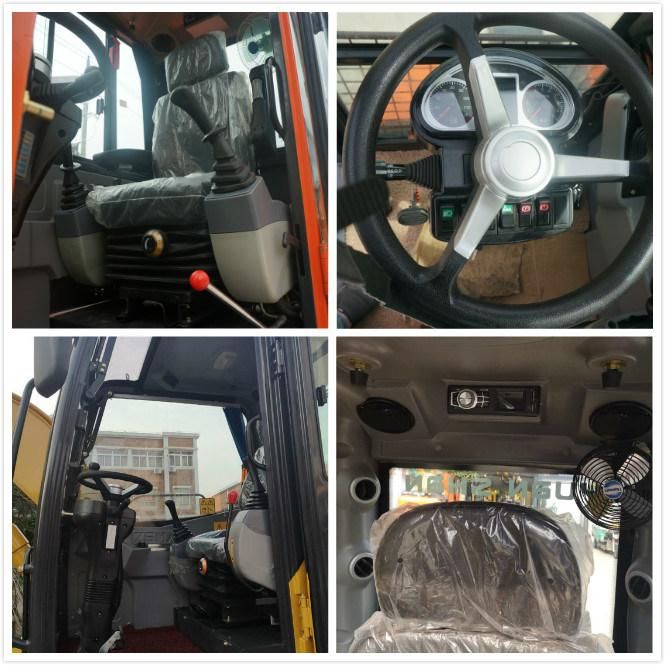

7.Luxurious cab with broad vision,comfortable for driving.

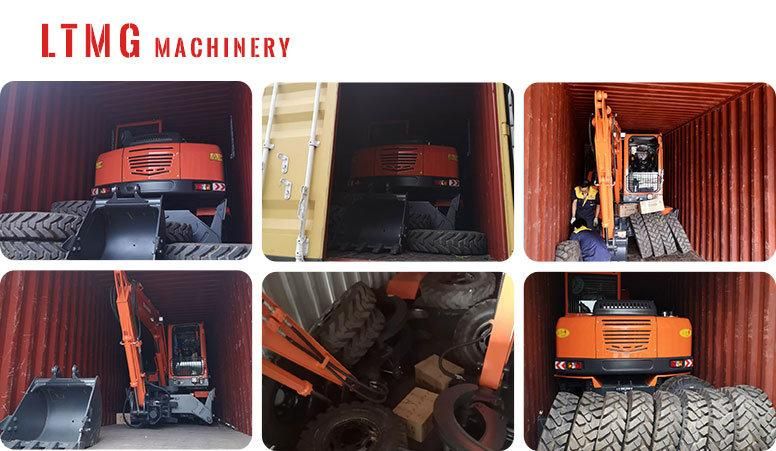

Packing&Shipping

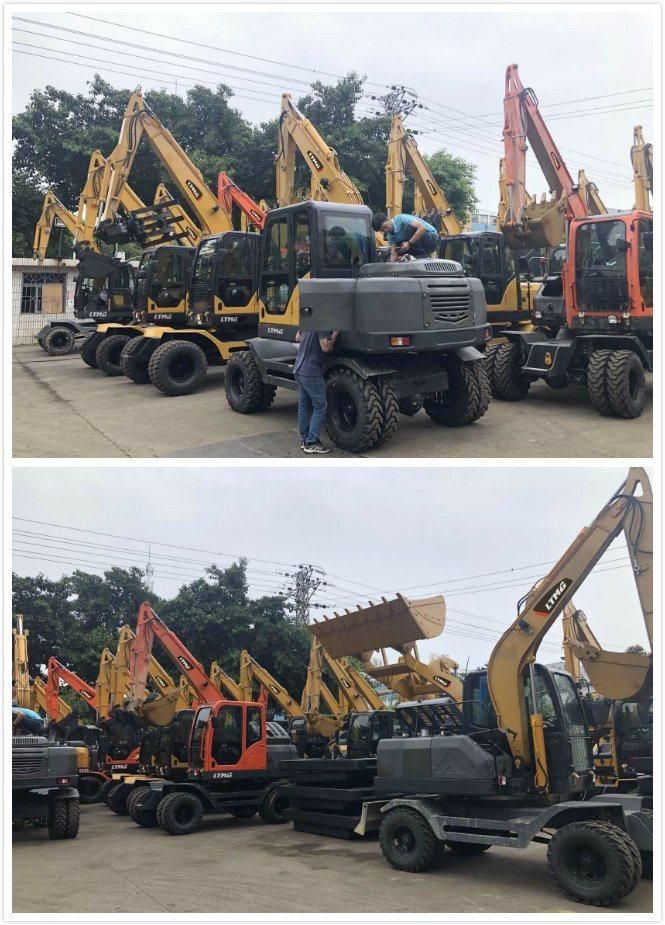

Factory Show
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
