Overspeed Safety Lock (LSL Series)
Wuxi Rigid Machinery Co., Ltd.- Specification：CE, GOST
- Trademark：Rigid
- Origin：Wuxi
Base Info
- Model NO.：OSL Series
Description
Basic Info.
Model NO. OSL SeriesProduct Description

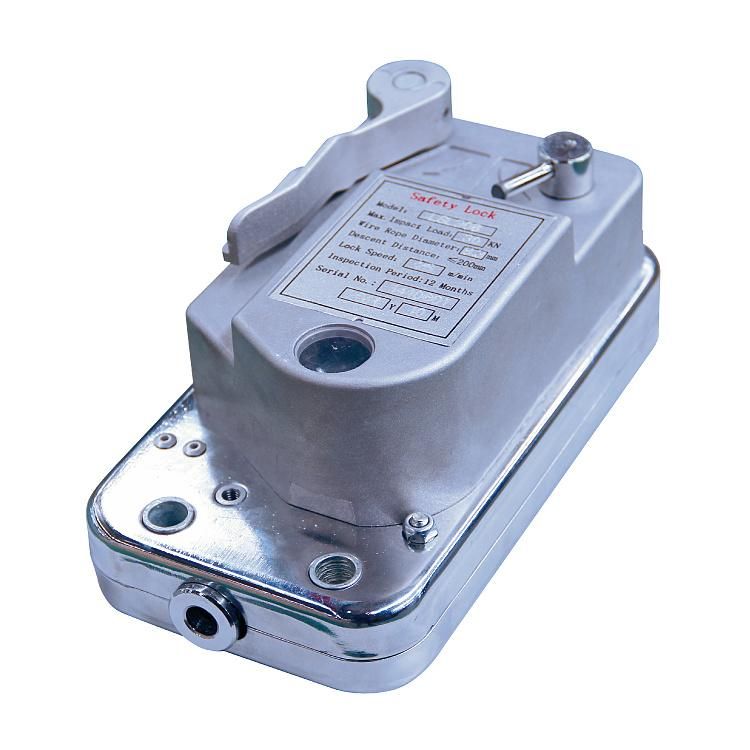

OSL Series Overspeed Type Safety LockRigid Safety lock are Fall Arrest Device, Automatically Stops a falling Load.
Description
- Safety standard: EN1808
- The OSL safety lock is released when the downwards (falling) speed exceeds 30 m/min (0.5m/sec).
- It is designed for single suspension work cages or platforms within L-stirrups.

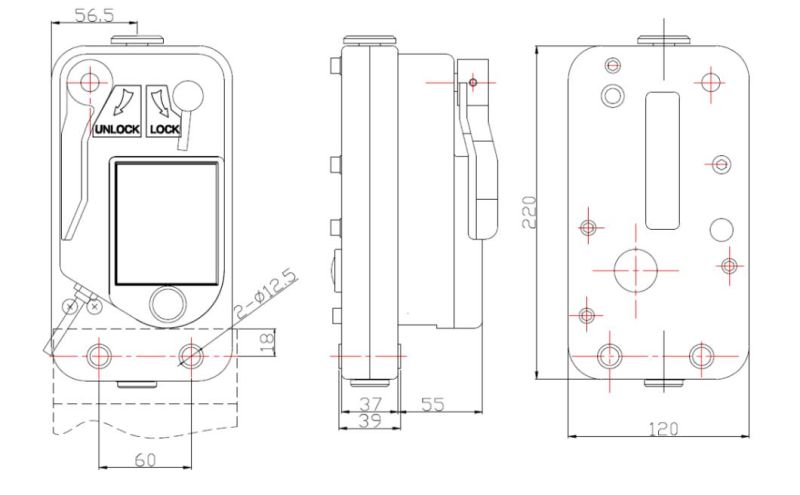

Dimensions
The type LSL is a safety device, used as fall arrest devise for man-riding operations
The OVERSPEED LSL Series safety lock operates automatically. It consists essentially of a clamping jaw mechanism and a centrifugal governor, which permanently checks the speed of the wire rope passing through the LSL. The jaw mechanism automatically clamps onto the wire rope when there is a sudden increase in speed.
| Model | LSL308 | LSL309 | LSL310 |
| Type | Overspeed | Overspeed | Overspeed |
| Rated Load | 630kg | 800kg | 1000kg |
| Wire Rope Diameter | 8.3mm | 9.1mm | 10.2mm |
| Locking Distance | <200mm | <200mm | <200mm |
| Cable Locking Speed | 15-30m/min | 15-30m/min | 15-30m/min |
