Vibratory Roller with Dozer Blade
Shandong Roadway Construction Machinery Manufacturing Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Compaction Depth：30cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：RWYL51CT, RWYL51BCT
- Travel Speed：30cm,s
- Centrifugal Force：25kn
- Certification：CE
- Condition：New
- Transport Package：Plywood Package
- Specification：Plywood box
- Trademark：ROADWAY
- Origin：China
- HS Code：84294019
- Production Capacity：50sets,Month
Description
| Type | RWYL51CT |
| Run | |
| Speed | 0-8km/h |
| Turning radius | 1900mm |
| Climbing capacity in theory | 30% |
| Compaction | |
| Static load forward/back | 80/85N/cm |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 65Hz |
| Exciting force | 2x25kN |
| Water tank volume | 150L |
| Working | |
| Drive | Variable plunger pump, radial plunger hydraulic motor |
| Vibration | Gear pump, Gear motor |
| Turning | Hydraulic steering |
| Engine | |
| Model | Yanmar |
| Type | Diesel engine, water-cooled, 4stroke, three cylinder |
| Power | 20kW/3000rpm |
| Fuel tank volume | 30L |
| Lubricant L | 2.2L |
| Fuel consumption | 281g/kWh |
| Dimension | |
| Width of steel wheel | 900mm |
| Diameter of steel wheel | 560mm |
| Total length | 2350mm |
| Total width | 1150mm |
| Total height | 2230mm |
| Tread | 1340mm |
| Packing size | 2500×1140×1700mm |
| Weight | |
| Working weight | 1850kg |

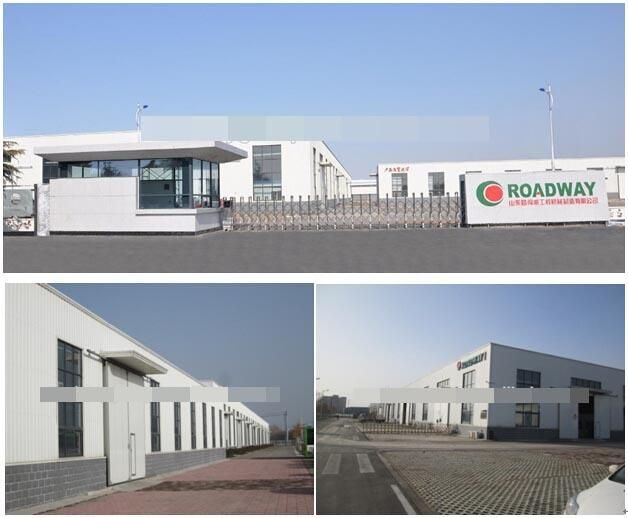

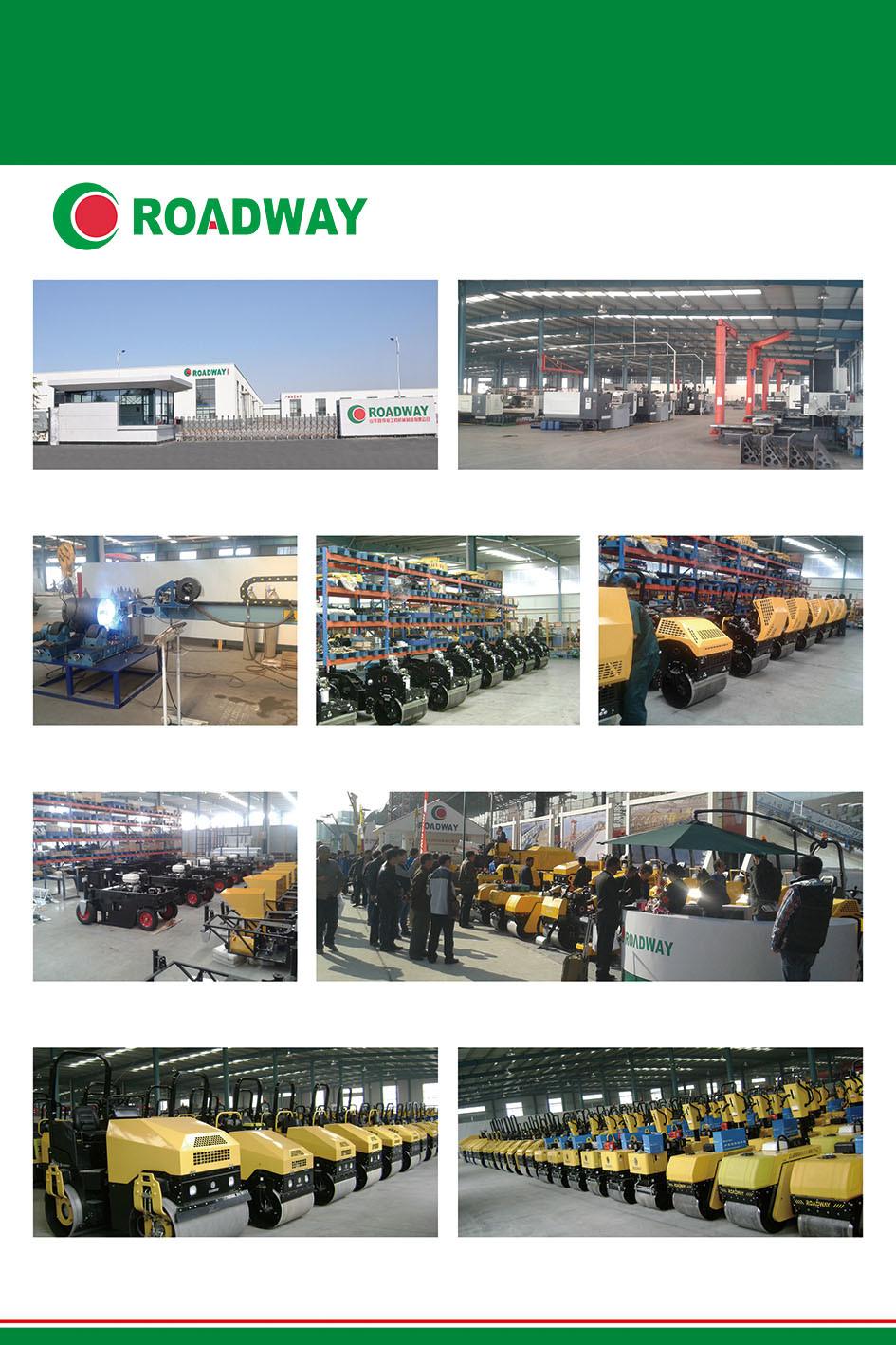

Shandong Roadway Construction Machinery Manufacturing Co., Ltd is located in located in High-Technology Industrial Development Zone, Jining city, China. The company covers about 100000m2. The company is specialized in small and medium and special construction machinery used in the area of highway, railway, water conservancy, etc. The products are up to 40 types, 20 types of which have applied for national patent. The 40 products are divided into five categories, which are Compacting equipments, Concrete construction equipments, Canal construction equipments, Cutting and breaking equipments and Lighting equipments, such as Vibratory Rollers, Plate compactor, Concrete Laser Screed, Ride-on Power Trowel, Shot-blasting machine, Concrete Cutter, Light Tower, etc

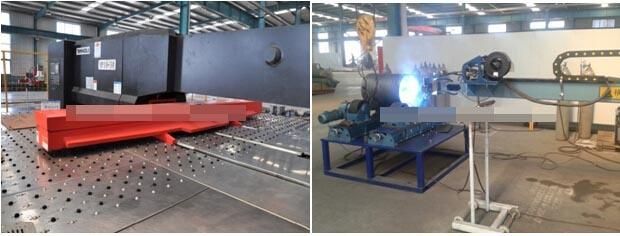

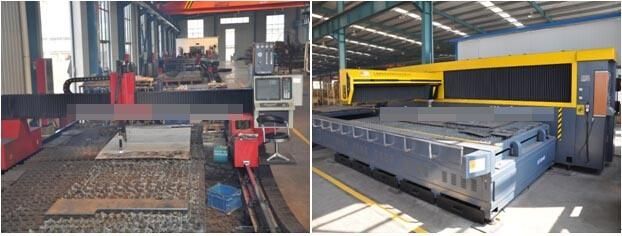

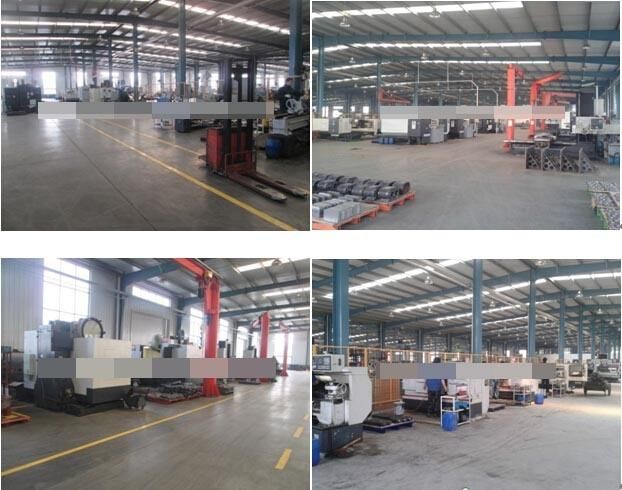

The company has advanced and complete CNC processing equipments, such as Tetra-shaft (Triple-shaft) processing centers, CNC boring machine, CNC Lathe, CNC drilling machine, Digital bending machine, CNC wire-cutting machine, CNC water-cutting machine, CNC turret punch press and Welding robot, and 3 d coordinate measuring, etc.
