Official 1.5 Ton- 21 Ton Mini Small Digger Excavator, Hydraulic Wheel Excavator, Mining Crawler Excavator Machine, China New Excavator with Parts for Sale

Qingzhou Chuanhong Agricultural Equipment Co., Ltd.
  • After-sales Service：Supply Small or Light Part in Warranty
  • Warranty：One Year or 1500 Working Hours
  • Type：Crawler Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
  • Bucket：Backhoe
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：LQ 22
  • Drive Type：Diesel
  • Bucket Capacity：0.1m³
  • Size：Small-Scale
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Engine Model：Laidong,3te30
  • Power/Rotation Speed：22.1kw(30HP)@2300rpm
  • Overall Dimension (L*W*H)：4170mm*1300mm*2280mm
  • Maximum Travel Speed：2.5km,H
  • Swing Speed：12rpm
  • Max. Grade Ability：30 Degree
  • Machine Weight：2200kg
  • Axle Base(Track Length on Ground)：1230mm
  • Track Gauge：1070mm
  • Max. Digging Height：3700mm
  • Max. Dumping Height：2290mm
  • Max. Digging Depth：2450mm
  • Max. Digging Radius：4370mm
  • Min .Swing Radius：2020mm
  • Color：Customized
  • Transport Package：No Package
  • Specification：LQ 22
  • Trademark：Luqing
  • Origin：Qingzhou, Shang Dong, China
  • HS Code：84295212
  • Production Capacity：1000

Description

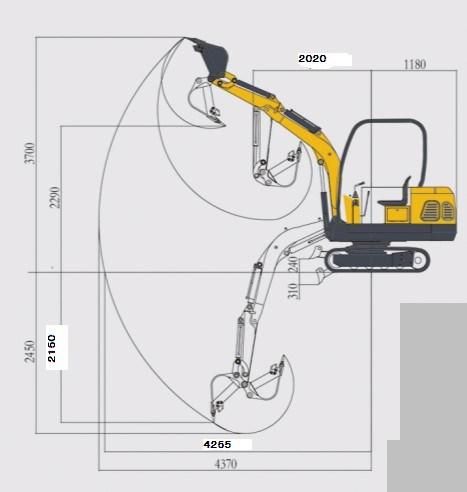

WORKING RANGEMaximum Digging height3700mmMaximum Dumping height2290mmMaximum Digging depth2450mmMaximum Vertical digging depth2160mmMaximum Digging radius4370mmMinimum swing radius2020mmMaximum Lifting height of blade240mmMaximum Cutting depth of blade310mmBoom swing angle(Left/Right)70°/50°

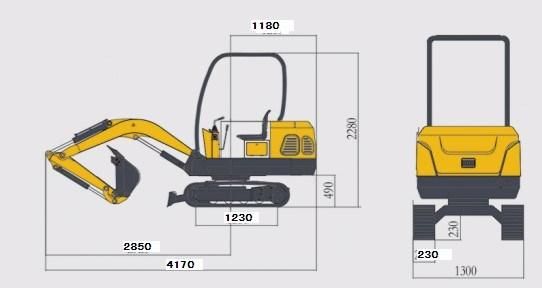

Diagrammatic drawing Official 1.5 Ton- 21 Ton Mini Small Digger Excavator, Hydraulic Wheel Excavator, Mining Crawler Excavator Machine, China New Excavator with Parts for SaleOfficial 1.5 Ton- 21 Ton Mini Small Digger Excavator, Hydraulic Wheel Excavator, Mining Crawler Excavator Machine, China New Excavator with Parts for Sale
CONDITIONS:

QUOTATION TERMS:
  1. Based on FOB Qingdao or Tianjin port.
  2. 30 days validity since issuing date.
PACKING DETAILS:
  • 2 pcs in 20GP container.
  • 4 pcs in 40GP container.
  • Bulk cargo or RO-RO
  • Nude
DELIVERY TERMS:

Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
PAYMENT TERMS:
  • By T/T: 30% as deposit and the balance paid after finishing production before shipment
ACCESSOORIES:

Tools box, operator's manual and a list of spare parts.
WARRANTY:
Generally, 6 months or 1000 hours since first receiving the goods, whichever first
ORIGINAL: China
OPTIONS:
  • Steel track
  • Closed (full seal)cabin
OPTIONAL ATTACHMENTS:
  • Breaker
  • Log grapple
  • Auger
