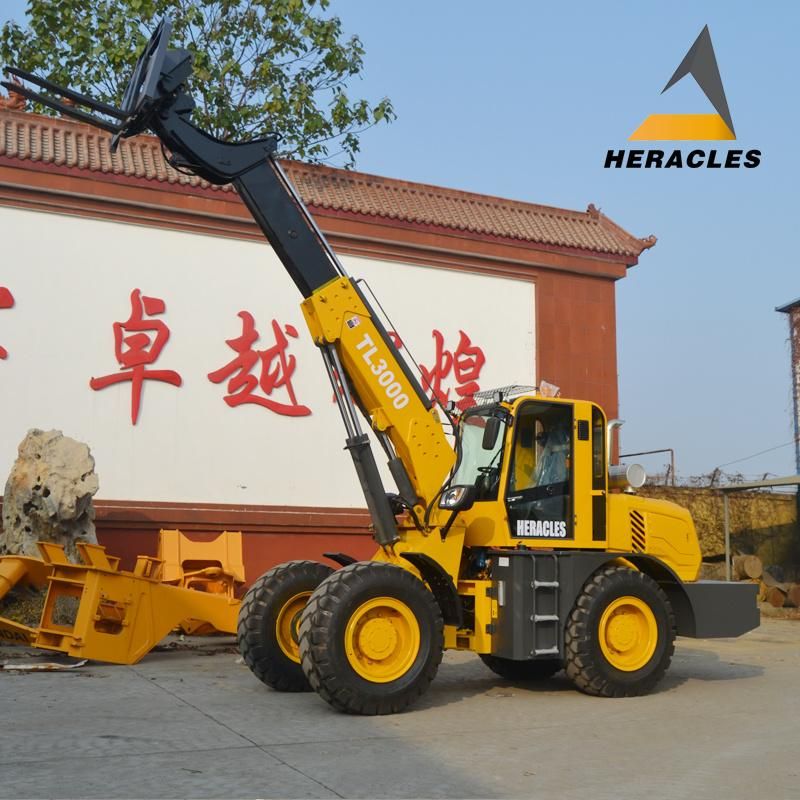

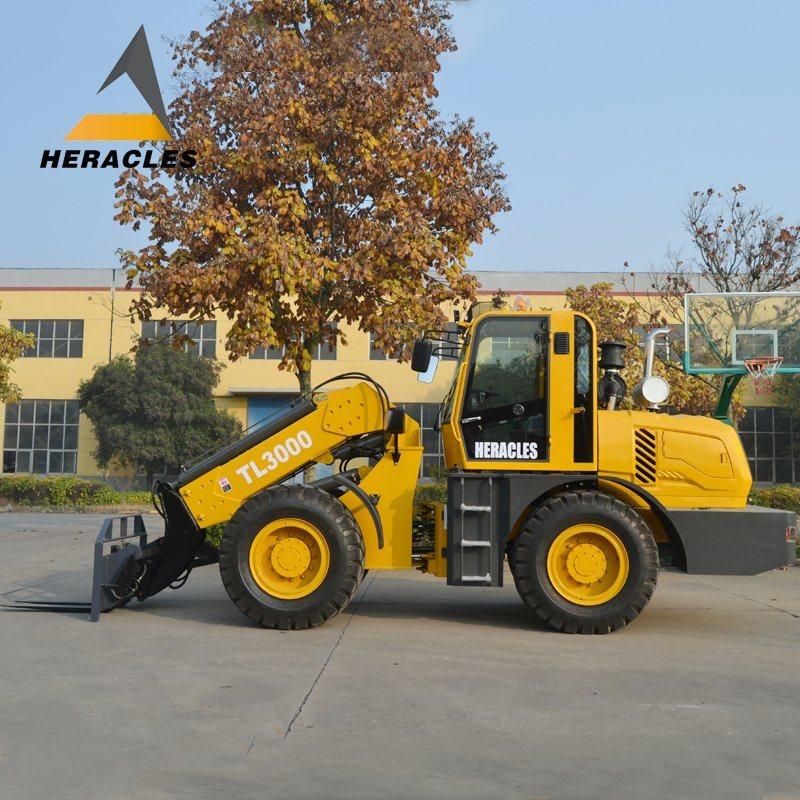

• Model NO.：TL3000
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Standard Engine：Yuchai 85kw
• Optional Engine：Cummins,Hetz,Kholer
• Engine Certificate：Euro5,EPA4 Tier
• Total Wegiht：7600kg
• Rated Power：3000kg
• Max. Shovel Width：2300mm
• Bucket Capacity：1.7cbm
• Max. Lifting Height：6300mm
• Lifting to Bucket Hinge Pin Height：5800mm
• Bucket Unloading Height：5300mm
• Tire Model：17.5-25
• Optional Tier Type：Snow Tires,Terrain Tires,Agriculture Tire
• Transport Package：Nude Package in Container
• Specification：6800*2300*2860mm
• Trademark：Heracles
• Origin：Qingzhou City, Shandong Province
• HS Code：84295100
• Production Capacity：600sets

1.0 Engine Details
(1) Model: YUCHAI Engine
(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
(3) Rated Power:85KW
(4) Rated Speed:2400 r/p.min (rpm)
(5)Optional Engine: same with offer sheet
2.0 Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
3.0 Bucket
(1) Bucket Capacity: 1.5m³
(2) Bucket width: 2300mm
(3) Bucket type:Heavy-duty bolt on teeth
(4) Rated Load: 3000kg including attachment or bucket
4.0 Overall Dimensions
(1) Overall Length: 6860mm
(2) Overall Height:2860mm
(3) Overall Width: 2300mm
(4) Max. lifting Height:5800mm
(5) Lifting to bucket hinge pin Height:5300mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5800mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) European quick coupling system
(5) Joystick control
6.0 Brake System
(1) Service Brake:Safer air assist disc brake braking system
(2) Parking Brake:Hand operated(Disc brakes)
7.0 Tire
Model:17.5-25
8.0 Wheelbase: 2430mm
9.0 Track: 1700mm
10.Operation weight :7600KG
