Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Certification：TUV, ISO, CE, Rops&Fops
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic

Base Info

  • Model NO.：HQ915
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Loading Weight：1500kg
  • Operation Weight：3850kg
  • Transport Package：3 Units in One 40 Container
  • Specification：CE, ISO, SGS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：6000 Units,Year

Description

Specifications of HQ915 wheel loader :1,Engine Details Model:CHINA YUNNEI OR XINCHAI 498BT  ( Euro III and EPA )Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine Rated Power:37kw / 42kwRated Speed: 2400 r/p. Min (rpm) Fuel Consumption ratio in standard working condition:  230g/kw. H  2,Transmission SystemType:Fixed-spindle Power shift Shift gear control oil pressure:1.2~1.5MPa Rated input speed: 2500 (rpm)   3,Bucket Bucket Capacity:0.8m3Bucket width:1750mmBucket type:Heavy-duty bolt on teeth Max. Breakout Force: 45KN Rated Load: 1500kg Max loading weight :1800kgOperating Weight:4250kg  4,Overall Dimensions  Overall Length (Bucket on ground position):5300mmOverall Height : (a) Ground to Cab Top:2720mm(b) Dumping Height: 2650mm(c) Overall Width: 1750mm  5, Operating Specifications Steering System:Articulated Frame with hydraulic power steering Min Turning Radius:4400mm Driving System: Hydraulic converter   6,Brake System Service Brake: Four Wheel Hydraulic spread-shoed brake Parking Brake: Hand operated  7,Tyre  Model:12-16.5 / 14-17.5  8,Wheelbase : 1950mm  9,Track:1400mm

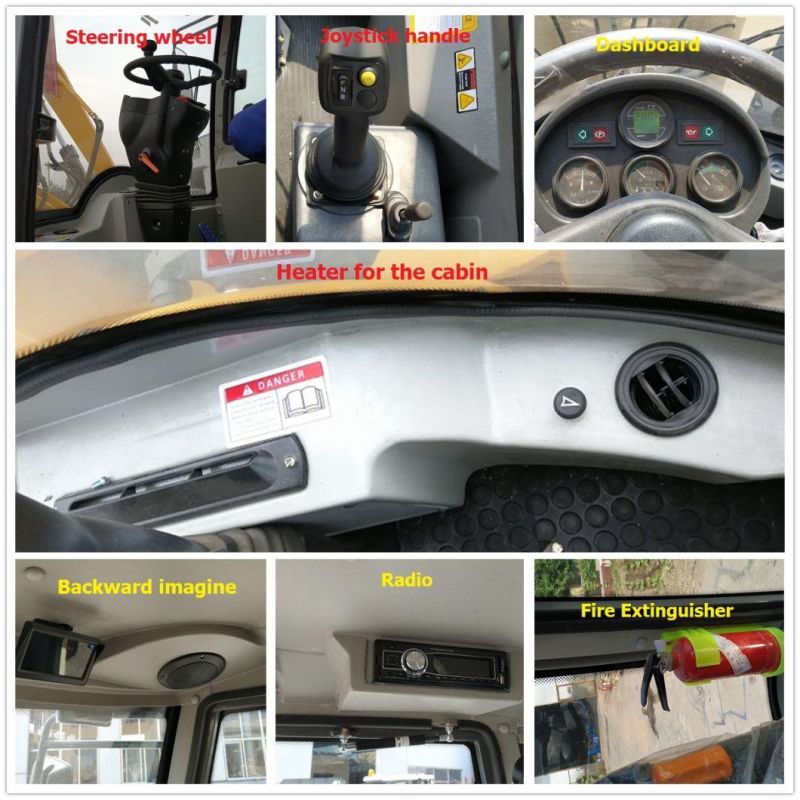

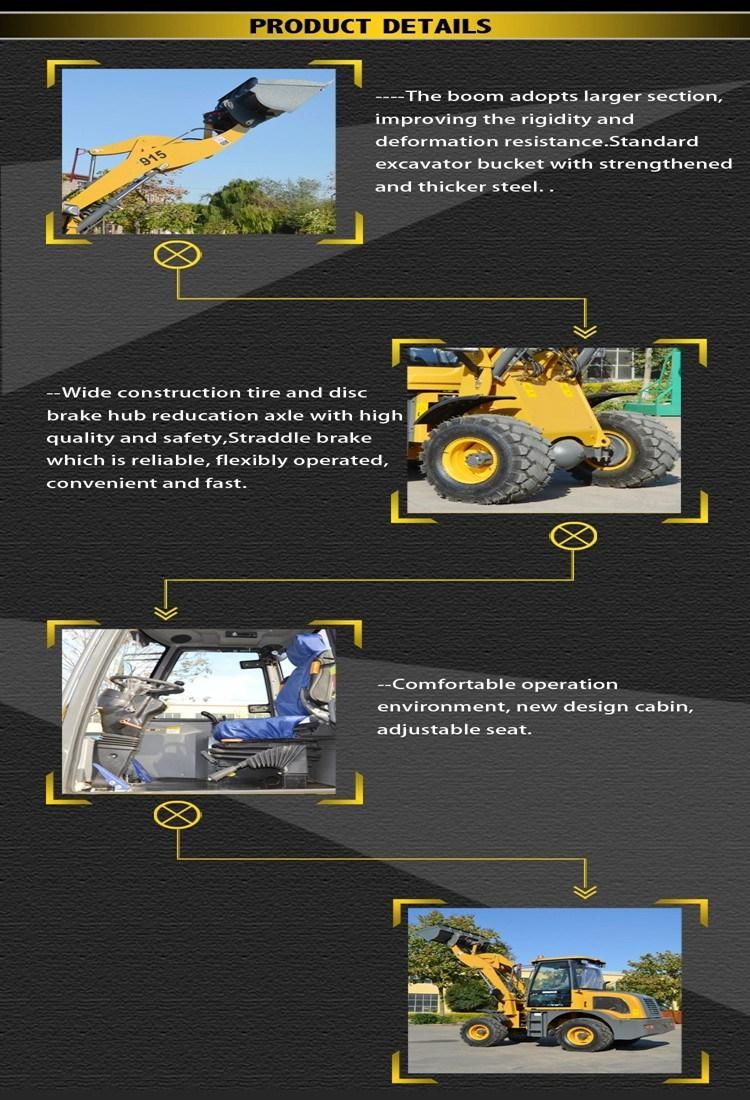

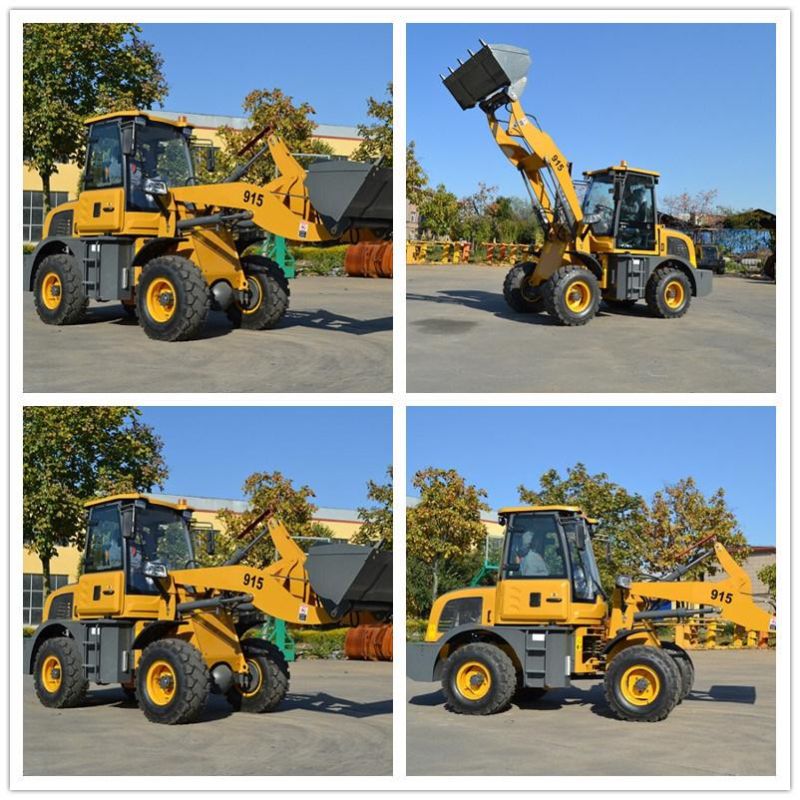

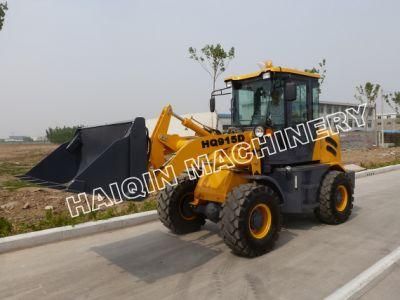

3, Details Photos of HQ915 Wheel Loader

Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader
Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader
Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader

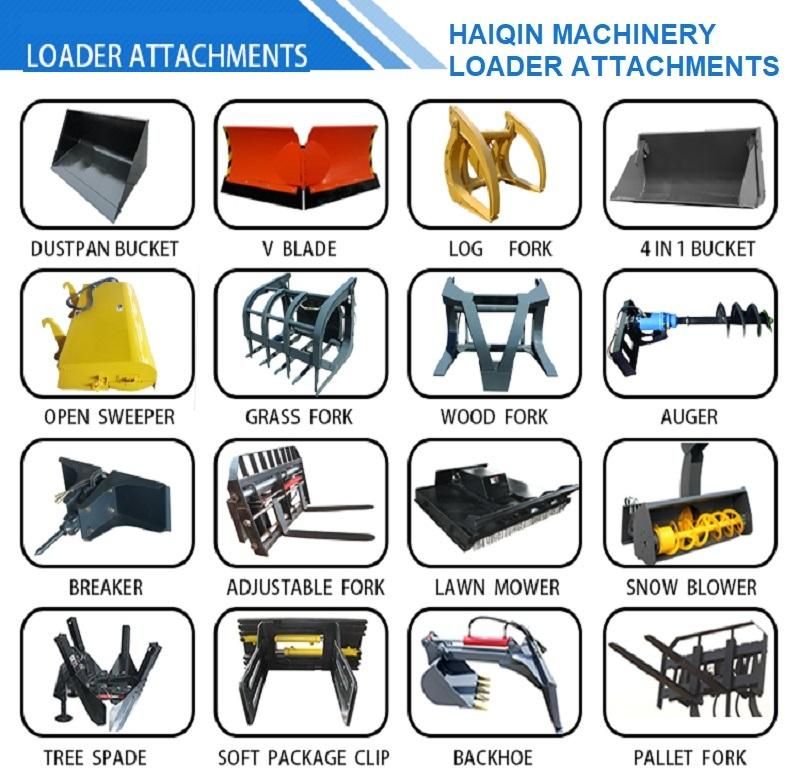

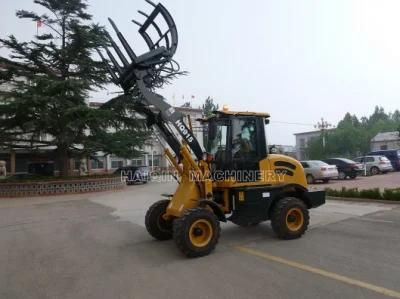

4,Optional Attachments for HQ915 Wheel Loader

Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader


5, Factory introduction of Haiqin Machinery

Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader

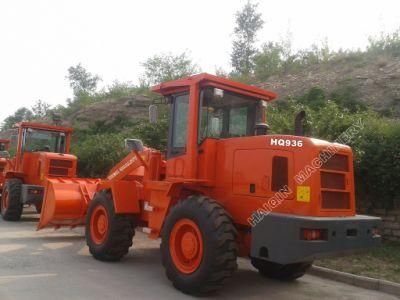

6,Working Case in the foreign countries of Haiqin Machinery' Loaders.

Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader
7,Certificate of Haiqin Machinery
Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader

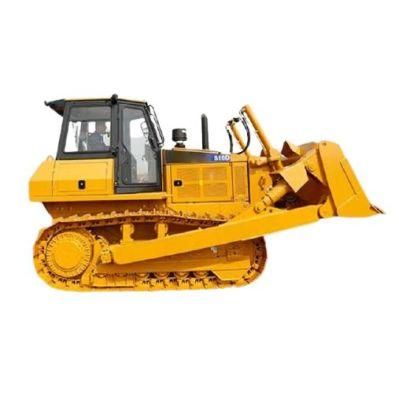

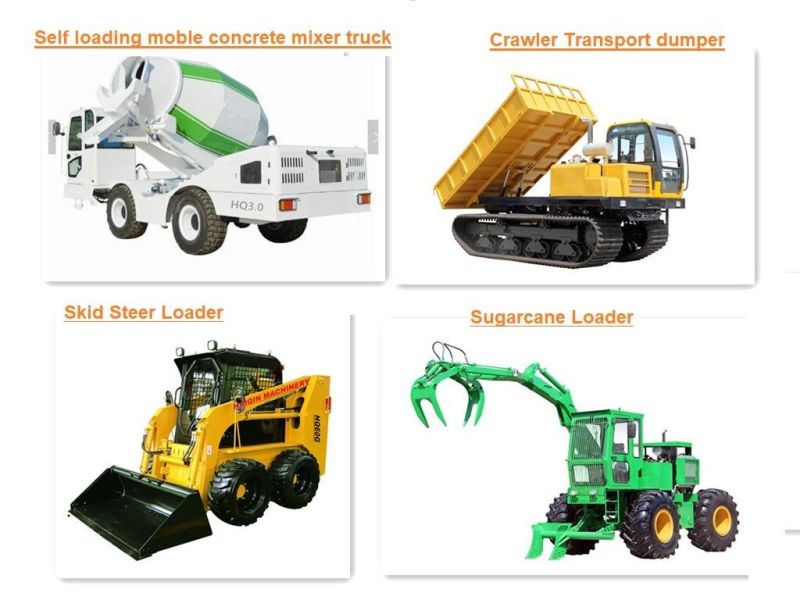

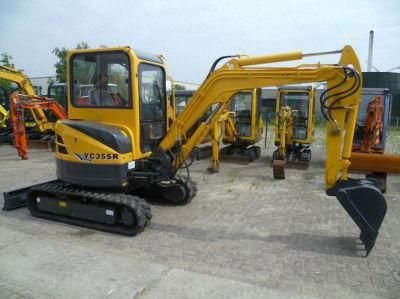

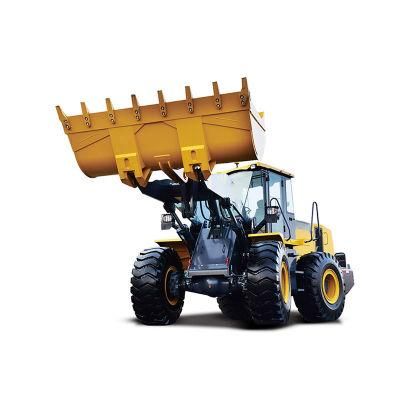

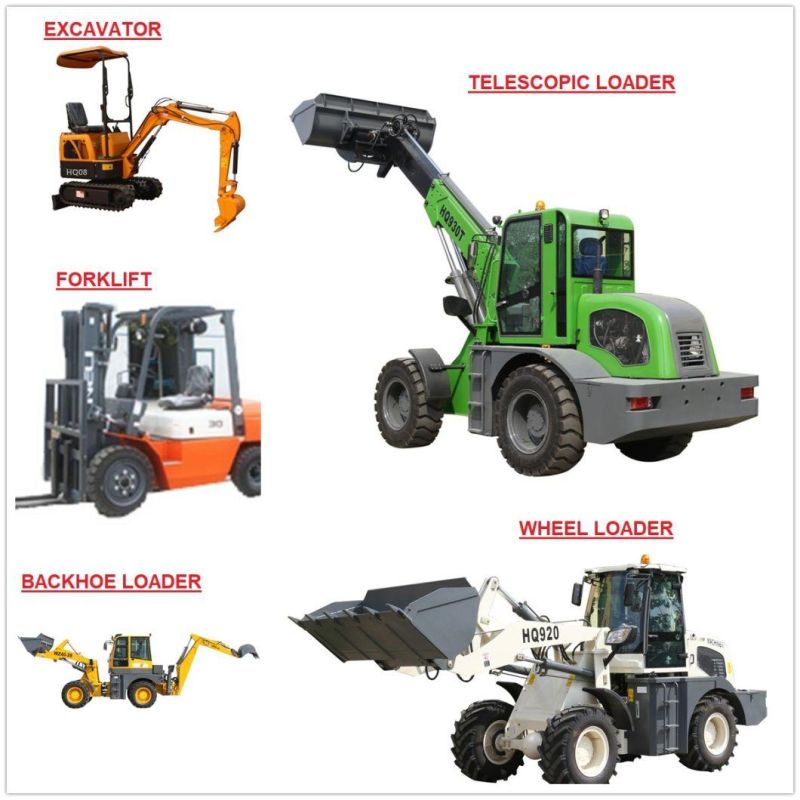

8, MORE PRODUCT CATEGORIES

Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader
Haiqin Brand New Designed (HQ915) with CE Manitou Mini Loader

9, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
