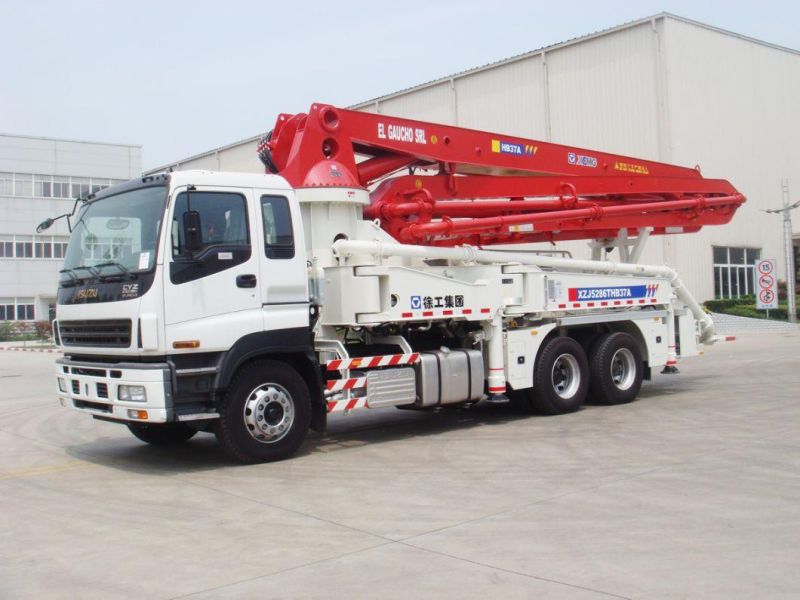

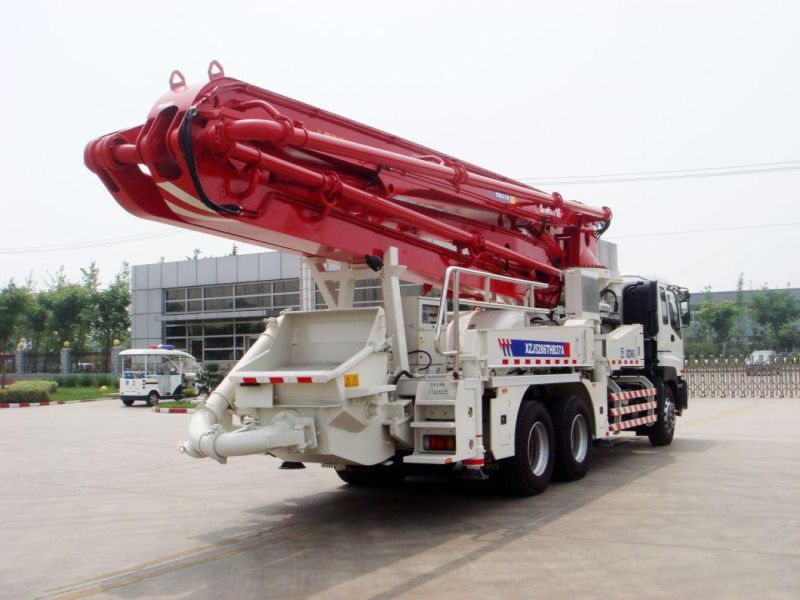

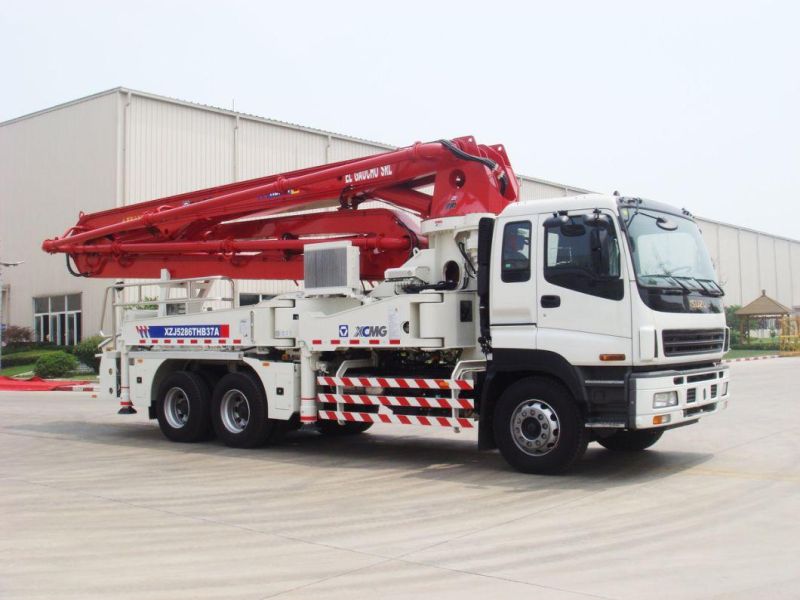

High Power 37m Concrete Pump Truck with Large Capacity

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：1 Year Warranty
  • Warranty：1 Year Warranty
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Cylinder Type

Base Info

  • Model NO.：HB37A
  • Productivity：180m²,h
  • Feeding Height：1400mm
  • Vibrating Amplitude：2.6mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Orange
  • Max. Speed：90km
  • Min. Turning Diameter：18.4m
  • Brake Distance：7m
  • Max. Grade-Ability：38%
  • Transport Package：Standard Shipment
  • Specification：37m
  • Trademark：Newindu
  • Origin：Jiangsu, China
  • HS Code：8429521200
  • Production Capacity：800,Month

Description

No.ItemUnitParameter1Max. speedkm902Min. turning diameterm18.43Brake distancem74Approach angle°315Departure angle°126Chassis model CXZ51Q ( Japan )7Total weightkg2815081st axle loadkg678092nd, 3rd axle loadkg2122010Engine model 6WF111Max. Engine powerkW28712Max. Engine torqueN.m186213Max. grade-ability%3814Fuel consumption limitL/100km3415Outline dimensions (Length´ Width ´Height)mm11990´2490´3900


Technical Data for Pumping Operation

No.ItemUnitParameter1Theoretical outputm3/h138/902Max. delivery pressureMPa8.7/133Reach heightm37.44Reach depthm23.75Front outrigger transverse spanmm72806Rear outrigger transverse spanmm66007Outrigger longitudinal spanmm68608Delivery pipe diametermm1259Remote control distancem10010Placing boom slewing range°370High Power 37m Concrete Pump Truck with Large Capacity
