Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Type：Wheel Loader
  • Usage：Earth Moving,Building, Construction
  • Bucket：Shovel
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：HQ936
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：>1.5m³
  • Size：Large-Scale
  • Certification：CE, ISO9001: 2000, CE, SGS,Rops&Fops
  • Condition：New
  • Engine：Cummins
  • Transport Package：1 Unit in One Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Specifications Bucket capacity1.7m 3 Rated load3000kg Transportation dimension(L*W*H)7050mm*2430mm*3120mm Wheelbase2760mm Thread1800mm Max. Breakout,force138KN Max. Dumping height3250mm Dump distance1200mm Total time11s Operating weight9600kg2Engine Engine Brand and Model DEUTZ  WP6G125E22/  YC6B125-T10 Patternpressurization/inline/water-cooled/4-stroke/direct injection Rated power/speed92KW/2200rpm Max. Torque860N.m Normal fuel consumption162g/kW.h Total displacement6L3Torque converter and transmission system Pattern3-element single stage TransmissionFull-power shift,counter shaft type Number of gear4 forward,2 reverse Max. travel speed40KM/H4Axle  Main reducer PatternArc taper gear model ration of first grade Pattern of wheelside moderation 5Tire Size17.5-256Steering system PatternArticulated and hydraulic steering Min. Turning radius5700mm Max. turning angle37 0 ±1 07Hydraulic system Displacement100ml/r System working pressure27.5Mpa8Brake system Service brakeAir assisted oil disc on four wheel Parking brakeSoft axle control,outside bunch drum type

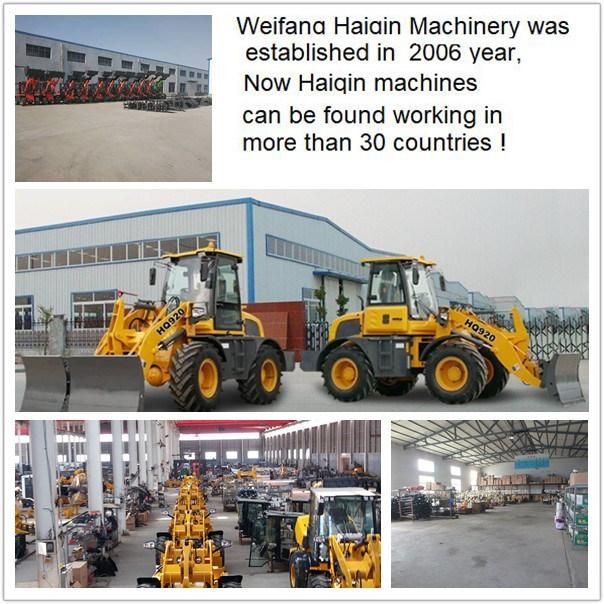

4,Factory introduction of Haiqin Machinery

Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader

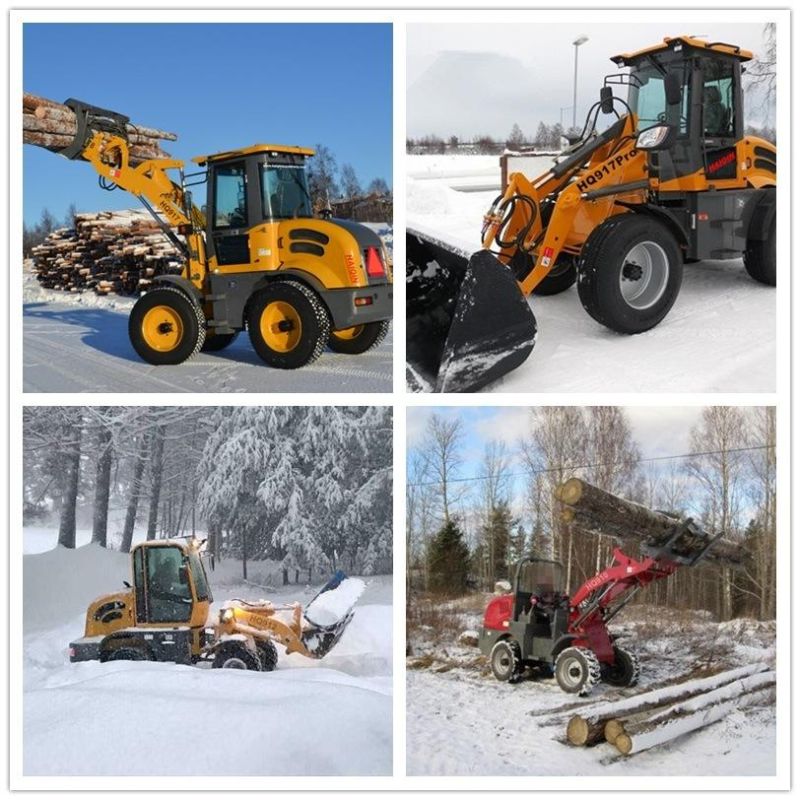

5, Working Case in the foreign countries of Haiqin Machinery' Loaders.

Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader

6,Certificate of Haiqin Machinery

Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader

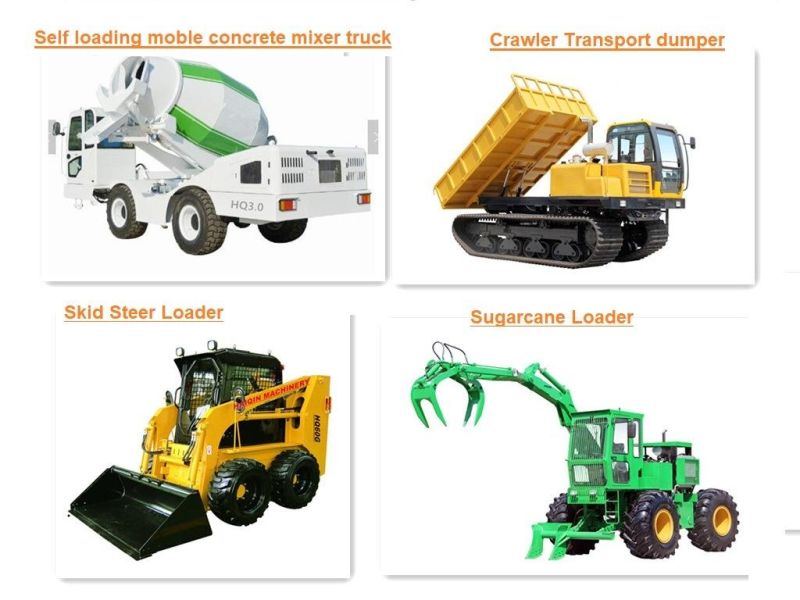

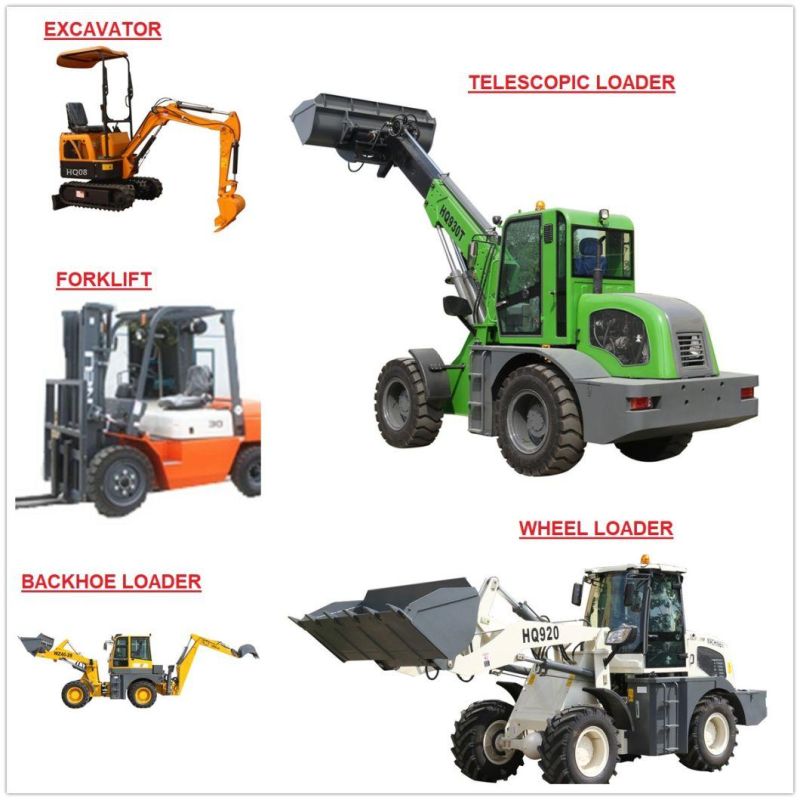

7,MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY


Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader
Strong Multi-Function (HQ936) with CE 3.0 Ton Wheel Loader



8,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.
