28 Ton Forklift Front End Loader Made in China

XIAMEN LTMG CO., LTD.
  • Warranty：1 Year , 2000 Working Hours
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Load：28 T
  • Transmission：Hydraulic - Mechanical Transmission
  • Load and Unload Mode：Front Discharge

Base Info

  • Model NO.：LT28T
  • Walking Mode：Wheeled
  • Type：Large Loader
  • Operating Weight：31 T
  • Max. Lifting Height：3600
  • Fork Size：1500mm*250mm*120mm
  • Wheelbase：4200mm
  • Engine：Cum-Mins,Weichai
  • Rated Power：199kw,2200rpm
  • Turning Angle：33
  • Color：Yellow
  • Brand：Ltmg
  • Transport Package：in Nude
  • Specification：9850mm*3130mm*3680mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84295100
  • Production Capacity：500sets,Year

Description

Model LT28T Operating weight  31,000 kg Rated engine power Weichai  WD10G270E21
199KW engineRated rotate speed 2200r/ninMax.torque 920N.mMax.dumping height 28tons @3600mm height,
30tons @1600mm height Rated load 28TTransmissionBeilian transmissionNO.of shifts Forward 4 For Reverse 2Forward 10-7.2km/hForward 20-14km/hForward 30-27km/hForward 40-41km/hReverse 10-7.2km/hReverse 20-14km/hGrade ability ≥25°Turning angle ±33°Overall length 9850mmOverall width 3130mmOverall height 3680mmWheel base 4200mmTrack base 2830mmdimension of fork 1500*mm250*mm120mmTire type Front tire: 26.5R25  rear tire 26.5-25



Product Features

1.Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
2.The exclusive dust-proof layer and sealed articulated points make the loader more durable.
3.Cabin with broad view. Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
4.To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

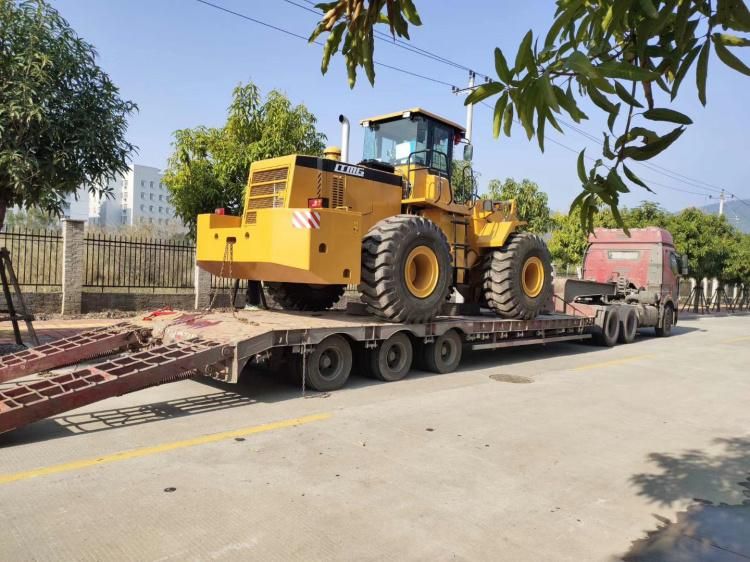

Packing&Shipping
28 Ton Forklift Front End Loader Made in China

Factory
28 Ton Forklift Front End Loader Made in China
Customer & Exhibition

28 Ton Forklift Front End Loader Made in China


After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
