• Model NO.：W136
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Wheel Loader：Earth-Moving Construction Machine
• Loading Bucket Capacity：1.8-2.2m3
• Operation Weight：10500kg
• Loader Engine Brand：Cummins or Weichai Deutz
• Gearbox：Zl50 Planet Type with Converter
• Service Brake：Air Active Oil, Brake Caliper with Disc
• Tyre Size：17.5-25
• Loader Hydraulic Cycle Time：Less Than 10.2s
• Engine Power：130HP
• Optional Accessories：Pallet Fork, Grapple, Quick Hitch
• Transport Package：1 Unit 3ton Wheel Loader Per 40hq Container
• Specification：6970x2460x3286mm
• Trademark：WORLD
• Origin：China
• HS Code：84295100
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. W136 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Wheel Loader Earth-Moving Construction Machine Loading Bucket Capacity 1.8-2.2m3 Operation Weight 10500kg Loader Engine Brand Cummins or Weichai Deutz Gearbox Zl50 Planet Type with Converter Service Brake Air Active Oil, Brake Caliper with Disc Tyre Size 17.5-25 Loader Hydraulic Cycle Time Less Than 10.2s Engine Power 130HP Optional Accessories Pallet Fork, Grapple, Quick Hitch Transport Package 1 Unit 3ton Wheel Loader Per 40hq Container Specification 6970x2460x3286mm Trademark WORLD Origin China HS Code 84295100 Production Capacity 3000PCS/Year

Product Description

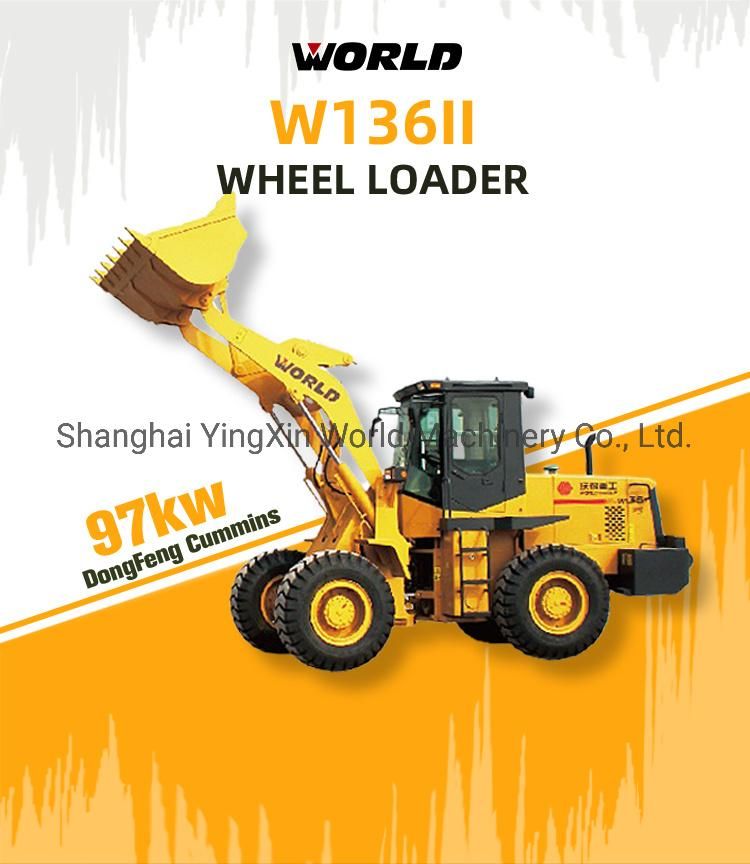

ce approved front shovel loading 3ton wheel loader

Compare to CAT 938g
Cummins engine or Weichai Deutz engine 130hp
Stronger gearbox ZL50 same as 5ton loader
Air conditioned cabin with air seat

A middle size wheel loader, 3ton rated load, 1.8-2.2 cbm bucket size, equip with cummins engine or deutz engine, strong articulated frames, luxiary cabin with air conditioner, one year warranty

Our advantages:
-We produce most of the parts in our own factory, better to control the quality, easier to get parts in the future
-Real warranty for quality: we will provide parts as free within warranty if quality problem
-Long experiences in this market: we started to produce loaders since 2006 and export loaders since 2008.

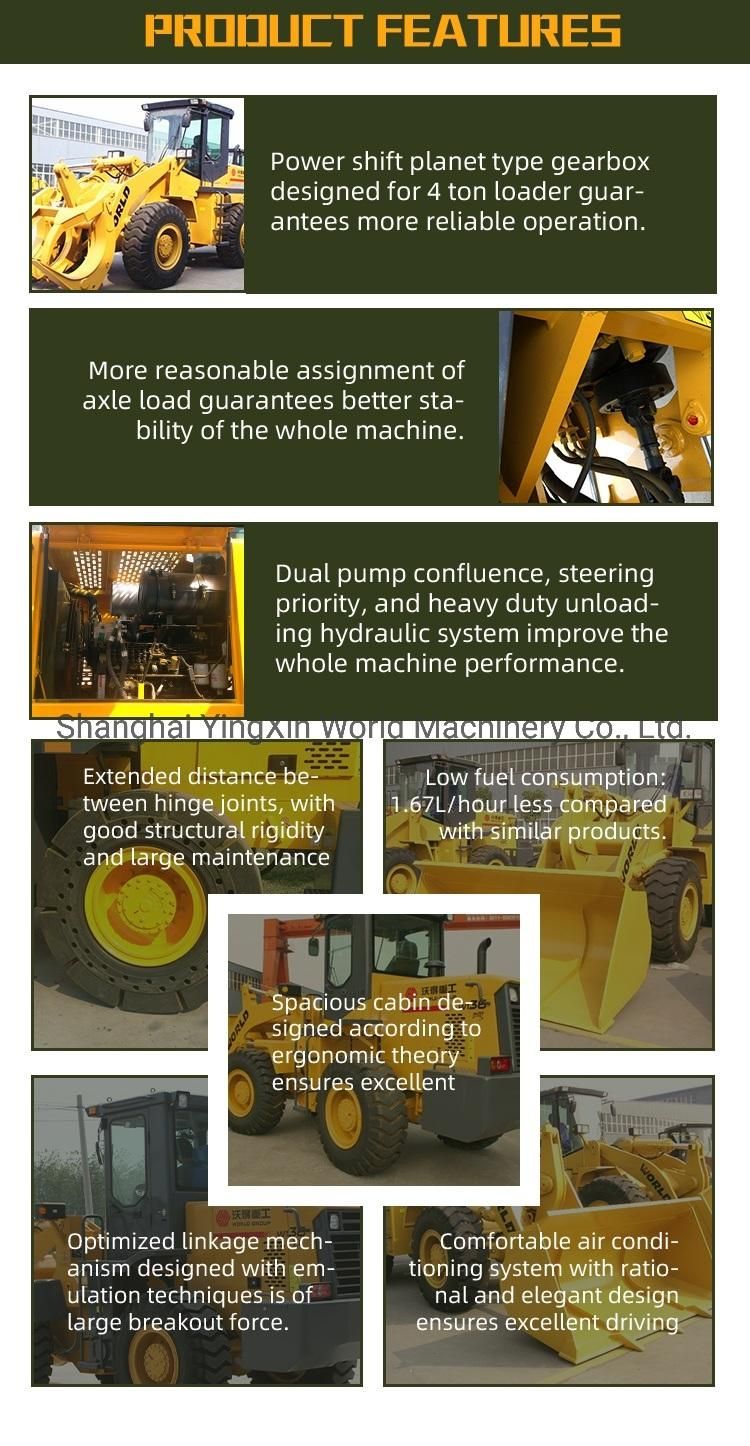

Features of this model 3ton loader:
1) The wheel loader uses Dongfeng Cummins engine with less oil consumption, low noise and small emissions.
2) Transmission and torque converter of 5 ton wheel loader are of good applicability.
3) Optimally designed working device and frames of wheel loader are stronger and more durable.
4) Heavy duty unloading hydraulic system improves the whole wheel loader performance.
5) The wheel loader uses best hydraulic cylinders, pumps and valve.

Details:

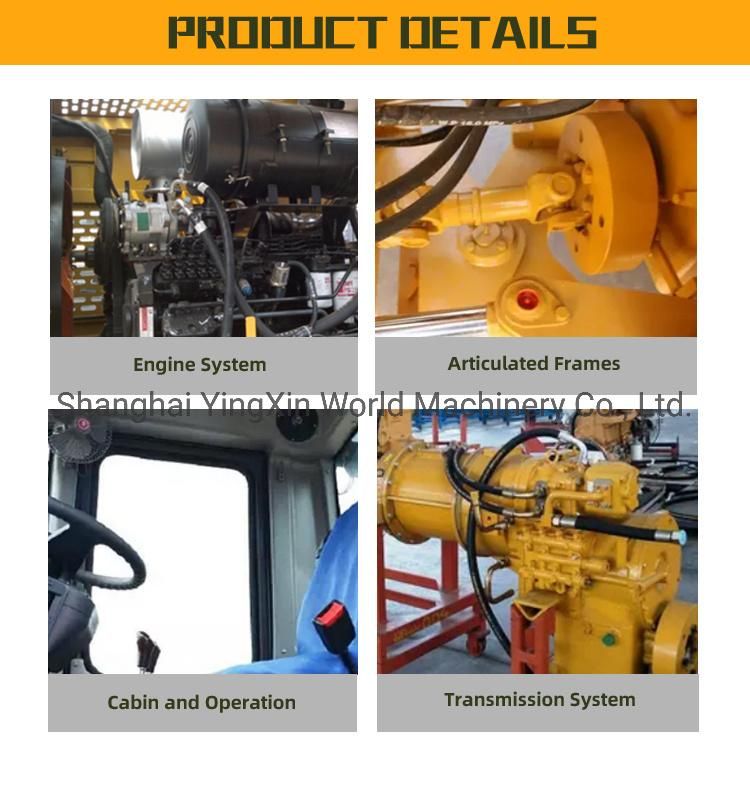

1) Cummins engine, 130HP, 6 cylinders, 4 strokes, water cooling, turbocharged, global warranty. ZL50 planetary type gearbox with hydraulic converter, 2 forward and 1 reverse speeds, same as 5ton wheel loader, stronger for heavy duty. Hydraulic power shift. Strong axles with caliper type service brake.
2) The robotically welded two-piece structural frame design provides a rugged and reliable foundation for the machine that improves stability, performance, and serviceability. A robust articulating hitch system joins the front and rear frames improving durability. Enhanced line routings across the hitch joint streamline the manufacturing process and improve reliability and durability.
3) Strong structural parts are all produced by WORLD. All the parts are high quality welded. The ball blasting and vibration treatment can release the welding stress. UT (Ultrasonic Testing) to inspect the welding defect. It will form a lot of small pits on the surface after blasting and it will improve the paint adhesion.
4)  The strong axle uses a main reducer and two hub reducers which are connected by two shafts. The main reducer uses bevel gears and the hub reducer uses planet gears. Dry type caliper brake uses a brake shoe with a brake disc. It is better for maintenance and radiation.
5) The radiating area of the high quality radiator is added for better radiation. The temperature of the engine and the transmission can be controlled under the temperature limits. It extends the service life both of the engine and the transmission. And it reduces the oil leak of the hoses and meanwhile the service life of hoses is extended too.
6)  Luxury cabin is equipped both air conditioner and electric fan. Radio with SD card interface is standard. The spacious cabin ensures the comfortable operation and rest environment for the operators.
7) Single lever joystick control is optional. The joystick can be moved forward and back to control the boom lifting and down. The joystick can be moved left and right to control the bucket dumping and loading. It is easy for operation and the efficiency is much higher than the two lever control system.
8) The steering wheel position can be a little adjusted. The instrument panel consists the meter of water temperature, the meter of oil temperature, the meter of fuel level, the meter of air pressure and the counter of working hours. The switches for lights are combined in the panel too.


Optonal attachments
-coal bucket
-rock bucket
-quick change hitch
-wood grapple
-grass grapple
-pallet fork

Loading and package
-one unit per 40HQ container or 2 units in a 40HQ and a 20GP containers
-disassembling cabin and bucket
-cabin in a steel frame
-main body drived into container directly
-fixed with professional steel ropes

Warranty and servce:
1) One year warranty for whole machine.
2) All spare parts are available as we produce most of the parts in our factory.
3) We can provide technical support via mail, phone, video or sending engineers there.
4) English operation and maintenance manul and parts list are shipped with the loaders.

Our products range:

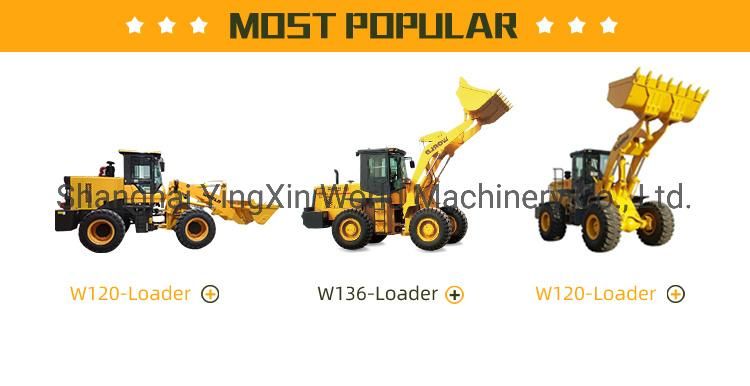

We produce wheel loaders with bucket capacity from 1.8m3 to 3m3.
We also produce excavators from 1.8ton to 42ton.
All machines are CE certificated.

Specifications: Construction machinery 3ton front Wheel Loader

Basic Data	Construction machinery mini front end Small Wheel Loader
Bucket capacity	1.8 m³
Rated load	3200 kg
Operation weight	12440 kg
Dumping height	3060 mm
Dumping reach	1008 mm
Breakout force	97 kN
Traction force	100 kN
Wheel base	2750 mm
Total hydraulic cycle time	10.3 s
Full bucket lifting time	5.6 s
Min. turning radius	5376 mm
Overall dimension(L×W×H)	6970×2450×3228 mm
Engine
Model	CUMMINS 6BT5.9-C130
Rated power	97 kw
Rated speed	2200 rpm
Max. torque	560 N.m
Fuel consumption	225 g/kw.h
Transmission System
Gear box type	planetary hydraulic shift
Forward speed I	12 km/h
Forward speed II	40 km/h
Reverse speed	17 km/h
Torque converter type	single stage 4 elements
Axle type	four-wheel drive
Tire size	17.5-25-12PR
