• Model NO.：Clg922E
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Model：Clg922e
• Operating Weight：22000 Kg
• Engine：Cummins Diesel Engine
• Gross Power：112 Kw
• Peak Torque：614n.M
• Maximum Dig Height：9540 mm
• Maximum Dig Depth：6615 mm
• Emission Regulation：Tire 2
• Rated Speed：2.9-4.9 Km,H
• Transport Package：Nude Package
• Specification：ISO, CE, GOST
• Trademark：Liugong
• Origin：China(Mainland), Guangxi
• HS Code：84295212
• Production Capacity：1500 Units, Year

Operating Weight22,000 kgBucket Capacity0.73-1.2 m³EngineCummins B5.9Gross Power112 kW (150.2 hp) @ 1,950 rpmNet Power102 kW (136.8 hp) @ 1,950 rpmPeak Torque614 N·m @ 1,500 rpmTravel SpeedHigh:4.9 km/h
Low: 2.9 km/hDrawbar Pull195 kNSwing Speed12 rpmArm Breakout Force, max, ISO103 kNBucket Breakout Force, max, ISO159 kNMaximum Dig Depth6,615 mmReach at Ground Level9,705 mmDepth of 8' Level Bottom6,410 mmMaximum Dig Height9,540 mmDump Height6,770 mmMaximum Dig Depth of Vertical Wall5,655 mmOverall Lenth9,690 mmOverall Width2,990 mmOverall Height3,100 mm

World Class Componentse
The CLG922e uses major components and systems form advanced suppliers and advanced in-house technology from LiuGong.

Parts, Service and Attachments to Count On
Part of a reliable excavators is having parts, service and attachments so reliable you can count on them whenever, wherever. Genuine LiuGong parts are the perfect match to keep your investment working over the years and can be counted on when you need. Service is reliable and can be counted on to keep your excavators up and running. Attachments for the machine
have been made in-house and are part of a complete LiuGong system.

Standard reinforced bucket
Reinforced idler linkage for the toughest jobs
Rock guard plates with vertical reinforcement strips protect the arm.
Reliable lower frame

Wider More Stable Axles
The CLG922e has an improved center of gravity thanks to wider more stable axles, this makes operation easier, more reliable and safer.

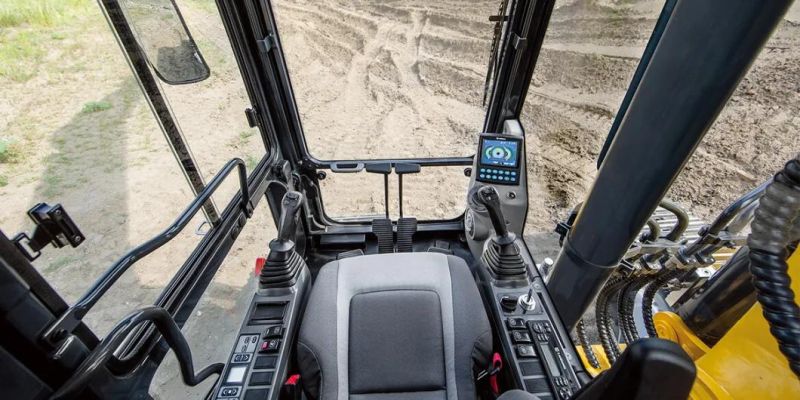

Ergonomic Design
This is one of LiuGong's many ergonomically designed machines, placement of the buttons, levers, seat, and layout of the operator environment is designed to fit the body of the operator.
The pilot lock handle on the handrail box prevents unexpected movement since it locks the machines ignition system. Soft, flexible, pilot control operating handles are convenient and comfortable for long operating hours. Large, swing design foot pedals are comfortable and allow the operator to keep their feet on the foot rest and still operator the machine. Easy to clean, form fitted, floor mat is more functional and durable. High-back suspension seat is adjustable for all operator weights and heights. High-powered air conditioner and efficient arrangement of air outlets combine for great operator comfort-even when the front window is open.

Minimal Kick Back
During operation and swinging the kick back is minimalized not only to improve control and operator comfort but also to reduce damage to the machine. Comfortable, Low Noise Cabin
The spacious climate controlled cab is built with advanced sound reducing technology for both outside the cab and at the operator's ear.

Excellent Visibility
The enlarged cab allows gives the operator excellent 360 degree visibility including the working instruments, and the rear of the machine. This makes operation easier and much safer.
