Engineering & Construction Machinery

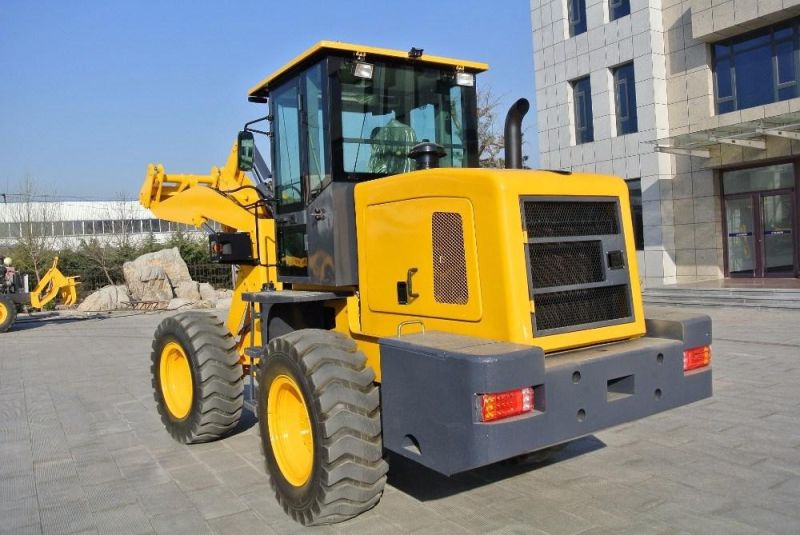

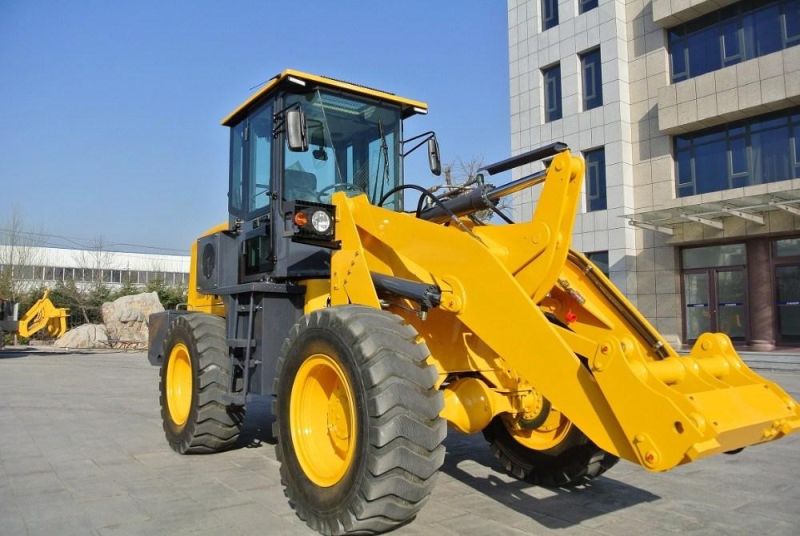

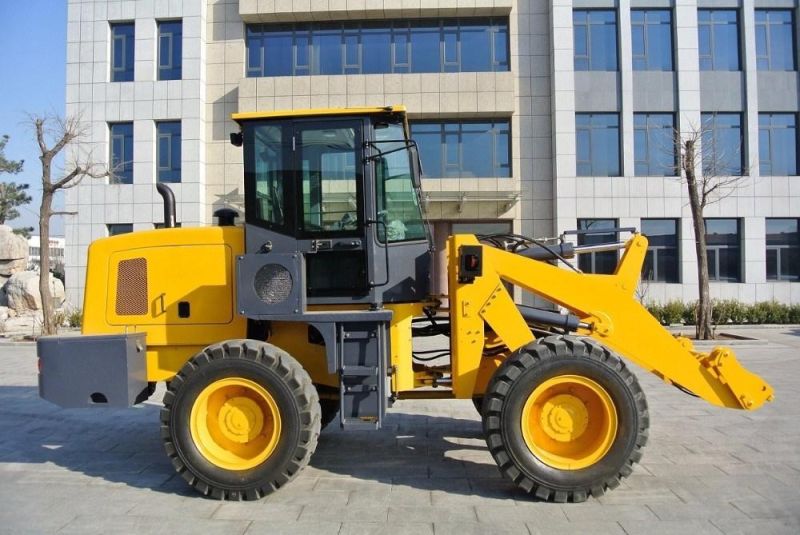

China Pala Cargadora Gem938 2.8ton Cargador Frontal

Shandong Oujin Engineering Machinery Co., Ltd.
  • Certification:TUV, ISO, CE
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Hydraulic - Mechanical
  • Load and Unload Mode:Front Discharge
  • Walking Mode:Wheeled

Base Info

  • Model NO.:938
  • Type:Medium-sized Loader
  • Bucket Capacity:1-1.7cbm
  • Dumping Height:3430mm
  • Dumping Reach:740mm
  • Max Traction:65kn
  • Max Break out Force:65kn
  • Minimum Turning Radius(Bucket Outside):4600mm
  • Lifting Time:4.87s
  • Operating Weight:6500kg
  • Rated Loading Weight:2800kg
  • Transport Package:2units Loaded in 1*40hc
  • Specification:6240*2200*2920
  • Trademark:EOUGEM
  • Origin:China Shandong
  • HS Code:8429510000
  • Production Capacity:3000sets in Year

Description

Engine modelweichai deutz wp6G125E22Rated power92kwRated speed2200r/minmax gradeability30max speed35km/hmin ground clearance390mmtransmisssiondead axle constant mesh power shiftdimension6240*2200*2920tire16/90-24
  1. Hard Mn alloy steel Q345B was used for 80% chassis.
  2. 2.8ton Max loading capacity with 3.4m lifting height

  3. Chinese famous brand WEICHAI engine

    4)Automatic transmission control

    5)Four wheel drive, Oscillating gear axles

    6)Four wheel hydraulic spread-shoe brake

    7Famous brand Camel battery with Big AH

    8) 16/90/24 tires

    9) warm Cabin with luxury seat, Adjustable steering wheel, Heater.China Pala Cargadora Gem938 2.8ton Cargador Frontal
    China Pala Cargadora Gem938 2.8ton Cargador Frontal
    China Pala Cargadora Gem938 2.8ton Cargador Frontal

    Our advantage:
    1.Different parts of the corresponding international plate, the vehicle parts do a tough steel is not easy to deform. Structural parts derusting surface adopts the advanced blast cleaning equipment, cleaning effect is obvious, the component will never rust.
    2.Vehicle sheet metal parts using the international advanced 1.5-2.75 cold rolled plate production, the surface is smooth, not deformation.Sheet metal primer using electrophoretic method of paint, so that parts will never rust.
    3.Use of copper composite, strong wear resistance. The pin shaft grinder using high frequency quenching processing, convenient installation, strong wear resistance.
    4.By sheet metal forming, the driving cab hood has the features of high transparency, anticorrosion and the color won't wear out; with the international ultraviolet-proof all-steel cab of forming glass adopted, the driving cab is equipped with humanized adjustable seat, scuttle, making your vision broader and your driving safer; all those make the operation easy, natural and accurate, and relieve your fatigue as well.
    5.Optimally designed by the computer, the bucket realizes huge spading force, with single dump cylinder and the "Z" shape turning structure.
    6.Due to the overall frame stiffening, top and bottom hinge joint with knuckle bearing, there'll be convenient operation and less vibration; the frame is even more stable in harsh working environment, and the safety factor is greatly raised.








    China Pala Cargadora Gem938 2.8ton Cargador Frontal
    China Pala Cargadora Gem938 2.8ton Cargador Frontal
    China Pala Cargadora Gem938 2.8ton Cargador Frontal
