• Model NO.：GEM650
• Type：Large Loader
• Bucket Capacity：3cbm
• Rated Loading：5000kg
• Operating Weight：16000kg
• Engine Model：Weichai,Cummins Caterpillar
• Engine Power：162kw
• Wheel Base：3300mm
• Dumping Reach：1267mm
• Dumping Height：3200mm
• Maximum Traction：172kn
• Transport Package：One Unit in One 40 High Container
• Specification：5TON wheel loader
• Trademark：EOUGEM
• Origin：China
• HS Code：8429510000
• Production Capacity：2000units,Year

Basic Info.

Model NO. GEM650 Type Large Loader Bucket Capacity 3cbm Rated Loading 5000kg Operating Weight 16000kg Engine Model Weichai,Cummins Caterpillar Engine Power 162kw Wheel Base 3300mm Dumping Reach 1267mm Dumping Height 3200mm Maximum Traction 172kn Transport Package One Unit in One 40 High Container Specification 5TON wheel loader Trademark EOUGEM Origin China HS Code 8429510000 Production Capacity 2000units/Year

Product Description

High quality 5ton front loader with good price supplier

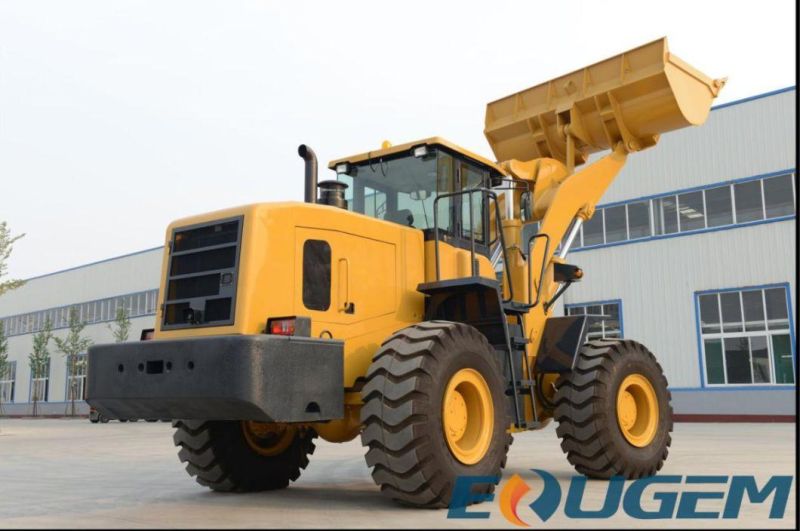

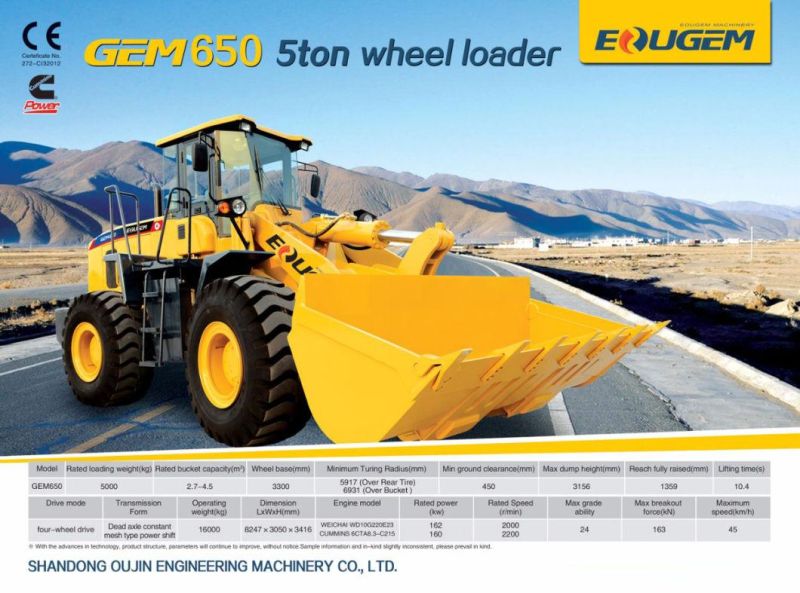

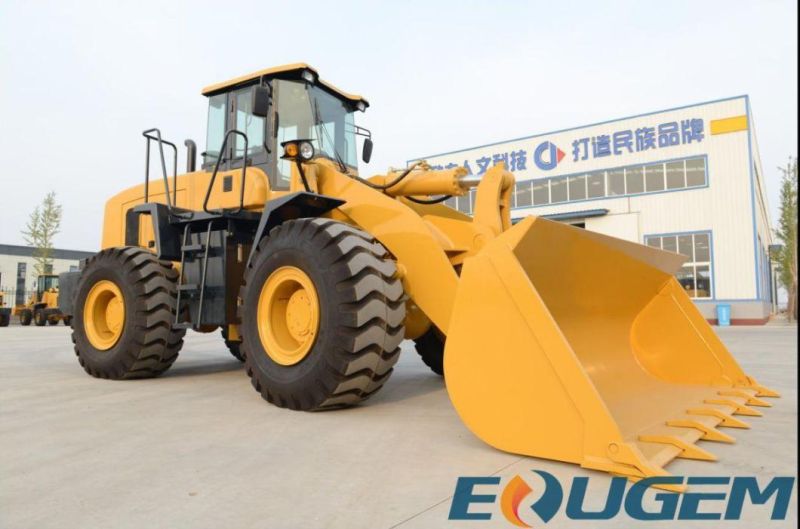

Wheel loader --- GEM650
1. Heavy duty, powerful
2. Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance
3. Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation
4. Bucket can be leveled automatically, optimized working device, higher productivity
5. Comfortable operation environment, new design cabin, Grammar seat, air-conditioner at option
6. Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs

Rated capacity	3m³
Rated      weight	5000Kg
Operating weight	16000Kg
Max. breakout force	172KN
Total time	11s
Max. dump height	3200mm
Dump distance	1267mm
Wheel base	3300mm
Thread	2250mm
Transportation	8247*3068*3409mm


  Engine

Model of engine	WEICHAI STEYR WD12G220E22/CUMMINS 6CTA8.3-C215
Pattern	Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power	162KW
Specified rotational speed	2100r/min
Max. torque	860N. m
Min. fuel consuming rate	126g/kw. h
Total displacement	9.726L
Fuel	0# or 10#diesel oil


  Torque converter and transmission system

Model of torque device
Pattern	3-element, single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward, 1 reverse
Max. travel speed	40km/h
Axle	XUZHOU
Main reducer type	Arc taper gear, model ration of first    grade
Pattern of wheel side moderation	Single stage planetary


  Tire

Tire size

23.5 - 25

  Steering system

Pattern	Full hydraulic steering system
Min. turning radius(outside of bucket)	7268mm
Max. turning angle	35° ± 1

  Implement hydraulic system

Implement pump	CBGJ2080
Displacement	250L/min
System working pressure	20.3MPa
Distribution device model	DF32
Pilot valve model	DJS

  Brake system

Brake system	Air assisted oil disc on four wheel
Parking  brake	Air cutting control inner expand hoof
