Chinese New Strong Wheel Loader Gem650
Shandong Oujin Engineering Machinery Co., Ltd.- Certification：TUV, ISO, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：GEM650
- Type：Large Loader
- Bucket Capacity：3cbm
- Rated Loading：5000kg
- Operating Weight：16000kg
- Engine Model：Weichai,Cummins Caterpillar
- Engine Power：162kw
- Wheel Base：3300mm
- Dumping Reach：1267mm
- Dumping Height：3200mm
- Maximum Traction：172kn
- Transport Package：One Unit in One 40 High Container
- Specification：5TON wheel loader
- Trademark：EOUGEM
- Origin：China
- HS Code：8429510000
- Production Capacity：2000units,Year
Description
Basic Info.
Model NO. GEM650 Type Large Loader Bucket Capacity 3cbm Rated Loading 5000kg Operating Weight 16000kg Engine Model Weichai,Cummins Caterpillar Engine Power 162kw Wheel Base 3300mm Dumping Reach 1267mm Dumping Height 3200mm Maximum Traction 172kn Transport Package One Unit in One 40 High Container Specification 5TON wheel loader Trademark EOUGEM Origin China HS Code 8429510000 Production Capacity 2000units/YearProduct Description

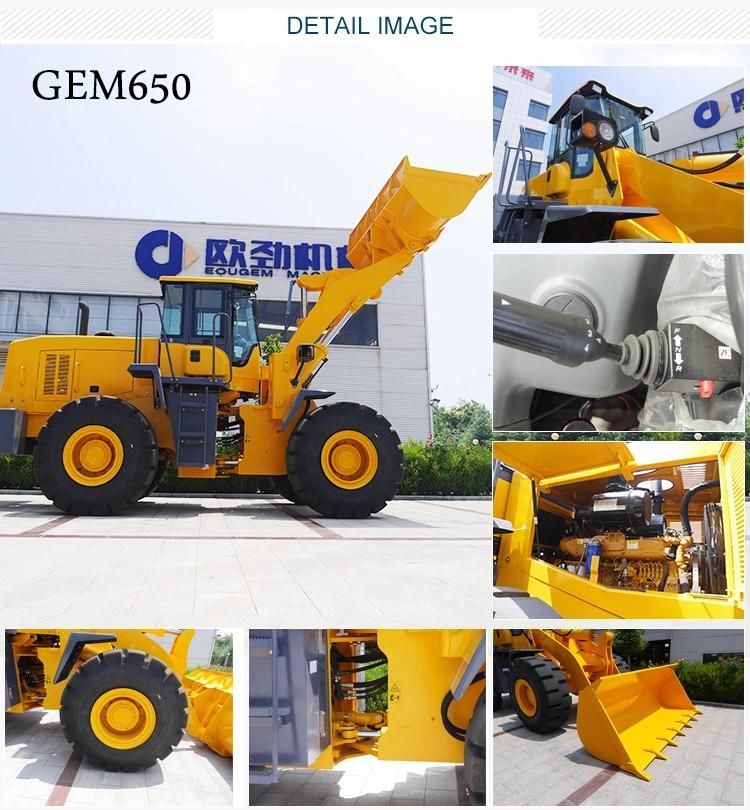

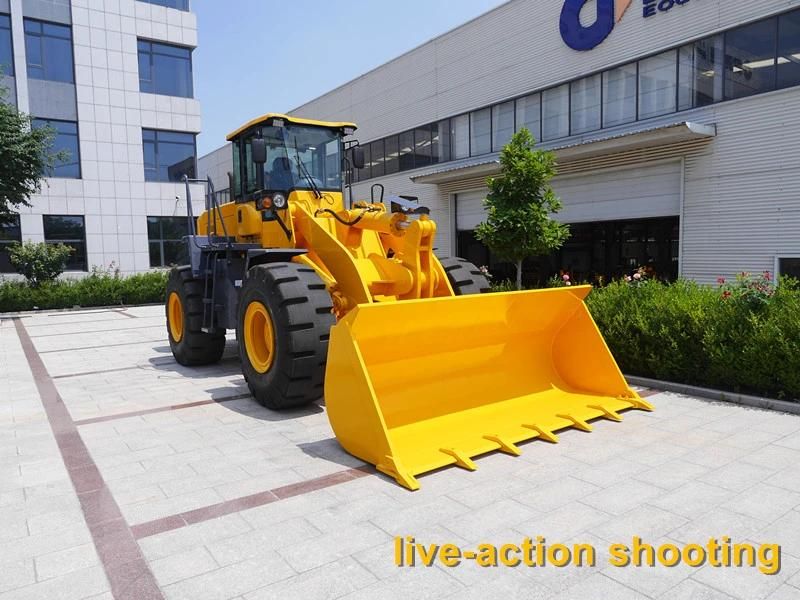

Chinese new strong wheel loader GEM650Wheel loader --- GEM650
1. Heavy duty, powerful
2. Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance
3. Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation
4. Bucket can be leveled automatically, optimized working device, higher productivity
5. Comfortable operation environment, new design cabin, Grammar seat, air-conditioner at option
6. Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs
| Rated capacity | 3m³ |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Max. breakout force | 172KN |
| Total time | 11s |
| Max. dump height | 3200mm |
| Dump distance | 1267mm |
| Wheel base | 3300mm |
| Thread | 2250mm |
| Transportation | 8247*3068*3409mm |

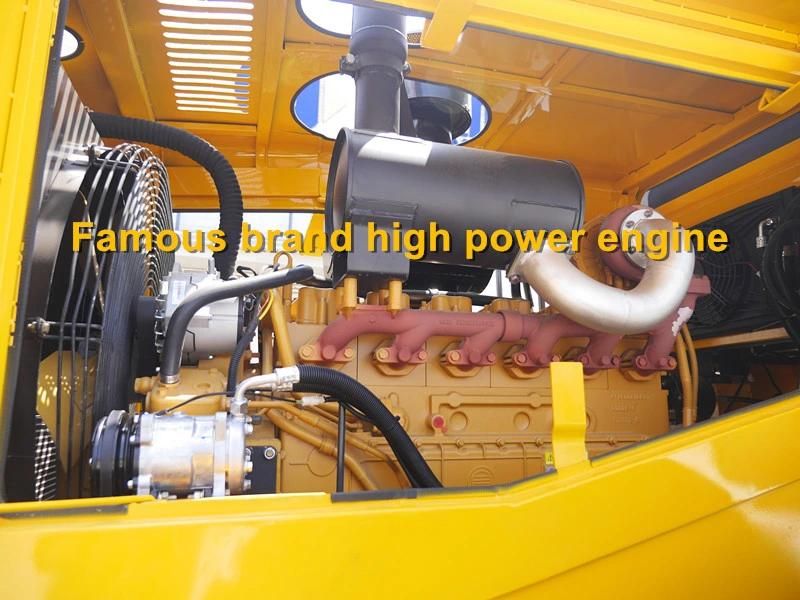

Engine
| Model of engine | WEICHAI STEYR WD12G220E22/CUMMINS 6CTA8.3-C215 |
| Pattern | Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
| Rated power | 162KW |
| Specified rotational speed | 2100r/min |
| Max. torque | 860N. m |
| Min. fuel consuming rate | 126g/kw. h |
| Total displacement | 9.726L |
| Fuel | 0# or 10#diesel oil |
Torque converter and transmission system
| Model of torque device | |
| Pattern | 3-element, single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward, 1 reverse |
| Max. travel speed | 40km/h |
| Axle | XUZHOU |
| Main reducer type | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Single stage planetary |

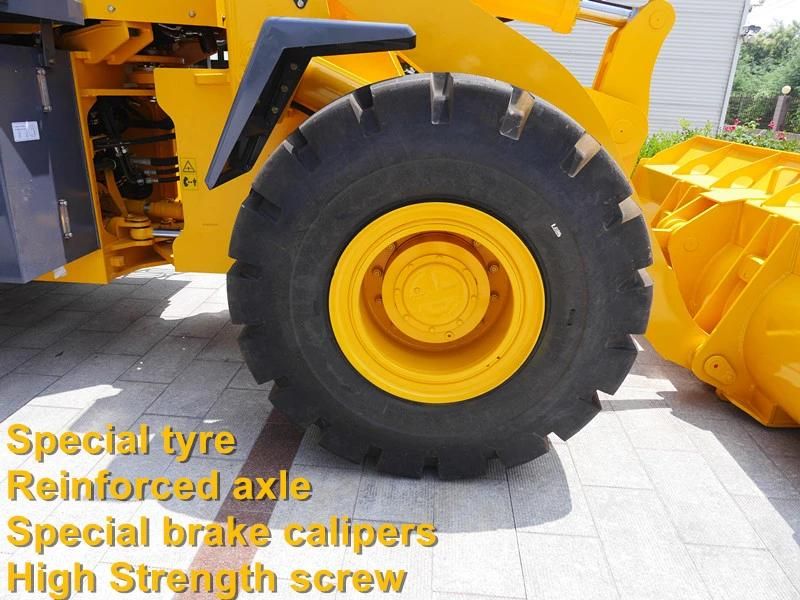

Tire
| Tire size | 23.5 - 25 |
| Pattern | Full hydraulic steering system |
| Min. turning radius(outside of bucket) | 7268mm |
| Max. turning angle | 35° ± 1 |
| Implement pump | CBGJ2080 |
| Displacement | 250L/min |
| System working pressure | 20.3MPa |
| Distribution device model | DF32 |
| Pilot valve model | DJS |
| Brake system | Air assisted oil disc on four wheel |
| Parking brake | Air cutting control inner expand hoof |
