Mobile Hgy13/15/17/21/23 Hydraulic Concrete Spreader
Shanghai Super-Above Industry Holdings Co., Ltd.- Shotcrete Type：Wet
- Machining Process：Welded Molding Machine
Base Info
- Model NO.：HGY15
- Structure：Mobile
- Productivity：60m²,h
- Feeding Height：Zero
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Name：Hydraulic Concrete Placing Boom
- Drive Type：Hydraulic
- Boom Length：15m
- Boom Material：High Pressure Steel
- Control Type：Wireless Remote Control
- Model：Hgy15
- Working Type：Hydraulic Type
- Application：Pouring Concrete
- Using：High Building
- Brand：Zoomlion
- Transport Package：1*40hq
- Specification：Steel
- Trademark：Super above
- Origin：China
- HS Code：84134000
- Production Capacity：300sets,Year
Description

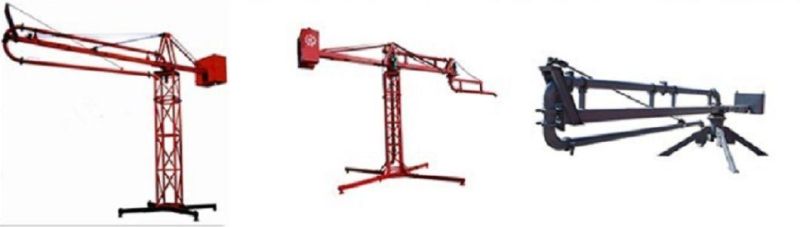

Without WheelWith Wheel Horizontal Reach 13m 15m 17m 15m 17m 23m Rotation 360° Elevation Angle 0-84° 0-89° 0-84° 0-89° 0-90° 0-90° Voltage 380V/50HZ Power 4 4 5.5 4 5.5 22 Boom Open Way 3Z 3R 3R 3R 3R 4M Boom Length(mm) 3700/4520/4780 6000/5000/4000 6670/5720/4610 6000/5000/4000 6670/5720/4610 6740/5089/5089/5812 Corner 84°/210°/180° 89°/180°/180° 90°/180°/240°/200° End Rubber Hose 3m Inner Diameter Φ125mm Without Counterweight 2.7t 3.23t 5t 4.5t 6.0t 8.8t With Counterweight 4.3t 5.43t 7.2t 6.7t 7.5t 10t
Advantages

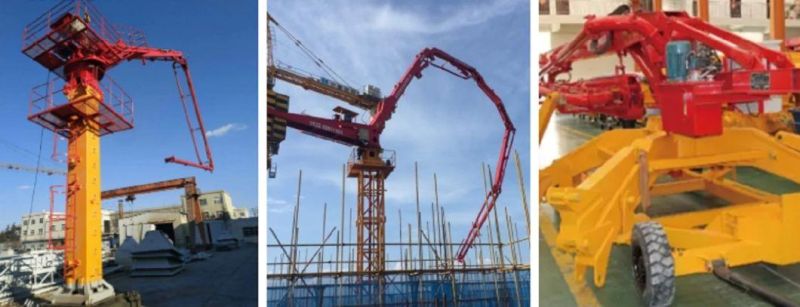

I.Arm structure features
"Z"-shaped three-section folding arm, 360° rotation, pitching and expansion amplitude, all-dimensional casting in the
three-dimensional space within the length of the boom, no casting dead angle, can easily achieve the wall, pipe, column,
Piles and other concrete construction castings.
II. Drive, operation mode
The boom, pitch, and slewing by hydraulically driven. Hydraulic main components such as motors, seals, tubing, contactors
and switches, buttons, etc. are selected for high quality imported or venture brand. The system is equipped with overload
protection, flow control, phase sequence protection and other devices to ensure The overall performance is stable, safe and
reliable. The whole work is controlled by buttons, and the operation is simple and the movement is stable.
III.Practicality
It does not need to be fixed when used, and can be placed flexibly according to the needs of on-site casting;
Compact structure, light weight, lifting the whole machine;
When not in use, it can be lifted from the construction area without affecting other operations, and it is easy to maintain;
A wide range of applications, to meet the casting requirements of various construction surfaces;
Safe, reliable, cost-effective.
