• Model NO.：HR912M
• Mini Loader：Hr912m
• Usage：Special Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Yellow
• Transport Package：Naked
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. HR912M Mini Loader Hr912m Usage Special Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Yellow Transport Package Naked Specification A Trademark CHHCC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

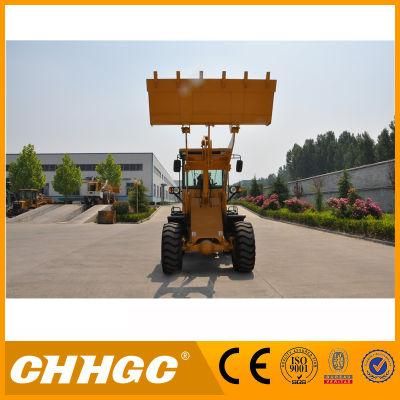

Product Description

Standard Equipment:

Standard Bucket loader, Luxury Cabin loader, Adjustable Steering Wheel loader, Four-wheel drive loader ,Isuzu driving axle ,Radio ,Safety belt ,130W Heater, 220 V Engine Heater, Lock for Lifting and Steering Cylinder, Backward Imagine, Tipping Cabin loader, Mechanical single joystick pilot operation ,Disc-Brake,  Blinking Lamp without Key, and Easy-damaged Spare Parts for loader.

1.0 Engine Details
    (1) Model :                                       Changchai ZN485Q
    (2) Engine type:   In-line arrangement, water cooled, four-cycle diesel Engine
    (3) Rated Power :                                   26KW ( 36 H.P. )
    (4) Rated Speed :                                   2200 r/min(rpm)
    (5) Fuel Consumption ratio in standard working condition :    269g/kw.h
2.0 Steering System
    (1) Cycloid full hydraulic steering system :                    BZZ-125
    (2) System Pressure                  :                       10MPa
    (3) Steering Cylinder                 :                Φ76x Φ63x180
    (4) Speed

3.0 BUCKET
    (1) Bucket Capacity     :                                    0.6m³
    (2) Bucket width       :                                    1400mm
    (3) Bucket type        :                        Heavy duty bolt on teeth
    (4) Max. Breakout Force :                                       32KN
    (5) Rated Load        :                                      1000kg
    (6) Operating Weight   :                                      2880kg
4.0 OVERALL DIMENSION
    (1) Overall Length ( Bucket on ground position )  :                4900mm
    (2) Overall Height
            (a) Ground to Cab Top :                              2520mm
            (b) Ground to exhaust pipe :        It is below from the top of cabin
            (c) Dumping Height  :                               2545mm
    (3) Overall Width            :                               1685mm
5.0 OPERATING SPECIFICATIONS
    (1) Drive Means             :                        Four-wheel drive
    (2) Min Turning Radius       :                               4200mm
(3) Driving System           :                             mechanical
(4) Dumping Height          :                               2545mm
(5) Min Base to the ground     :                               240mm
(6) Time of raise             :                               3.05sec.
(7) Hydraulic cycle time       :                                  9sec.
6.0 Brake System
    (1) Service Brake :                Four Wheel Hydraulic spread-shoed brake
    (2) Parking Brake :                                      Hand operated
7.0 Wheelbase :                                               2040mm
8.0 Track :                                                   1320mm
9.0 Machine speed

1. Low speed  (km/h)    4             (2) High speed (km/h)    25

10.Tire:                                                     14/90-16

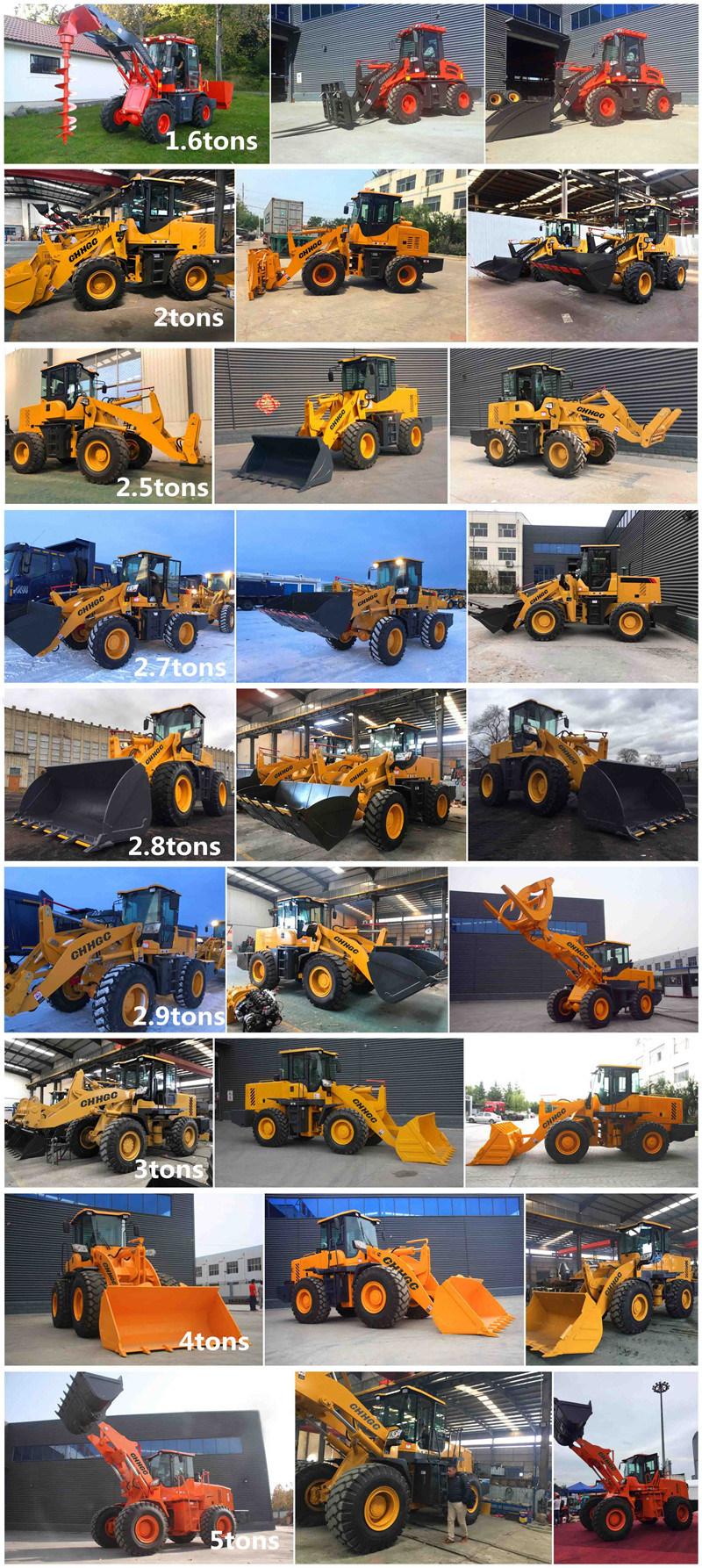

Products series

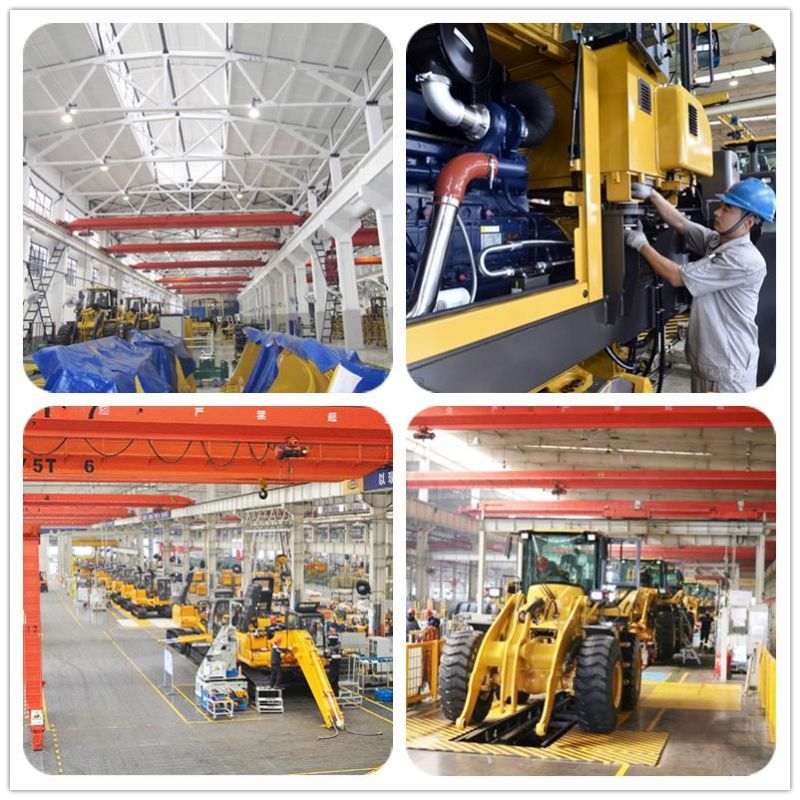

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
