• Model NO.：HR2500
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Yellow
• Transport Package：Naked
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. HR2500 Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Yellow Transport Package Naked Specification A Trademark CHHCC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

1.0 Engine Details
(1) Model: YUNNEI Engine
(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power:55KW
(4) Rated Speed:2400 r/p.min (rpm)
(5)Optional Engine:YTO 4108 engine(60KW) , 4102 Turbocharged(63KW)

2.0 Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles

3.0 Bucket
(1) Bucket Capacity: 1.2m³
(2) Bucket width: 1800mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 2500kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 4900mm
(2) Overall Height:2720mm
(3) Overall Width: 1870mm
(4) Max. lifting Height:4500mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5600mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) European quick coupling system
(5) Joystick control
(6) Self levering

6.0 Brake System
(1) Service Brake:Four wheel drum brake
(2) Parking Brake:Hand operated(Disc brakes)

7.0 Tire

1. Model:23.5/70-16 (2)Width: 390mm(3) Diameter: 920mmOptional Model:16/70-20 wider and bigger tire


8.0 Wheelbase: 2430mm

9.0 Track: 1470mm

10.System pressure:20Mpa; Hydraulic output:96L/min

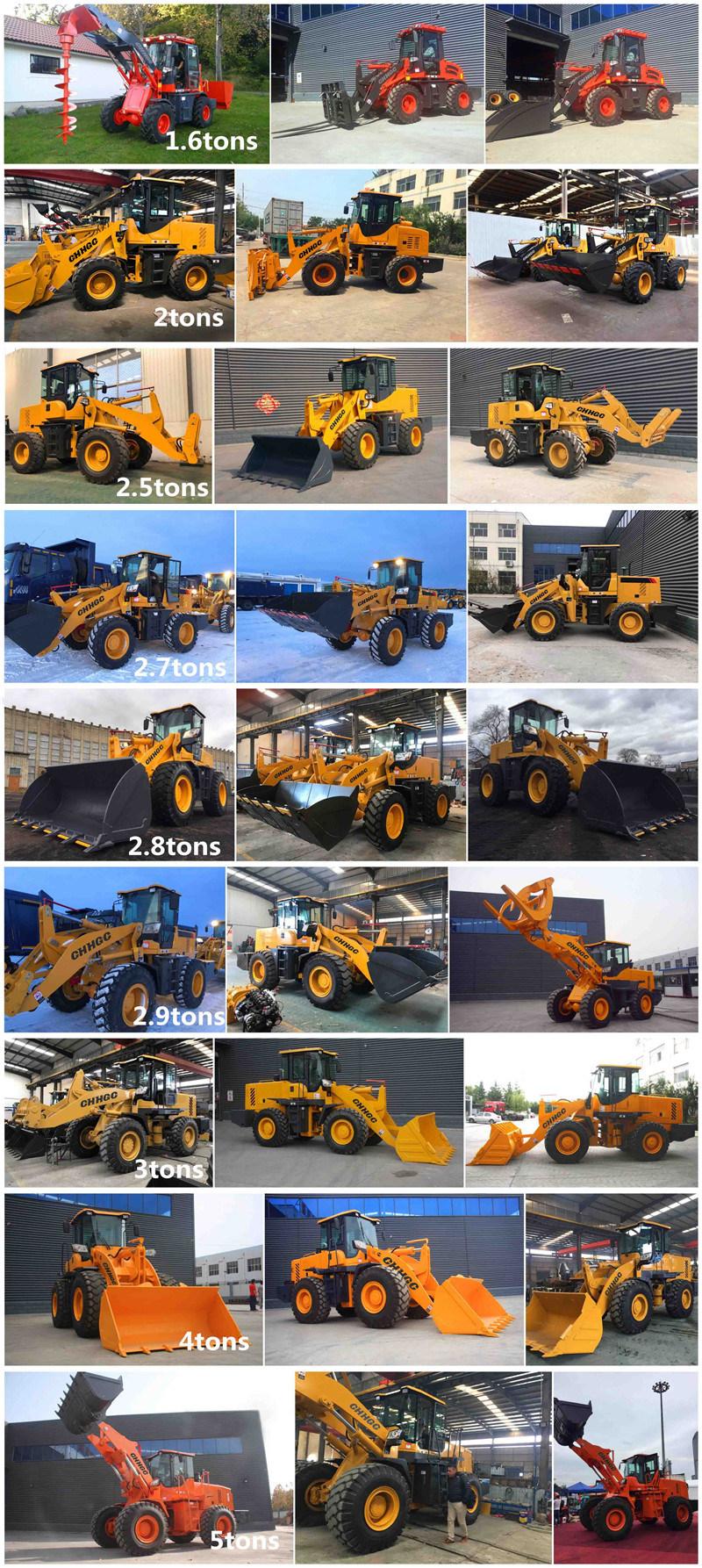

Products series

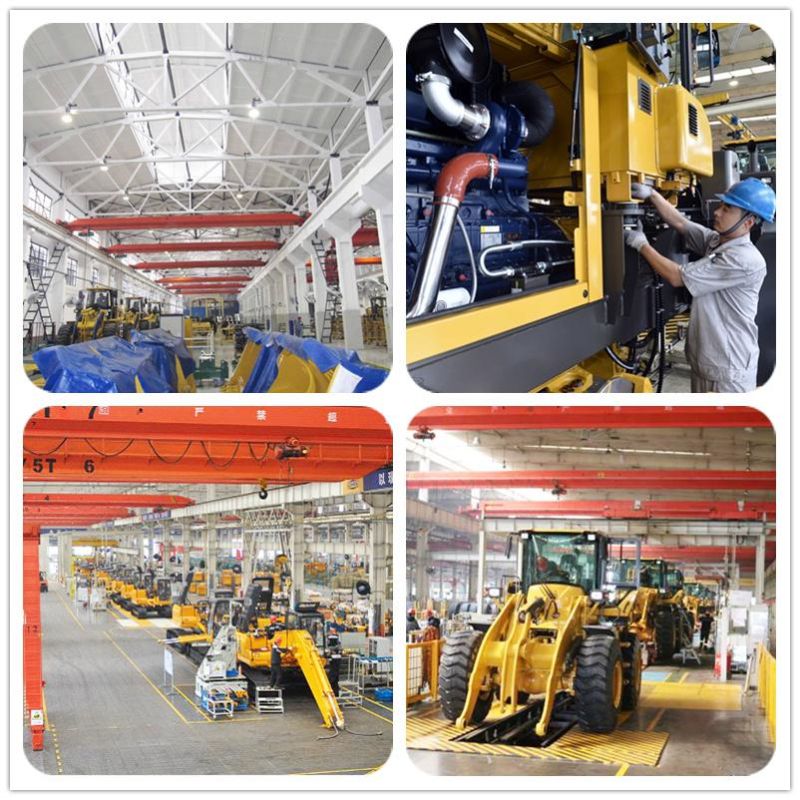

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
