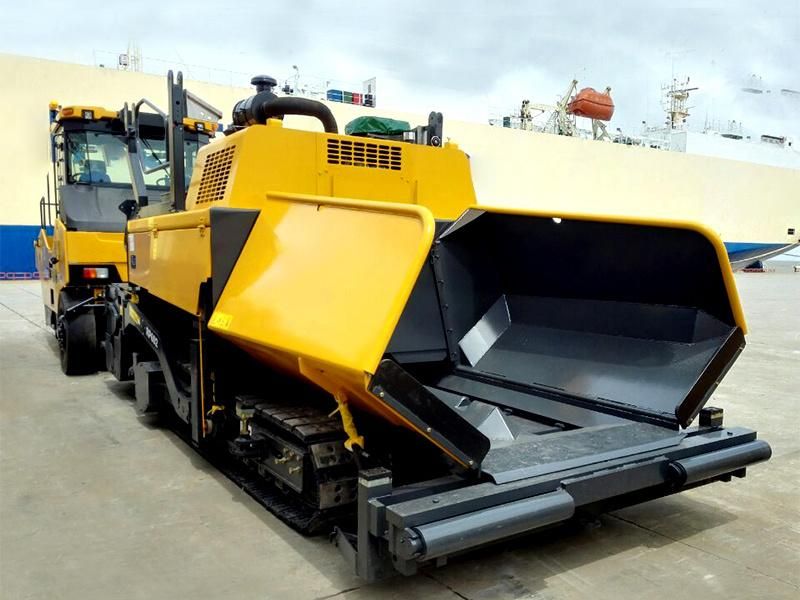

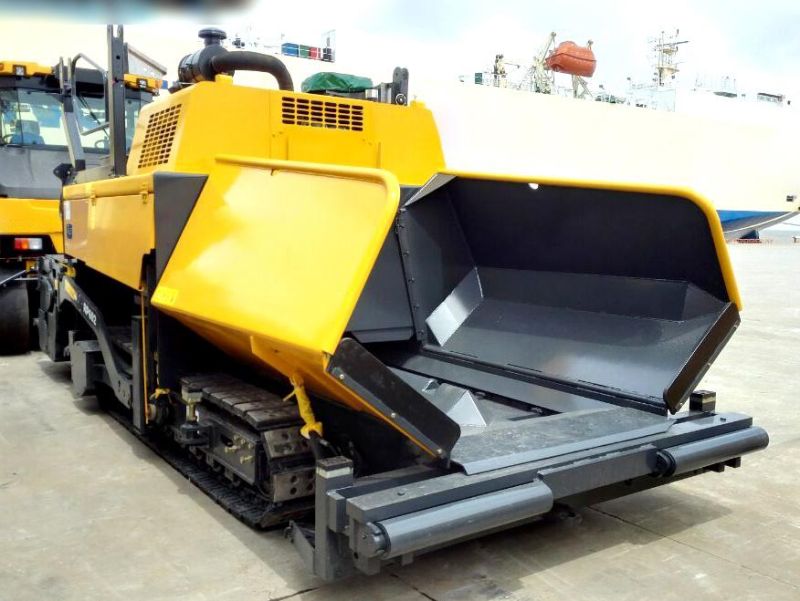

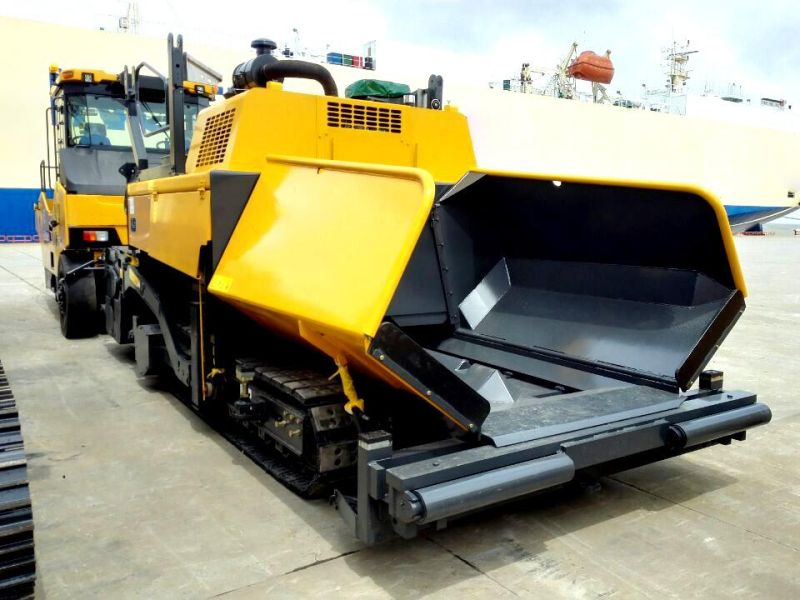

160HP Asphalt Concrete Paver RP602
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：1 Year
- Type：Paver
- Object：Soil Surface
- Moving Type：Mobile
- Mixing Method：Intermittent Compulsory
Base Info
- Model NO.：RP602
- Automatic Grade：Automatic
- Product Capacity：40～400t,h
- Certification：ISO9001: 2000, CE
- Condition：New
- Dimension(L*W*H)：6400*2580*3830 mm
- Maximum Paving Width：6m
- Maximum Paving Thickness：380mm
- Maximum Paving Speed：14m,Min
- Flatness：3mm
- Maximum Travel Speed：3km,H
- Scraper Conveying Speed：0~32m,Min
- Spiral Feeding Speed：0~82r,Min
- Spiral Diameter：420,360mm
- Basic Width：2.5m
- Vibration Stroke：4mm
- Vibration Speed：0~1500r,Min
- Hopper Density：13t
- Hopper Width：3275mm
- Hopper Length：2037mm
- Transport Package：Nude Packing
- Specification：6230*2500*3855mm
- Trademark：Asphalt Concrete Paver
- Origin：Jiangsu, China
- HS Code：8479102100
- Production Capacity：1000 Unit,Units Per Month
Description
Product OverviewProduct Paramenters
Product Configuration
Company Information
Item | Unit | RP602/RP603 |
Basic paving width | m | 2.5 |
Max paving width | m | 6.0 |
Max paving thickness | mm | 380 |
Paving speed | m/min | 0~14 |
Travel speed | Km/h | 0~3.0 |
Theoretical productivity capaci | t/h | 400 |
Hopper capacity | t | 13 |
Gradeability | % | 20 |
Pavement evennesss | mm/3m | 3 |
Transverse leveling accuracy | % | ±0.03 |
Centre crown ratio | % | 0~3 |
Engine model |
| BF4M1013EC |
Engine power | Kw | 118 |
Engine speed | r/min | 2300 |
Diesel tank capacity |
| 230 |
Machine weight | t | 15.8~21.5 |
Overall dimensions | mm | 6230*2500*3855 |
Tamper vibration frequency | r/min | / |
