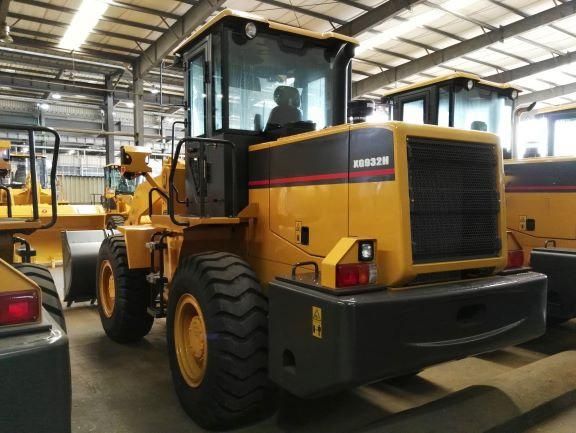

• Model NO.：XG932H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Wheelbase(mm)：2750
• Ground Clearance(mm)：356
• Tread(mm)：1800
• Bucket Width (mm)：2420
• Turn Radius(mm)：5280
• Min.Turn Radius Outside of Bucket (mm)：5860
• Max. Dumping Height(mm)：3060
• Dumping Reach(mm)：1020
• Digging Depth(mm)：100
• Engine Model：Yc6j125z-T20
• Rated Power (Kw)：92
• Fuel Consumption Per Hour(G/Kw.H )：225
• Rated Speed (R/Min)：2200
• Max Torque(N.M)：500
• Operating Weight (Tonnes)：10.8
• Transport Package：Nude Packing
• Specification：7170*2484*3235mm
• Trademark：wheel loader
• Origin：Jiangsu, China
• HS Code：8429510000
• Production Capacity：1000 Unit,Units Per Month

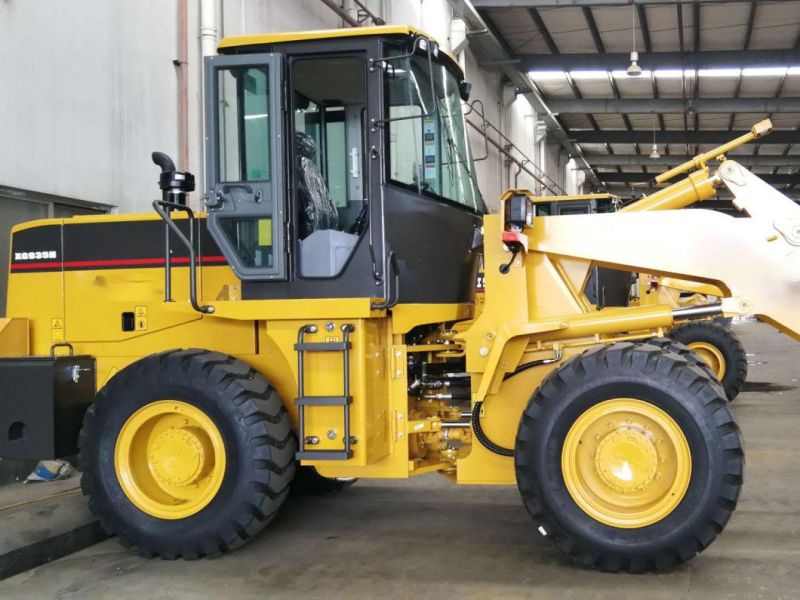

Product OverviewProduct ParamentersModelXG932HXG935HOverall length(mm)69706970Overall height(mm)33303330Overall width(mm)22452245Wheel base(mm)27502750Ground clearance(mm)356356Tread(mm)18001800Bucket Width (mm)24202420Turn radius(mm)52805280Min.Turn radius outside of bucket (mm)58605860 39303930Max. Dumping Height(mm)30603060Dumping Reach(mm)10201020Digging depth(mm)100100 5050Engine modelYC6J125Z-T20YC6J125Z-T20/6BTAA5.9-C130Rated power (kw)9292/97Fuel comsumption per hour(g/kw.h )225225/237Rated speed (r/min)22002200Max torque(N.m)500500/580Operating Weight (Tonnes)10.810.8Rated Load(Tonnes)3.23.2Bucket capacity (m3)1.4-3.01.4-3.0Lifting time/Lifting, dumping and lowering(s)6/10.46/10.4Max Breakout force(KN)100100Max. turning angle(°)±35°±35°Fuel tank(L)140140Hydraulic tank(L)160160Working pressure of steering hydraulic system(MPa)1313Working pressure of load hydraulic system(MPa)1616Travel speeds(km/h)FORWARD 1ST0~120~12FORWARD 2ND0~400~40FORWARD 3RD -FORWARD 4TH -REVERSE 1ST0~160~16REVERSE 2ND -REVERSE 3RD -Gear BoxXGXGAxleXGXGImplement pump132132Distibuting valveDF25-2CYGDF-25-00-WXSteering Hydraulic systemBZZ5-500BBZ5-500Steering pump9090Tyre size17.5-25-12PR17.5-25-12PR
