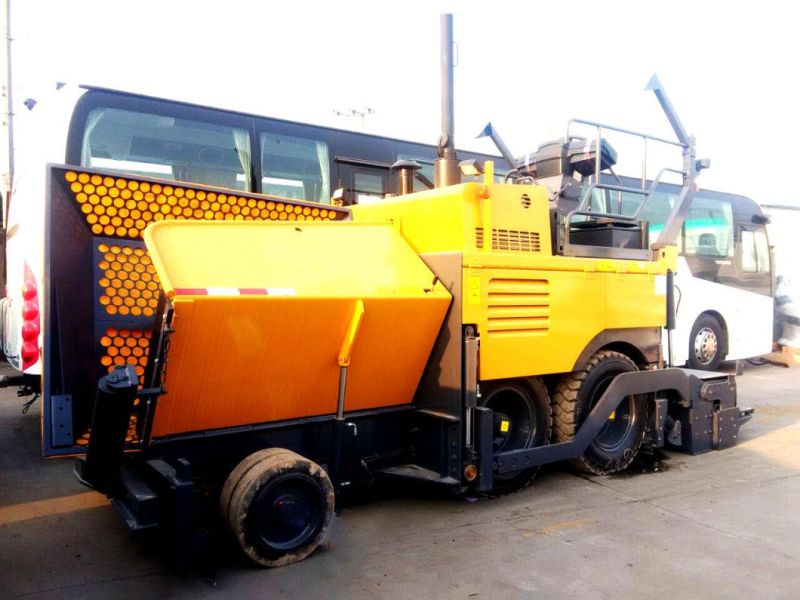

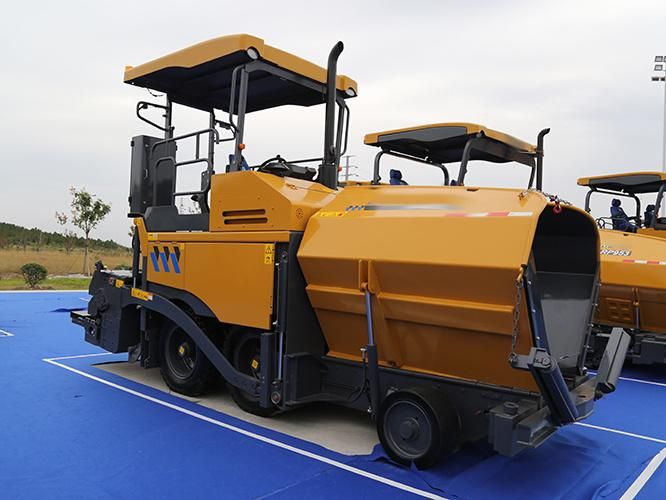

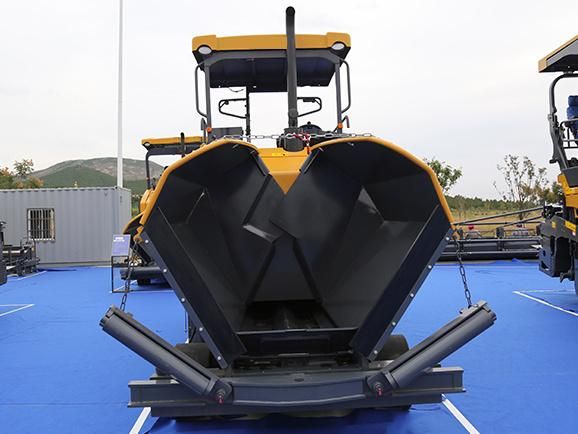

4.5m Road Construction Equipment Cement Asphalt Concrete Paver RP452L
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Warranty：1 Year
- Type：Paver
- Object：Soil Surface
- Moving Type：Mobile
- Mixing Method：Intermittent Compulsory
Base Info
- Model NO.：RP452L
- Automatic Grade：Automatic
- Product Capacity：240t,H
- Certification：ISO9001: 2000, CE
- Condition：New
- Dimension(L*W*H)：5670*2070*3590mm
- Maximum Paving Width：4.5m
- Max Paving Thickness：150 mm
- Paving Speed：0~13 M,Min
- Travel Speed：0~13 Km,H
- Theoretical Productivity Capacity：240 T,H
- Hopper Capacity：12 T
- Gradeability：20 %
- Centre Crown Ratio：0~+3%
- Engine Power：70 Kw
- Engine Speed：2200r,Min
- Diesel Tank Capcity：130L
- Machine Weight：10.5t
- Auger Speed：0~73 R,Min
- Conveyor Speed：0~30m,Min
- Transport Package：Nude Packing
- Specification：5670*2070*3590mm
- Trademark：Asphalt Concrete Paver
- Origin：Jiangsu, China
- HS Code：8479102100
- Production Capacity：1000 Unit,Units Per Month
Description
Product OverviewProduct Paramenters
Company Information
Item
Unit
RP452L
Basic paving width
m
2.0
Max paving width
m
4.5
Max paving thickness
mm
150
Paving speed
m/min
0~13
Travel speed
Km/h
0~13
Theoretical productivity capacity
t/h
240
Hopper capacity
t
12
Gradeability
%
20
Pavement evennesss
mm/3m
3
Transverse leveling accuracy
%
±0.03
Centre crown ratio
%
0~+3
Engine model
YC4D95Z-T21
Engine power
Kw
70
Engine speed
r/min
2200
Diesel tank capcity
L
130
Machine weight
t
10.5
Overall dimensions
mm
5690X2070X3590
Auger speed
r/min
0~73
Conveyor speed
m/min
0~30
Tamper vibration frequency
Hz
6~42
Screed heating
Gas heating
Auger and conveyor control
Automatic control ultrasonic sensors
Automatic leveling control
Simulator control
