Self-Propelled Type Thermoplastic Road Marking Machine

ZHENGZHOU TOURAN TRAFFIC CO., LTD.
  • After-sales Service:Lifelong After-Sales Service
  • Warranty:One Year
  • Type:Road Marking Machine
  • Object:Asphalt Road or Concerete Road
  • Moving Type:Self-Propelled
  • Mixing Method:Manual

Base Info

  • Model NO.:TR-STP65
  • Automatic Grade:Semi-Automatic
  • Product Capacity:1000 Square Meter,Day
  • Certification:ISO9001: 2000
  • Condition:New
  • Engine:6.0HP Gasoline
  • Speed:0-4km,H
  • Clambing Capcity:15 Degree
  • Paint Tank:65L
  • Heating Method:Direct-Fired
  • Glass Beads Tank:14L
  • Applicable Paint:Thermoplastic Paint
  • Marking Width:100-400mm
  • Marking Thickness:1.0-3.0mm
  • Moving Method:Self-Propelled
  • Avaliable Size of Marking Shoe:100,120,150,200,250,300,400mm
  • Transport Package:Plywood Case
  • Specification:1260*940*1070mm
  • Trademark:Touran Traffic
  • Origin:China
  • HS Code:8479109000
  • Production Capacity:15,Month

Description

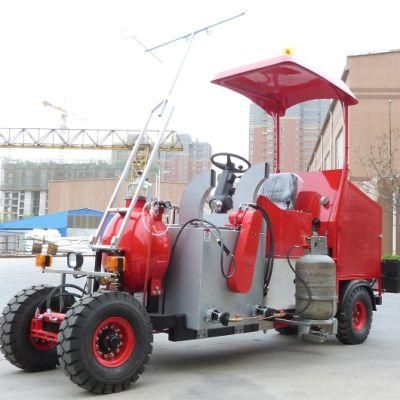

Overview Product DescriptionProduct NameSelf-propelled Thermoplastic Road Marking MachineModel NumberTR-STP65Marking MethodScreed application, self-propelled typeControl MethodManual controlBrief introductionIt is small thermoplastic road marking machine which is the most suitable for continuous long solid line construction, it is equipped with gasoline engine and variable speed transmission system to realize self-propelled, thus it can effectively reduce the labor intensity of operators, improve working efficiency. It can also automatically draw dotted lines with the appropriate modifications if you think it is necessary.



Main Parts and CharacteristicsTechnical DataEngine6.0HP Gasoline EngineDrive SystemHydrostatic infinitely variable speedMax. Clambing Capcity15°Drive SpeedForward:0-4Km/h,backward0-3.2Km/hCompany Profile

1. Enterpise Scale


Self-Propelled Type Thermoplastic Road Marking Machine

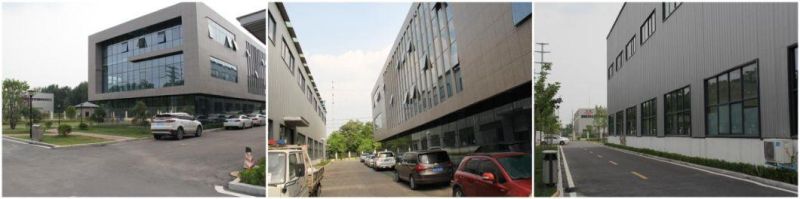

Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.

FAQ

Self-Propelled Type Thermoplastic Road Marking Machine

1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.

2.About Sample:
Samples of traffic safety products and road marking paint are provided and is Free, but the air freight is collect or you pay us the cost in advance.

3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.

4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.

5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.

6.About Payment or other question:
Pls email us or chat with us online directly.
