Driving-Type Thermoplastic Road Marking Machine with High Automation
ZHENGZHOU TOURAN TRAFFIC CO., LTD.- After-sales Service：Lifelong After-Sales Service
- Warranty：One Year
- Type：Road Marking Machine
- Object：Asphalt Road or Concerete Road
- Moving Type：Self-Propelled
- Mixing Method：Hydraulic
Base Info
- Model NO.：TR-DTP200
- Automatic Grade：Semi-Automatic
- Product Capacity：1000-2000 Sq. Meter,Day
- Certification：ISO9001: 2000
- Condition：New
- Engine：22kw Diesel Engine
- Speed：0-22km,H
- Clambing Capcity：15 Degree
- Paint Tank：200L
- Application Method：Flat Line or Convex Line Screeding
- Glass Beads Tank：Pressurized 100L
- Applicable Paint：Thermoplastic Paint
- Marking Width：100-400mm
- Marking Thickness：1.0-3.0mm
- Moving Method：Ride-on
- Avaliable Size of Marking Shoe：100,120,150,200,250,300,400mm
- Transport Package：Plywood Case
- Specification：4000(L)x1910(W)x2100(H)mm
- Trademark：Touran Traffic
- Origin：China
- HS Code：8479109000
- Production Capacity：5,Month
Description
Overview
Product DescriptionProduct Name Ride-on Thermoplastic Road Marking Machine Model Number TR-DTP200 Marking Method Screed application, Ride-on type Control Method Automatically control through control pannel Brief introduction This machine is a compact driving-type(also called ride-on) thermoplastic road marking machine with high construction efficiency and strong flexibility, which can be widely used in the construction of small and medium-sized thermoplastic road marking projects. Technical DataBasic Information Marking Method Screeding application Material Container Volume 200L paint tank Glass bead container 100L Air Compressor 0.6m3 L/min Chassis information Engine Power 30KW diesel engine Drive Unit Hydraulic drive constantly variable speed transmission system Company Profile

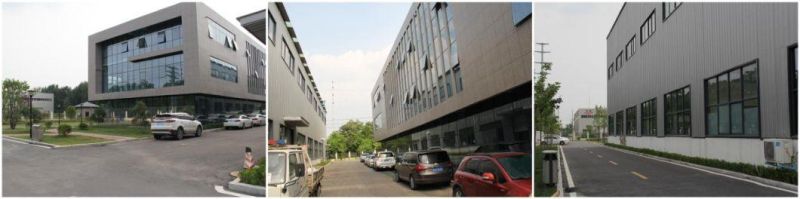

Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.
FAQ
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2.About Sample:
Samples of traffic safety products and road marking paint are provided and is Free, but the air freight is collect or you pay us the cost in advance.
3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.
4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.
5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.
6.About Payment or other question:
Pls email us or chat with us online directly.
1. Enterpise Scale
Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine. FAQ
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2.About Sample:
Samples of traffic safety products and road marking paint are provided and is Free, but the air freight is collect or you pay us the cost in advance.
3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.
4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.
5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.
6.About Payment or other question:
Pls email us or chat with us online directly.
