Shantui Brand 2tons Front End Loader L26-B3 for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：L26-B3
- Type：Small Loader
- Model：L26-B3
- Rated Operating Load：2000kg
- Bucket Capacity：1m3
- Machine Weight：6200 Kg
- Wheel Base：2270 mm
- Rated Power：57kw,2000rpm
- Dumping Reach：850 (Standard Boom) 865 (Long Boom)
- Engine：Lr4b3
- Fuel Tank：105 L
- Transport Package：Bulk, RO-RO
- Specification：6120*2078*2850 mm
- Trademark：Shantui
- Origin：Shandong, China
- HS Code：8408201010
- Production Capacity：500
Description
Basic Info.
Model NO. L26-B3 Type Small Loader Model L26-B3 Rated Operating Load 2000kg Bucket Capacity 1m3 Machine Weight 6200 Kg Wheel Base 2270 mm Rated Power 57kw/2000rpm Dumping Reach 850 (Standard Boom) 865 (Long Boom) Engine Lr4b3 Fuel Tank 105 L Transport Package Bulk, RO-RO Specification 6120*2078*2850 mm Trademark Shantui Origin Shandong, China HS Code 8408201010 Production Capacity 500Product Description
Product Name: Shantui Brand 2Tons Front End Loader L26-B3 For SaleProduct Description
Product Description
Power System
LR China-III low-speed engine features low malfunction rate, low noise, and low fuel consumption under composite working condition.
Good site adaptability
The fixed shaft 428 transmission with 4 forward gears and 2 reverse gears achieves more extensive site adaptability.
Good heat dissipation performance
The number of engine fan blades is adjusted from 7 to 9 to increase the airflow output by 10~15% and achieve better heat dissipation performance. The radiator structure is adjusted to eliminate overheating during long-distance driving and further broaden the application scope.
Optimization of hydraulic system
The series connection sequence of the multi-way valve core is adjusted in such manner that the boom lifting priority is changed to bucket tilting priority to better coincide with the actual working situation.
Parameter
| Parameter name | L26-B3 SG (Sandstone version) | L26-B3 CH (Coal version) | L26-B3 MW(Mining version) |
| Performance parameters | |||
| Operating weight (Kg) | 6200 | 6200 | 5600 |
| Maximum dumping height (mm) | 2460 (Standard boom)2850 (Long Boom) | 2700 (Long Boom) | 2460 (Standard boom) |
| Dumping reach (mm) | 850 (Standard boom) 865 (Long Boom) | 1000 (Long Boom) | 850 (Standard boom) |
| Maximum breakout force (kN) | 55 | 50 | 55 |
| Total cycle time (s) | 8 | 8 | 8 |
| Engine | |||
| Engine model | LR4B3 | LR4B3 | LR4B3 |
| Rated power/rated speed (kW/rpm) | 62.5/2200 | 62.5/2200 | 62.5/2200 |
| Overall dimensions | |||
| Overall dimensions of machine (mm) | 6120*2078*2850 | 6210*2078*2850 | 5590*2078*2450 |
| Driving performance | |||
| Forward speed (km/h) | F1:0-8, F2:0-11.5, F3:0-20, F4:0-28 | F1:0-8, F2:0-11.5, F3:0-20, F4:0-28 | F1:0-10, F2:0-24 |
| Reversing speed (km/h) | R1:0-10, R2:0-24 | R1:0-10, R2:0-24 | R1:0-10, R2:0-24 |
| Chassis System | |||
| Wheelbase (mm) | 2270 | 2270 | 2270 |
| Tank capacity | |||
| Fuel tank (L) | 105 | 105 | 105 |
| Working device | |||
| Rated bucket capacity (m³) | 1 | 1.5 | 1 |
| Rated loading capacity (t) | 2 | 2 | 2 |

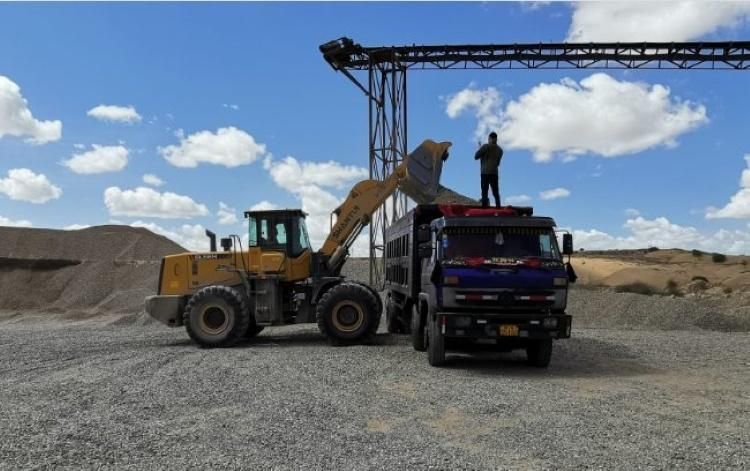

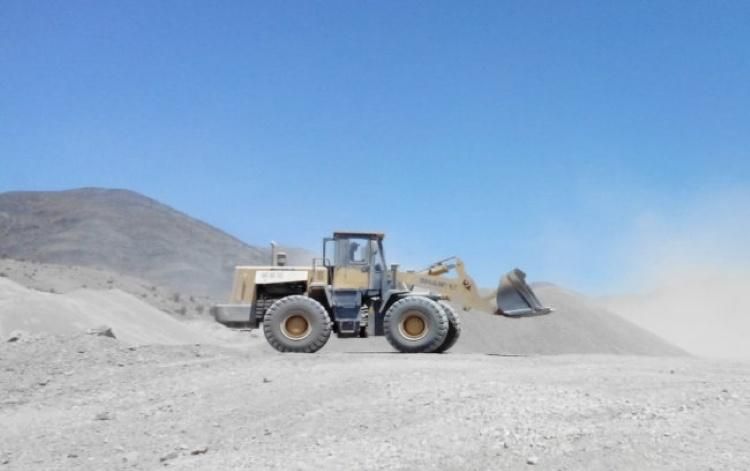

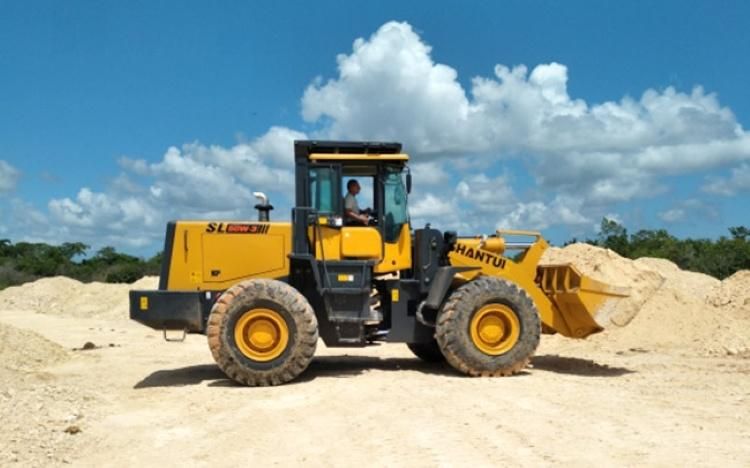

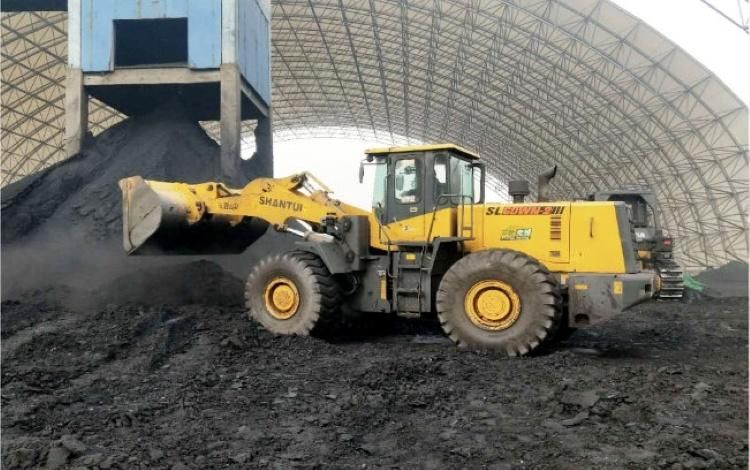

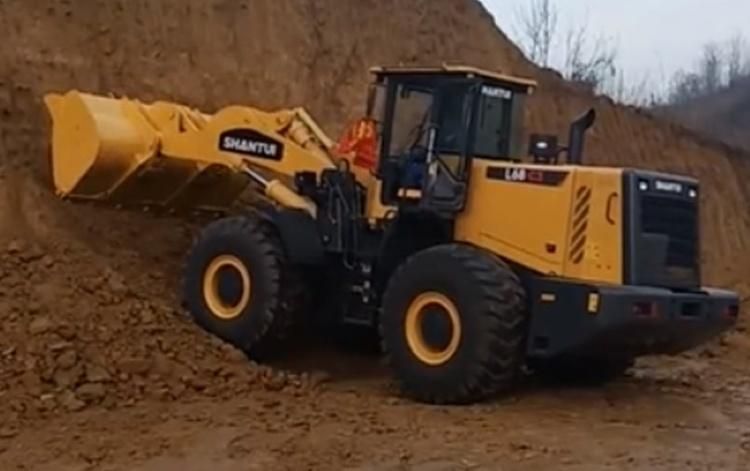

Product Picture
