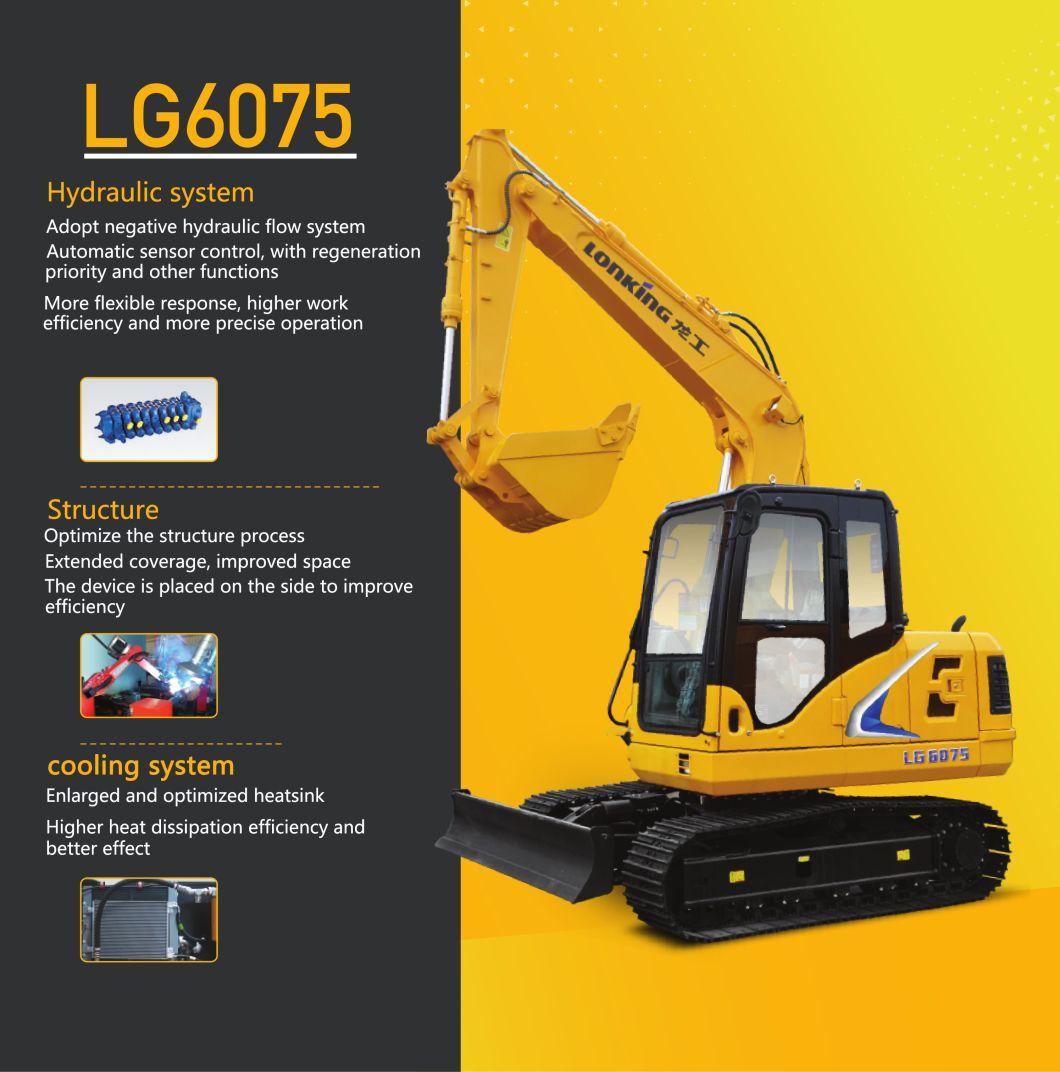

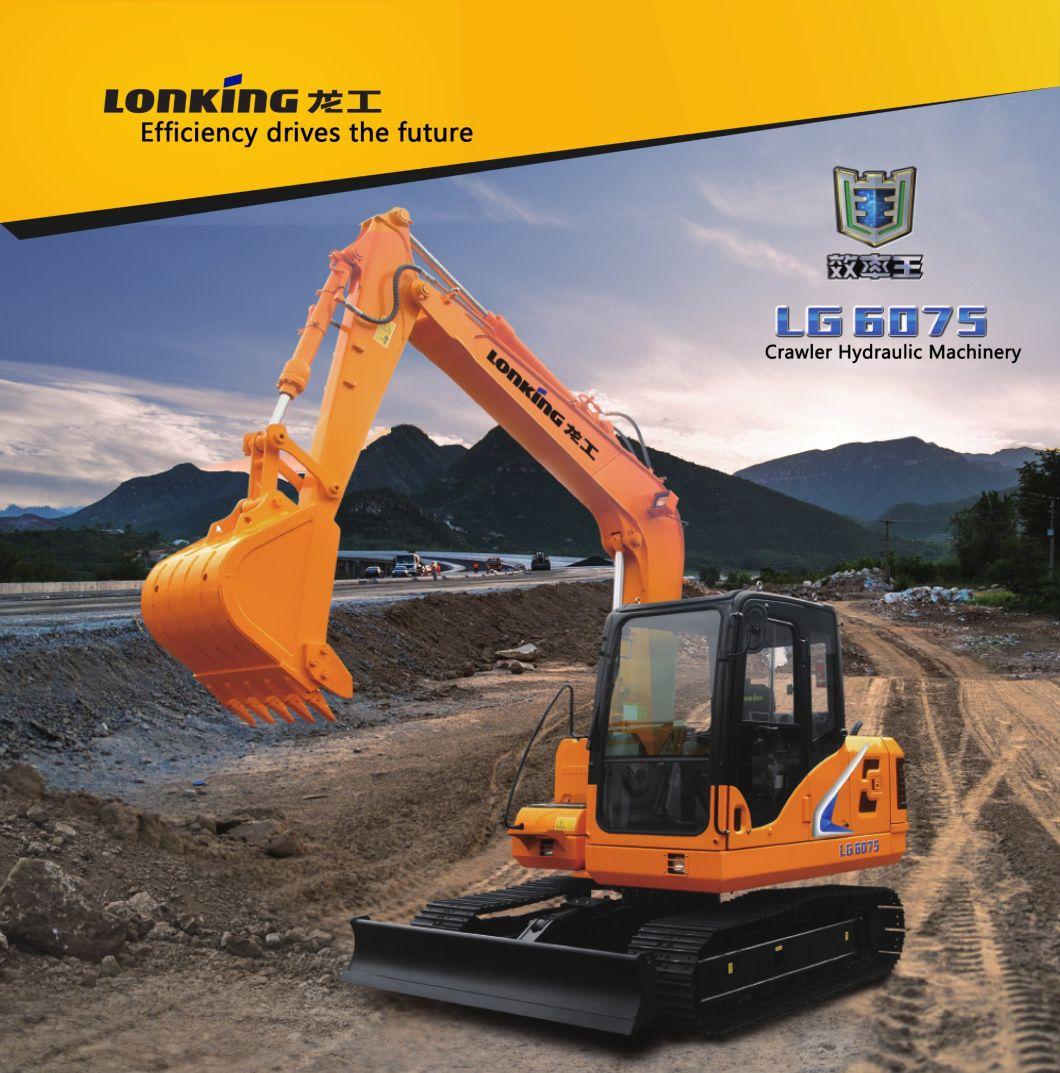

• Model NO.：LG6075
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Medium-Sized
• Certification：CE
• Condition：New
• Self Weight：7680kg

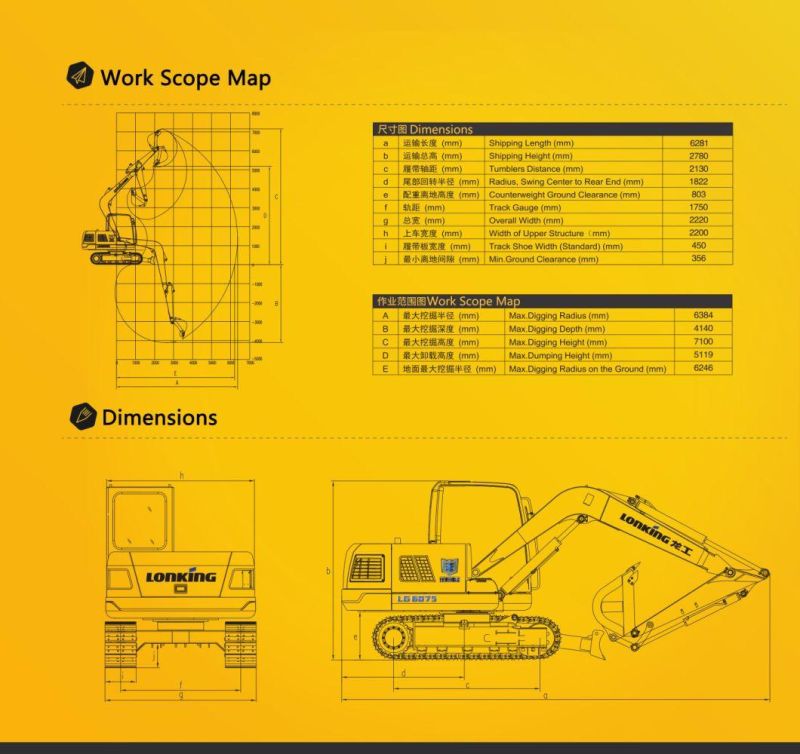

• Shipping Length：6281mm
• Shipping Height：2780mm
• Tumbers Distance：2130mm
• Radius Swing Center to Rear End：1822mm
• Counterweight Ground Clearance：803mm
• Track Gauge：1750mm
• Overall Width：2220mm
• Width of Upper Structure：2200mm
• Track Shoe Width(Standard)：450mm
• Min. Ground Clearance：356mm
• Origin：China
• HS Code：8429521200

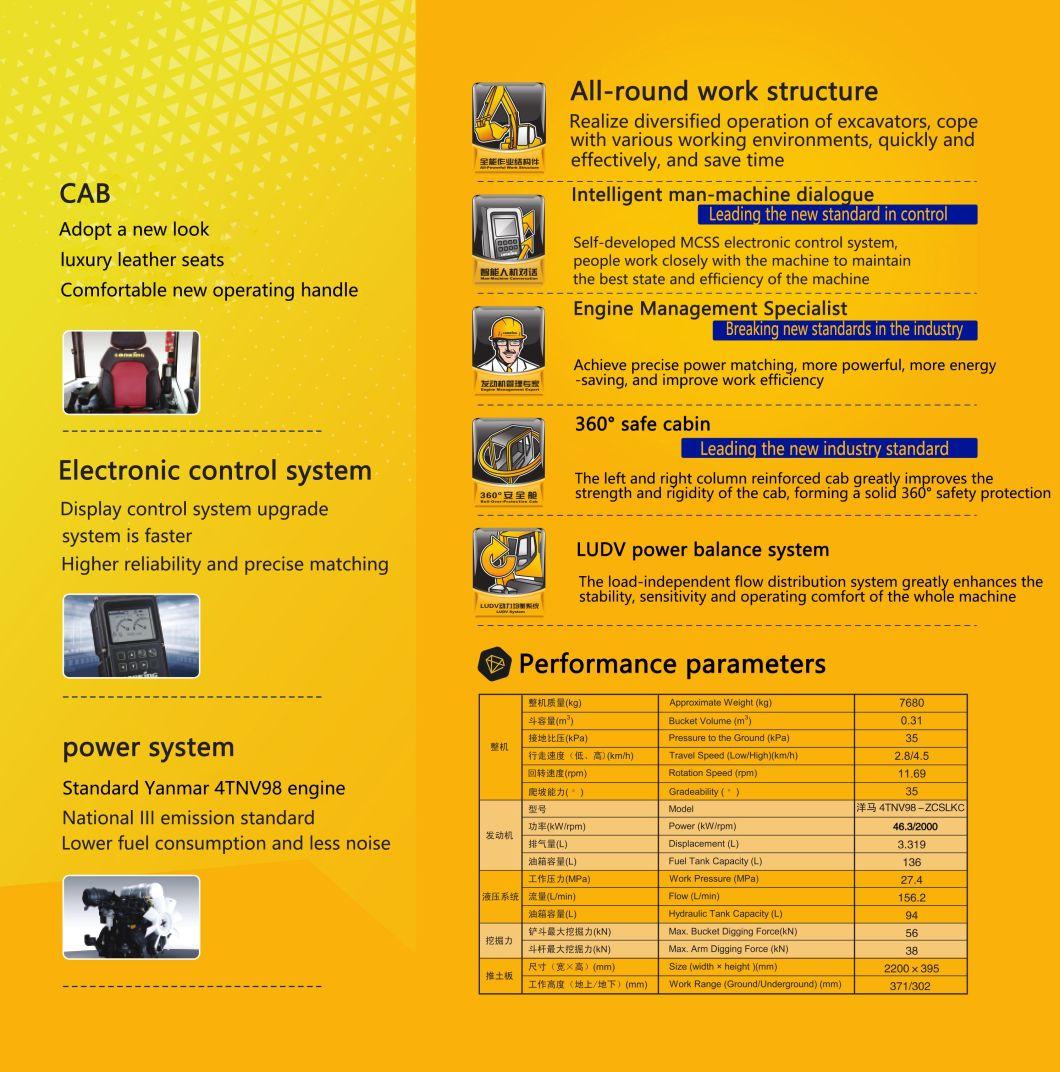

Overview Product DescriptionWhole machineApproximate Weight (kg)7680Bucket Volume (m')0.31Pressure to the Ground (kPa)35Travel Speed (Low/High)(km/h)2.8/4.5Rotation Speed (rpm)11.69Gradeability(' )35EngineModelYanmar 4TNV98-ZCSLKCPower (kW/rpm)46.3/2000Displacement (L)3.319Fuel Tank Capacity (L)136Hydraulic systemWork Pressure (MPa)27.4Flow (L/min)156.2Hydraulic Tank Capacity (L)94Digging forceMax. Bucket Digging Force(kN)56Max. Arm Digging Force (kN)38BulldozerSize(width*height)(mm)2200*395Work Range(Ground/Underground)(mm)371/302  Detailed Photos



Product advantageAll-round work structureRealize diversified operation of excavators, cope with various working environments, quickly and effectively, and save timeIntelligent man-machine dialogueSelfdeveloped MCSS electronic control system,
people work closely with the machine to maintain the best state and efficiency of the machineEngine Management Specialist
 Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency360· safe cabinThe left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protectionLUDV power balance systemThe load-independent flow distribution system greatly enhances the stability,sensitivity and operating comfort of the whole machine.
 Shipping By Sea
