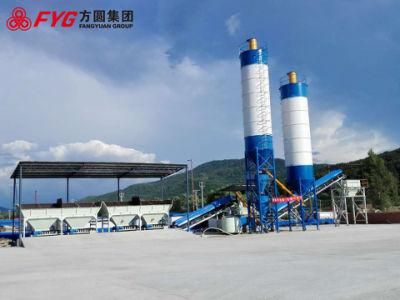

Good Price Wbz500-D Stabilized Soil Mixing Plant Paving Machinery
FANGYUAN GROUP CO., LTD.- After-sales Service：Provided
- Warranty：1year
- Type：Asphalt Mixing Plant
- Object：Asphalt Concrete Pavement
- Moving Type：Fixed
- Mixing Method：Continuous Drum
Base Info
- Model NO.：WBZ500-D
- Automatic Grade：Automatic
- Product Capacity：>400t,h
- Certification：ISO9001: 2000, CE, Eac
- Condition：New
- Productivity：500t,H
- Total Power：136kw
- Aggregate Capacity：15cbm
- Discharge Height：3.8m
- Transport Package：Container
- Specification：500t,h
- Trademark：FYG
- Origin：Shandong, China
- HS Code：8474390000
- Production Capacity：500sets,Year
Description
PowerV/Hz 380/50
2.Performance and characteristic:

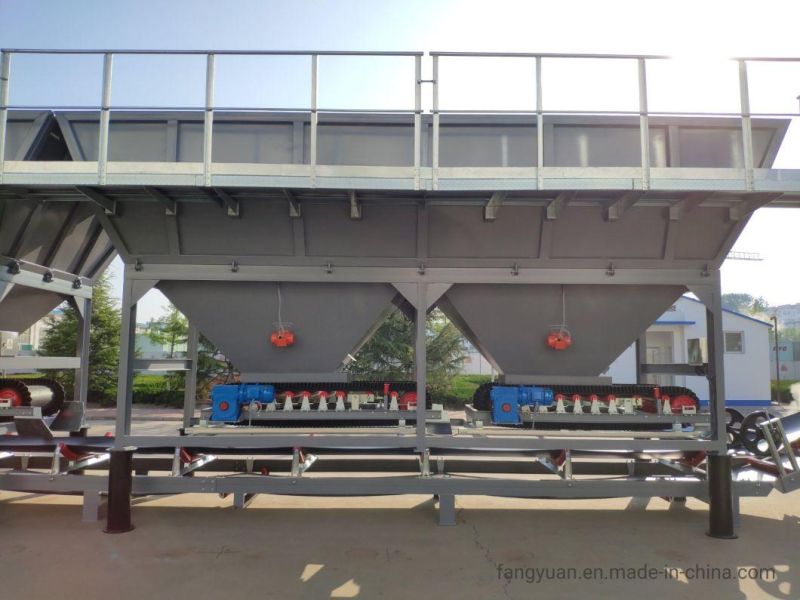

Aggregate batching system:
Generous volume (15m3), building block combination
Obtained the national manufacturing measuring instrument license, with high measurement accuracy
Optional mechanical arch breaking
Powder metering system:
Adopt the patented technology of reduction scale and vertical cement supply, with high measurement accuracy
The whole process is in a fully sealed state, no pollution, no waste
Mixer:
Extended mixing drum, high-speed mixing, homogeneous and efficient
Mixing blades and mixing arms ensure the production of more than 200,000 tons of finished materials

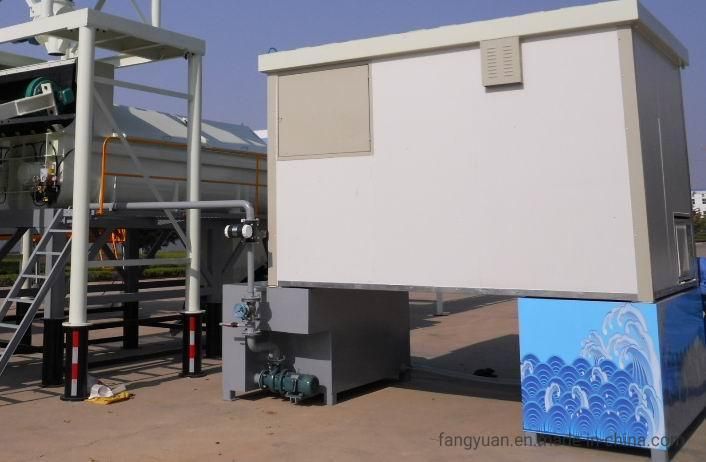

water supply system:
Intelligent electromagnetic flowmeter + frequency conversion speed regulation technology, accurate measurement
Remote control and adjustment
Finished product silo system:
Adopt pneumatic double door and four cylinder structure to ensure smooth production
Equipped with a movable steel anti-segregation device to prevent segregation caused by the falling of finished materials

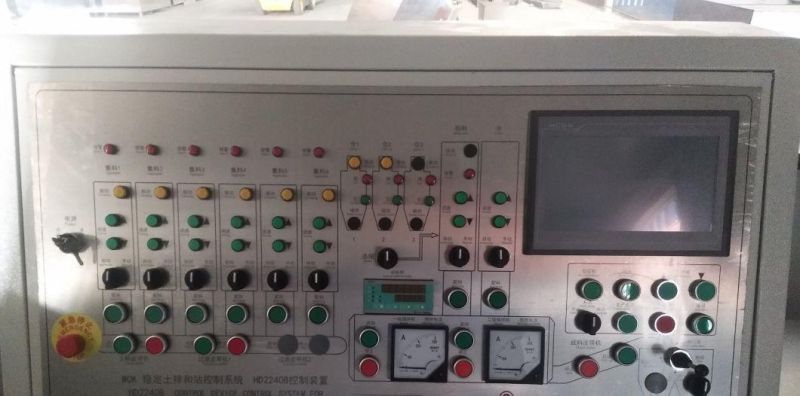

Electrical control system:
The main electrical components adopt international brands, with reliable use and long service life
LCD touch screen, can be operated without professional computer knowledge
With material shortage alarm function, to ensure the smooth progress of production
With one-key increase and decrease function of productivity, it is convenient to choose a reasonable productivity
