• Model NO.：ZT912
• Type：Small Loader
• Standard Bucket：0.75m3
• Loader Uploading Distance：880mm
• Operating Weight：4300kg
• Max Dump Heigh：3200mm
• Tyre Specification：16,70-20
• Engine Power：40,63kw
• Drive Type：Hydraulic Doubule Change, Power Shift
• Wheel Base：2250mm
• Tread：1490mm
• Min.Ground Clearance：360mm
• Min Turning Radius：5060
• Engine：Xinchai
• Rated Speed：2200rpm
• Color：Grey, Yellow
• The Voltage：12V
• Transport Package：Nude
• Specification：5500*1860*2650mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842959000
• Production Capacity：30 Sets,Months

Basic Info.

Model NO. ZT912 Type Small Loader Standard Bucket 0.75m3 Loader Uploading Distance 880mm Operating Weight 4300kg Max Dump Heigh 3200mm Tyre Specification 16/70-20 Engine Power 40/63kw Drive Type Hydraulic Doubule Change, Power Shift Wheel Base 2250mm Tread 1490mm Min.Ground Clearance 360mm Min Turning Radius 5060 Engine Xinchai Rated Speed 2200rpm Color Grey, Yellow The Voltage 12V Transport Package Nude Specification 5500*1860*2650mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30 Sets/Months

Product Description

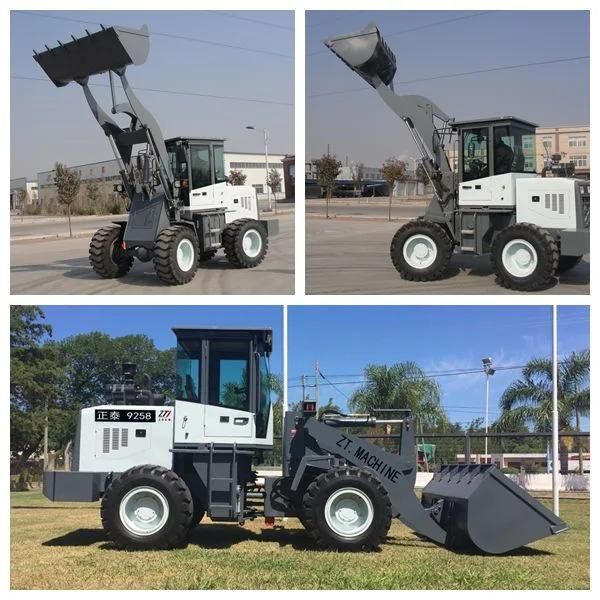

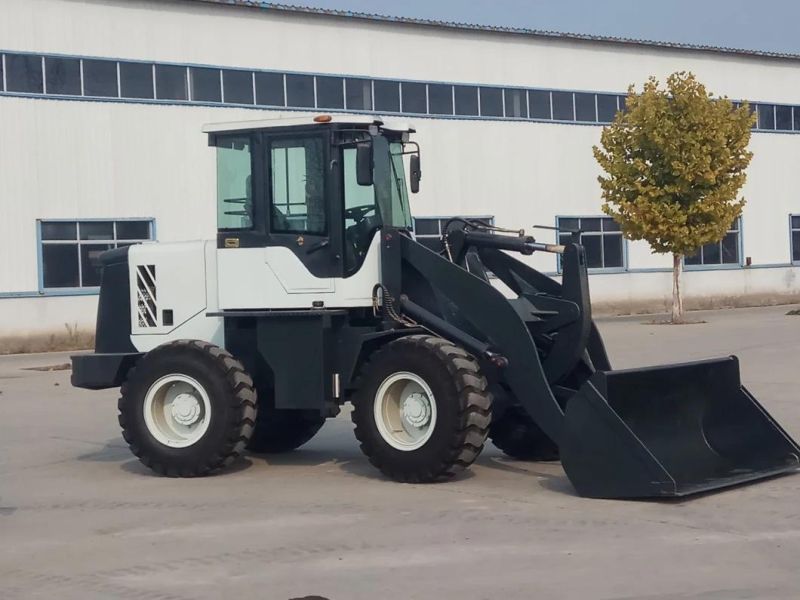

Wheel Loader


 Based on the solid and faithful tradition, absorbing the advan- tages of advanced technologies of the world, ZT corporation tries its best to make the ideal construction equipments.
ZT912 wheel loader is newly designed by Zhengtai company and it's a small one. It adopts KM385 engine, energy-saving and environment-protecting, which is widely used in the developed countries.5-speed machinery gearbox, reliable, widely used.10-16.5 tyre can improve the loader's stability. Pilot control can choose safety seat, which makes driving comfortable.
 Characteristic
 1.Increased the cab with safety glass, bright and spacious.
2.Working table, water temperature, oil temperature, current, can see clearly at a glance.
3.Reasonable fuel tank, convenient to refuel.
4.Using brand-name hydraulic parts,the main pump has a long life and high working efficiency.
5.Adjustable seat, easy to use, comfortable.
6.Hydraulic steering, easy to operate, convenient.
7.Hydraulic walking system, using  famous brand engine,
8.Fully equipped with all the functions of small excavators and loaders
9.Predominant overall performance, with excellent operating efficiency.
10.Can be equipped with a variety of optional parts to meet different user requirements.



Specification

Rated load weight(kg)	1500
Rated bucket capacity (m³)	0.75
machine weight(kg)	4700KG
Maximum Unloading height (mm)	2930
Unloading distance (mm)	880
Discharging angle (°)	35
Max. Gradeability (°)	30
Automatic bucket flat performance	include
Lift time of the moving arm(s)	≤4
The time of the lifting, loading and unloading and landing,(s)	≤9
vehicle turning angle(°)	35
minimum turning radius(mm)	4800
distance between shafts(mm)	2050
engine model	Xinchai498
Engine type	Inline, water-cooled, four stroke, direct injection
engine power(kW)	40
rated speed(rpm)	2200
Torque converter / transmission type	Fixed shaft type hydraulic dual variable, power shift
driving axle	Isuzu aggravate axle
tyre model	16/70-20

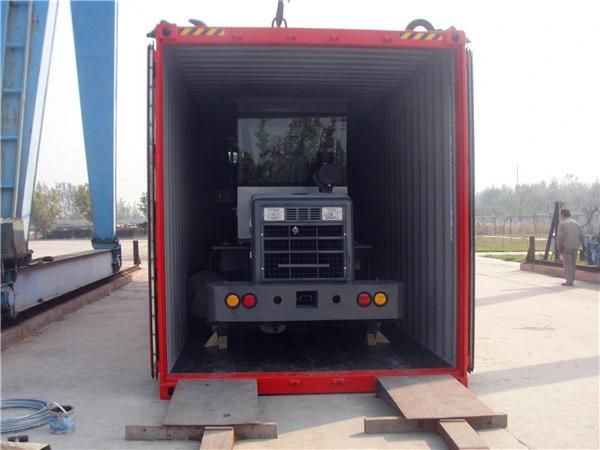

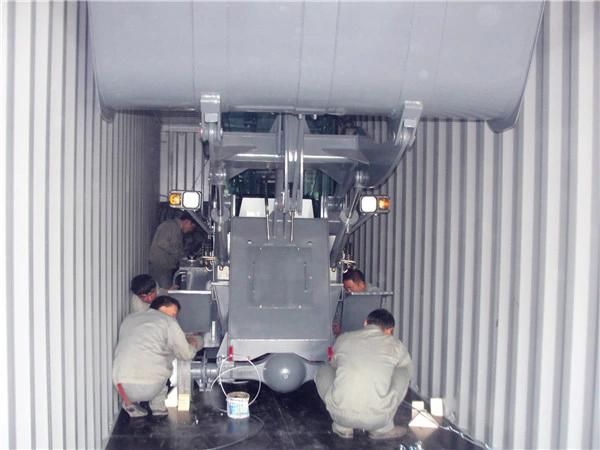

Packing

Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
