• Model NO.：LT45
• Walking Mode：Wheeled
• Type：Skid Steer Loader
• Wheelbase：1044mm
• Operating Weight：2780kg
• Max.Dump Height：2266mm
• Engine：Xinchai
• Bucket Capacity：0.39m3
• Rated Capacity：700kg
• Skip Width：1720mm
• Turn Radius：2056mm
• Color：Customize
• Transport Package：Container
• Specification：3535*1735*1979mm
• Trademark：LTMG
• Origin：China
• HS Code：8429590000
• Production Capacity：800sets,Year

ItemData Item Data Max working height(A)3490mmLoading capacity700KGMax pin height(B)3028mmWeight 2860kgMax height on bucket level state(C)2814mmEngine Diesel engine Max dumping height (D)2266mmRated speed2500r/minMax Dumping distance(F)437mmType of engineFour cylinder, water-cooling, four-strokeWheel base(G)1044mmRated power45KWTotal height(H)1979mmFuel consumption rate on standard240g/KW·hGround clearance196mmFuel consumption rate on max torque238g/KW·hOverall length without bucket(K)2621mmNoise 117dB(A)Total length(L)3400mmGenerator power500WSkip width(M)1720mmVoltage 12VTotal width(W)1665mmStorage battery105AHTread width to center line (P)1425mmSpeed 0-10 Km/hTire's thickness N)240mmDrive mode Hydrostatic four-wheel driveDeparture angle(α)19°Tire 10-16.5Bucket dump angle(β)41°Hydraulic pump flow for running110L/minRetracting angle(θ)18°Hydraulic pump flow for working50L/minTurn radius(R)2056mmSystem pressure15MP

After-sale service

Nowadays we have been sell more than 60 countries.

All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and product's quality certificate.

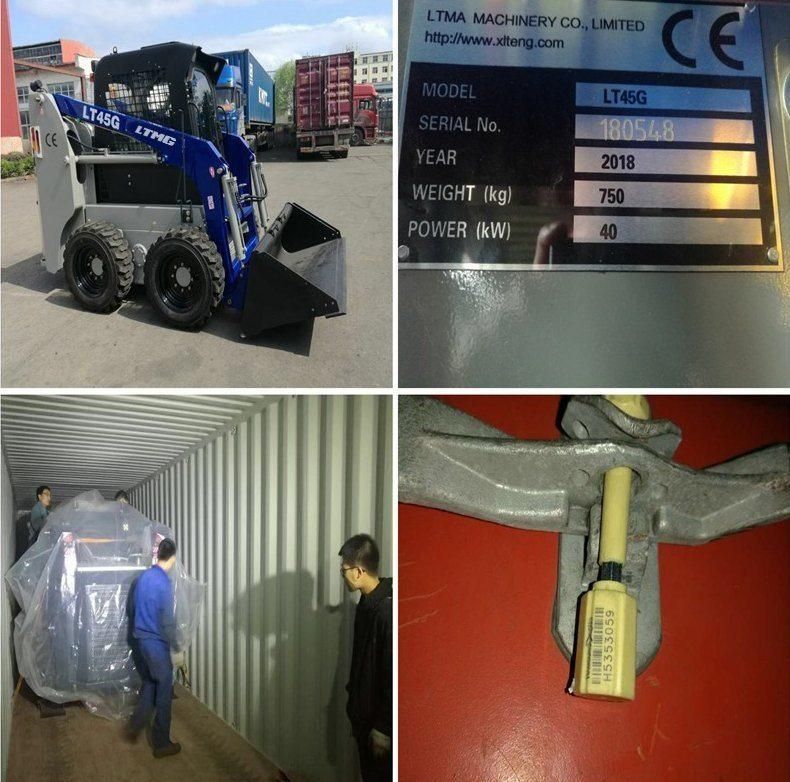

Shipping & package

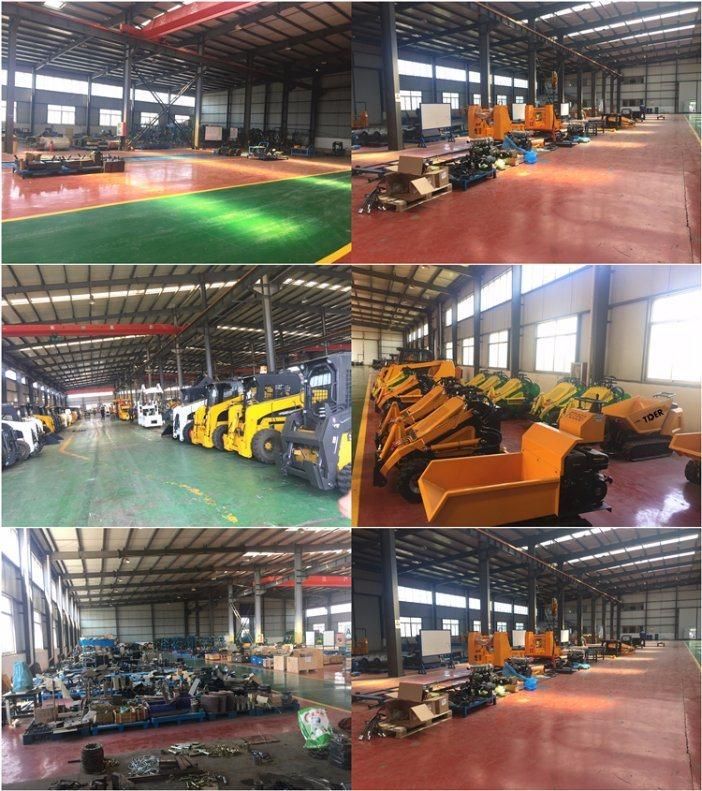

Factory
