• Model NO.：LT15J
• Type：Log Loader
• Track Base：2410mm
• Operating Weight：25, 000kg
• Engine：Wheicai
• Rated Power：199kw,2200rpm
• Max.Dumping Height：3850mm
• Overall Length：9500mm
• Rated Speed：2200r,Min
• Wheel Base：3600mm
• Name：15ton Sugarcane Log Loader for Africa Market with
• Cycling Time：12s
• Transport Package：Container or by Bulk
• Specification：9500*3230*3800mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：400set,Years

ModelLT15JOperating weight25,000kgEngineWeichaiRated engine power199KWRated rotate speed2200r/ninMax.Torque920N.MMax.Dumping height3850mmRated load15,000 KGNO.Of shiftsForward 4 For Reverse2Driving speed Forward/Reverse I0-7km/hForward/Reverse II0-11km/hForward/Reverse III0-23km/hForward/ReverseIV0-38km/hGrade ability≥25°Turning angle35°Overall length9500mmOverall width3230mmOverall height3800mmWheel base3600mmTrack base2410mmTransmissionBeilianCycling time12sTire type26.5R25
Product Features

1.Powerful engine:Weichai Engine, 6 Cylinders 4-stroke, Turbocharged Intercooled, with multinomial patents, high efficiency low noise and cooling technology, strong power, energy conservation and environmental protection.Synthesize multilevel compound desert air filter technology, especially for using in dusty environment.Cummins engine, Steyr engine, Shangchai(CAT technology) engines are optional.

2.Pressurized cab:Cab with broad view, large space and noise-isolation and vibration absorber meets all kinds of operation.Radio with MP3 function and speaker and the Joystick control system(Optional)ensure easy operation and more comfortable.

3.Hydraulic systems:To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

4.Brake systems:Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.The Auto Cooling Technology on brake system to double assurance the safety and the rear view camera, ROPS/FOPS cab are optional.

5.Axle:Reinforced Q axle with bigger axle hub/gears features 50% stronger bearing capacity than the normal ones and can forbid the oil leak efficiently, high reliability and convenient to maintenance.

6.Transmission and torque converter:The Yitong transmission and the dual turbo Shantui hydraulic torque converter are easy to maintain, superior in the efficiency delivery and overload adaption, match with the Weichai engine perfectly.Hangzhou advance gearbox with ZF technique transmission is optional.

7.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

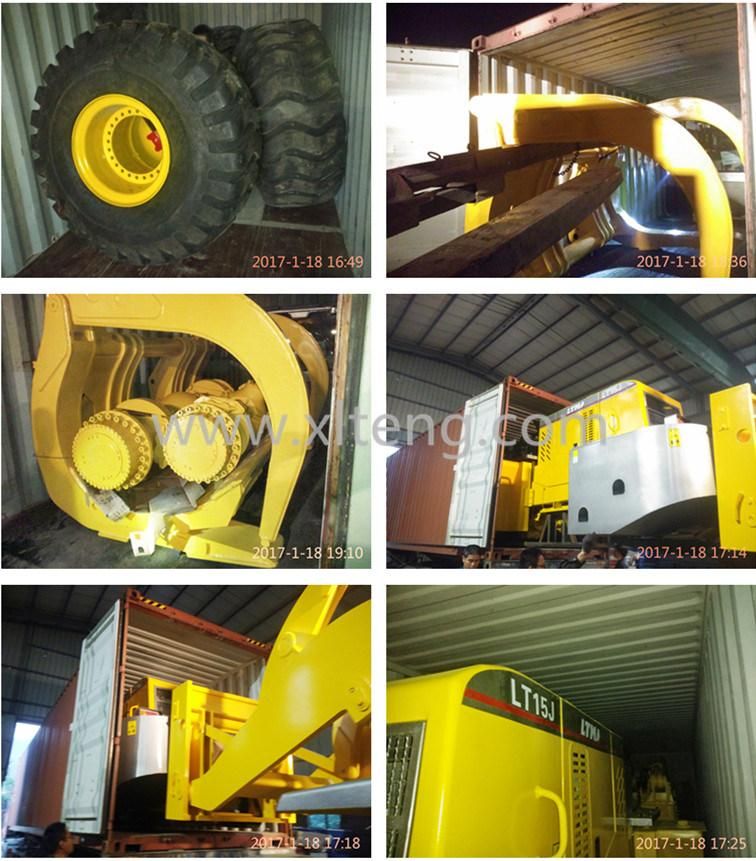

packaging&shipping

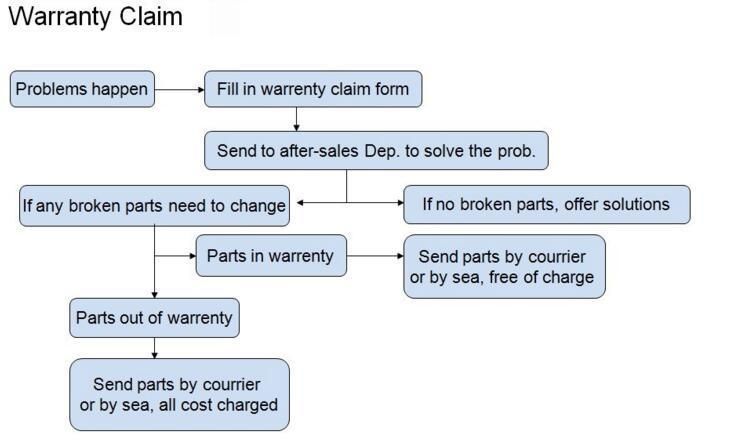

After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

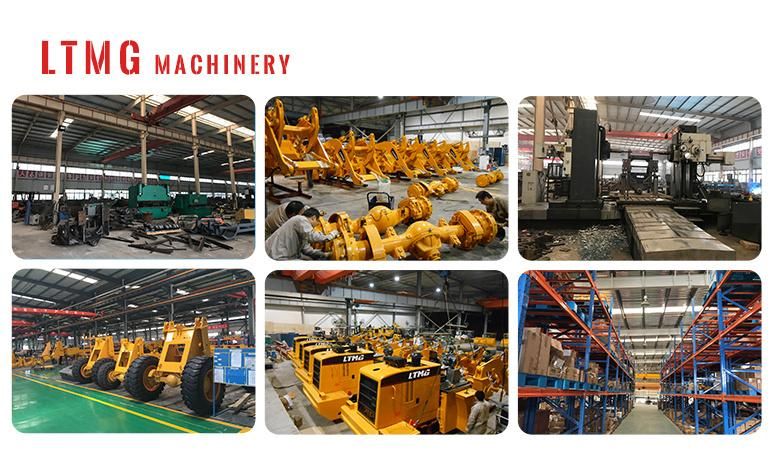

Factory Overview


Exhibition Show
