Engineering & Construction Machinery

Home > Product > Pile Driver

Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment

TYSIM Piling Equipment Co., Ltd.
  • After-sales Service：Supported
  • Warranty：1 Year
  • Type：Pressure Pile Driver
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Hydraulic Hammer
  • Power Source：Diesel

Base Info

  • Model NO.：KR300E
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Torque：320 Kn.M
  • Max. Diameter：2000 mm
  • Max. Drilling Depth：31.2m
  • Max. Crowd Pressure：220kn
  • Max. Crowd Pull：220 Kn
  • Main Winch Line Pull：230 Kn
  • Operating Height：11087 mm
  • Operating Width：4300mm
  • Transport Package：Nude Pack
  • Specification：80t
  • Trademark：tysim
  • Origin：Jiangsu, China
  • HS Code：8431499900
  • Production Capacity：30sets,Month

Description

Basic Info.

Model NO. KR300E Certification CE, ISO 9001:2000 Condition New Torque 320 Kn.M Max. Diameter 2000 mm Max. Drilling Depth 31.2m Max. Crowd Pressure 220kn Max. Crowd Pull 220 Kn Main Winch Line Pull 230 Kn Operating Height 11087 mm Operating Width 4300mm Transport Package Nude Pack Specification 80t Trademark tysim Origin Jiangsu, China HS Code 8431499900 Production Capacity 30sets/Month

Product Description

Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment
Technical Specification
TypeKR300E
Torque320KN.m
Max. diameter2000mm
Max. drilling depth83/54m
Speed of rotation6~27 rpm
Max. crowd pressure220 kN
Max. crowd pull220 kN
Main winch line pull320 kN
Main winch line speed65 m/min
Auxiliary winch line pull110kN
Auxiliary winch line speed70m/min
Stroke(crowd system)6000mm
Mast inclination(lateral)±5°
Mast inclination(forward)5°
Max. operating pressure34.3MPa
Pilot pressure4 MPa
Travel speed1.5km/h
Traction force560 kN
Operating height22903 mm
Operating width4300mm
Transport height3660 mm
Transport width3000 mm
Transport length16525mm
Overall weight90 t

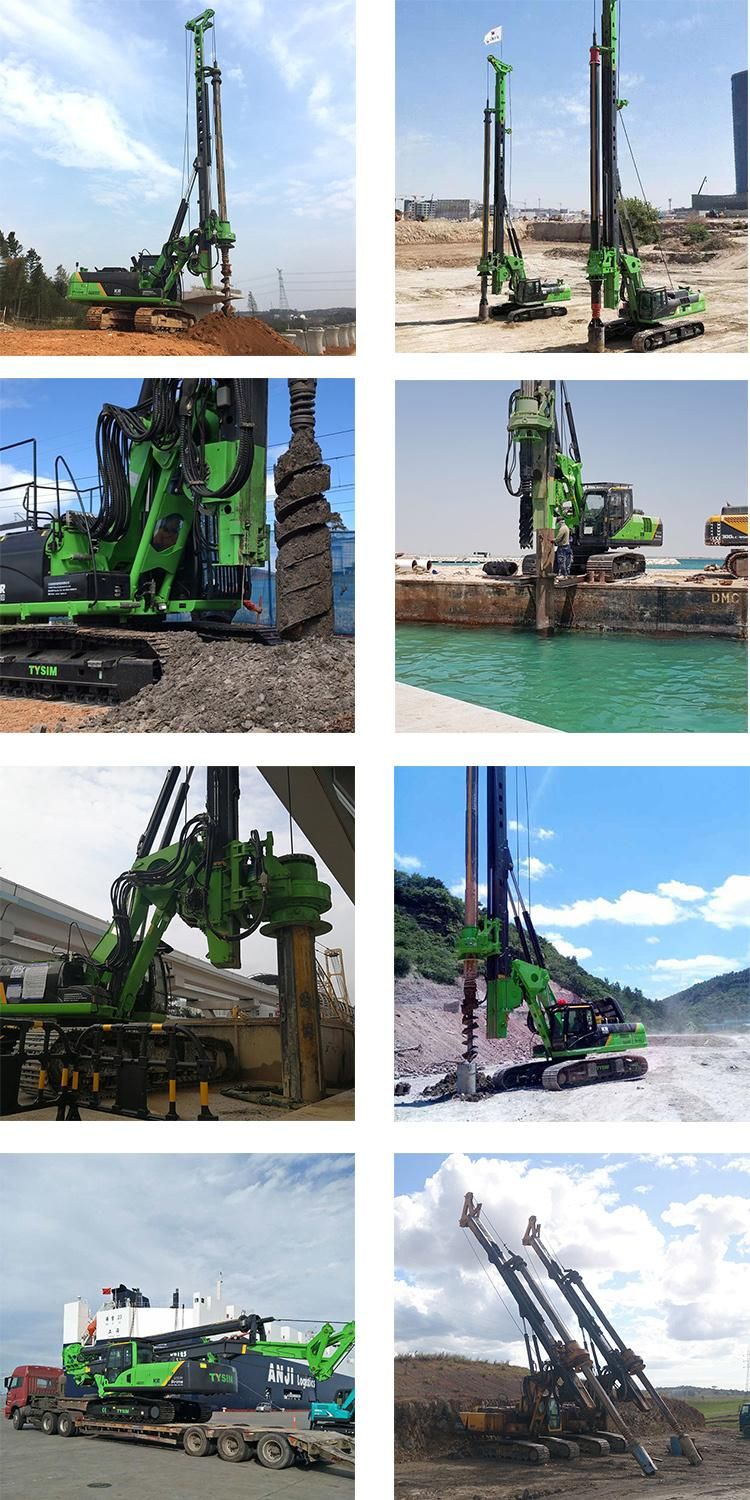

Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment

Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment

Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment

Tysim Kr300e Rotary Drilling Rig Piling Construction EquipmentTysim Kr300e Rotary Drilling Rig Piling Construction Equipment
Tysim Kr300e Rotary Drilling Rig Piling Construction Equipment
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
