• Model NO.：HBT30-1407
• Max . Concrete Pump Pressure：7.4mpa
• Max. Thero. Concrete Delivery：27m3, H
• Max. Vertical Delivery：110 M
• Max. Horizontal Delivery：500 M
• Slump：8-23cm
• Engine：Diesel
• Engine Model：Lovol 1004-4 (Perkins Technology)
• Total Quality：2600kg
• Overall Dimension：5060*1200*1760mm
• Transport Package：Nude
• Specification：ISO9001
• Trademark：kudat
• Origin：China
• HS Code：84134000
• Production Capacity：500unit,Month
• Package size per unit product：5060.00cm * 1200.00cm * 1760.00cm
• Gross weight per unit product：2600.000kg

Basic Info.

Model NO. HBT30-1407 Max . Concrete Pump Pressure 7.4mpa Max. Thero. Concrete Delivery 27m3/ H Max. Vertical Delivery 110 M Max. Horizontal Delivery 500 M Slump 8-23cm Engine Diesel Engine Model Lovol 1004-4 (Perkins Technology) Total Quality 2600kg Overall Dimension 5060*1200*1760mm Transport Package Nude Specification ISO9001 Trademark kudat Origin China HS Code 84134000 Production Capacity 500unit/Month

Packaging & Delivery

Package size per unit product 5060.00cm * 1200.00cm * 1760.00cm Gross weight per unit product 2600.000kg

Product Description

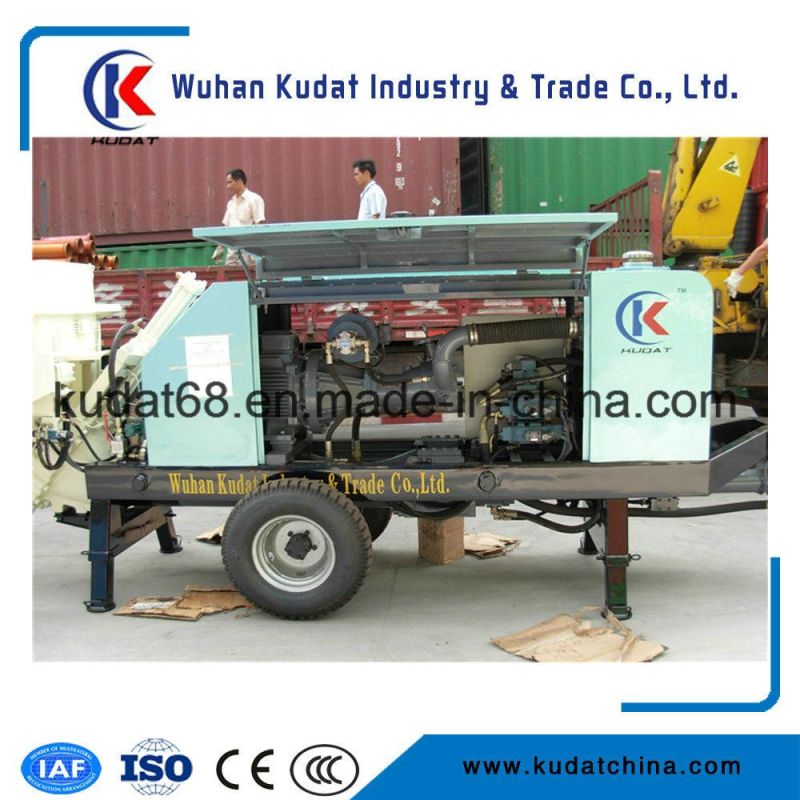

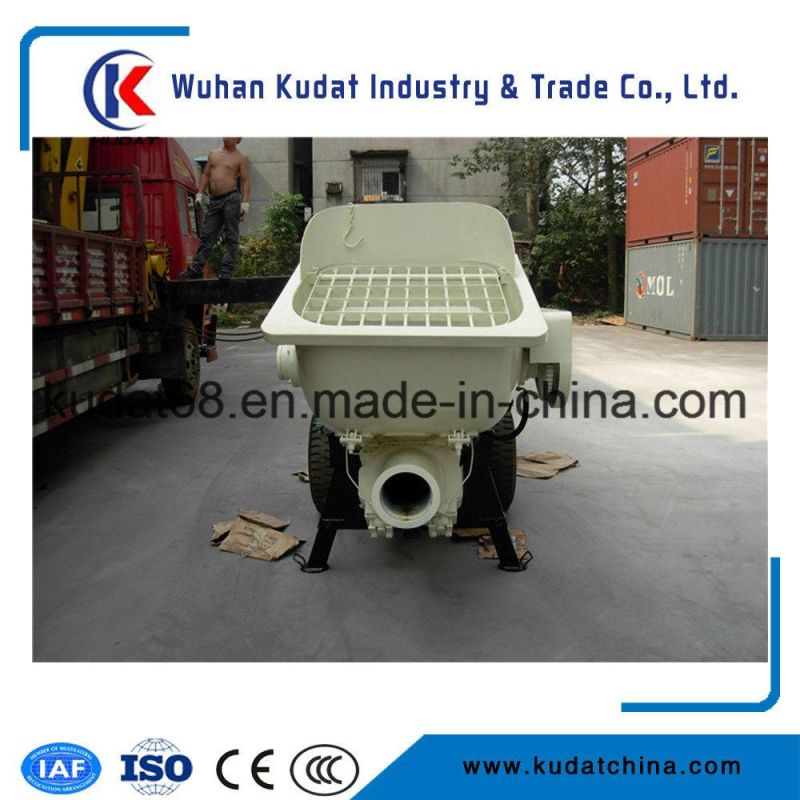

We provide Trailer Mounted Concrete Pump, S valve HBT30, HBT40, HBT60, HBT80 electric and diesel concrete pump with high quality and reasonable price.

Trailer concrete pump Key Specifications/Special Features:

More than 20 types of products specifications
Diesel or electrical engine type
Slide valve and gate valve pumps type
Model: HBT30-1407 concrete mixer
Maximum concrete pump pressure: 7.4Mpa
Maximum thermo concrete delivery: 27m3/h
Maximum aggregate size: 40mm (125A)
Diameter of delivery cylinder x stroke: 195 x 1400mm
Slump: 8 to 23cm
Hopper capacity/material feeding height: 0.25/1, 380m3/mm
Main electric motor: 45kW (37kW optional)
Power supply: 380V, 50Hz

Specification	HBT30-1407
Valve	slidevalve
Max. concrete pump pressure	7.4Mpa
Max. thero. Concrete delivery	27m3/ h
Max. vertical delivery	110 M
Max. horizontal delivery	500 M
Max. aggregate size	40(125A)
Diameter of delivery cylinder × stroke	195× 1400mm
Slump	8-23cm
Oil cylinder × stroke	100× 1400mm
Hopper capacity/ material feeding height	0.25/1380 m3/mm
Main electric motor	45kw(37kw optional )
Mixing electric motor	4kw
Power supply	380V/50Hz
Total quality	2600kg
Overall dimension	5060× 1200× 1760mm
Trailer speed	8km/hour
