• Model NO.：W7100T
• Type：Medium-sized Loader
• Rated Horsepower：102HP,2400rpm
• Rated Bucket Capacity：0.55m3
• Hydraulic Flow Output：78-140L,Min
• Transport Package：None
• Specification：4500Kg
• Trademark：Newland
• Origin：Xuzhou City
• Production Capacity：500pieces,Year

W7100T          SpecificationsRated operating capacity (kg)1300Tipping load (kg)3000Bucket capacity (m3)0.55Operating weight (kg)4500Max. Travel speed (km/h)10/20Hydraulic pump flow (L/min)75/140Fuel tank capacity (L)85Dimensions Height to bucket hinge pin (mm)2920Width with bucket (mm)1850Track width (mm)320Track length (mm)1500Ground clearance (mm)200Engine Maker/ModelWeichai  WP4.1Net power102hp/2500rpmType4 Cylinder in-line, Water cooled, 4 stroke, Diesel engineDisplacement (L)3.9

Performance

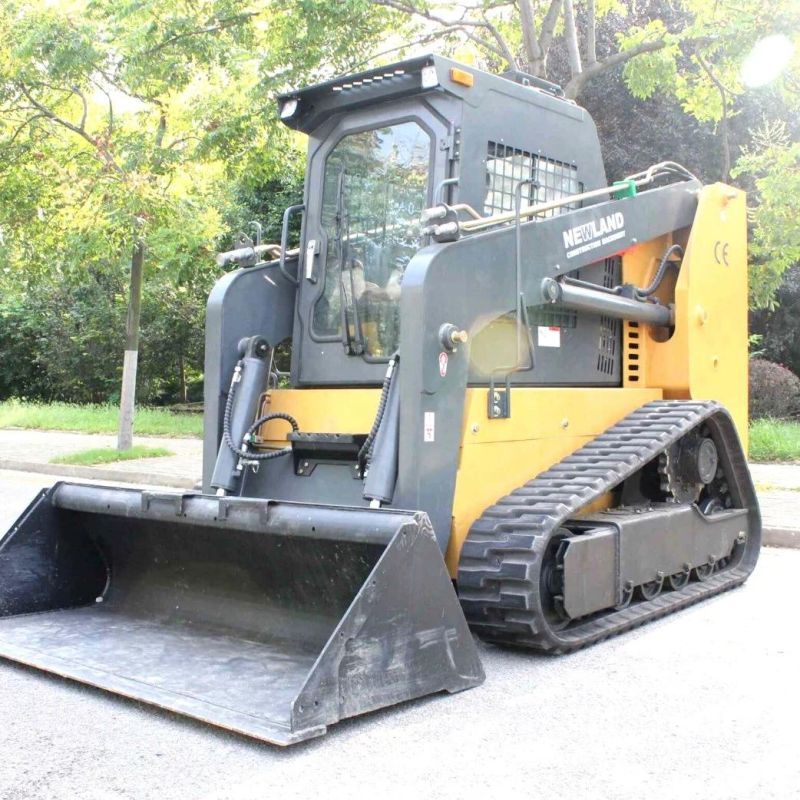

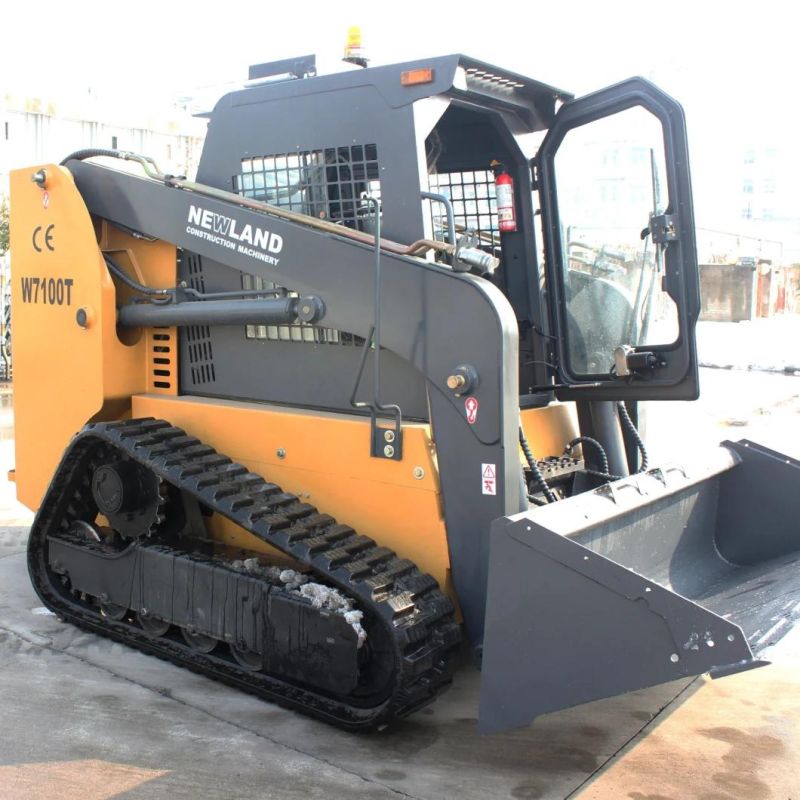

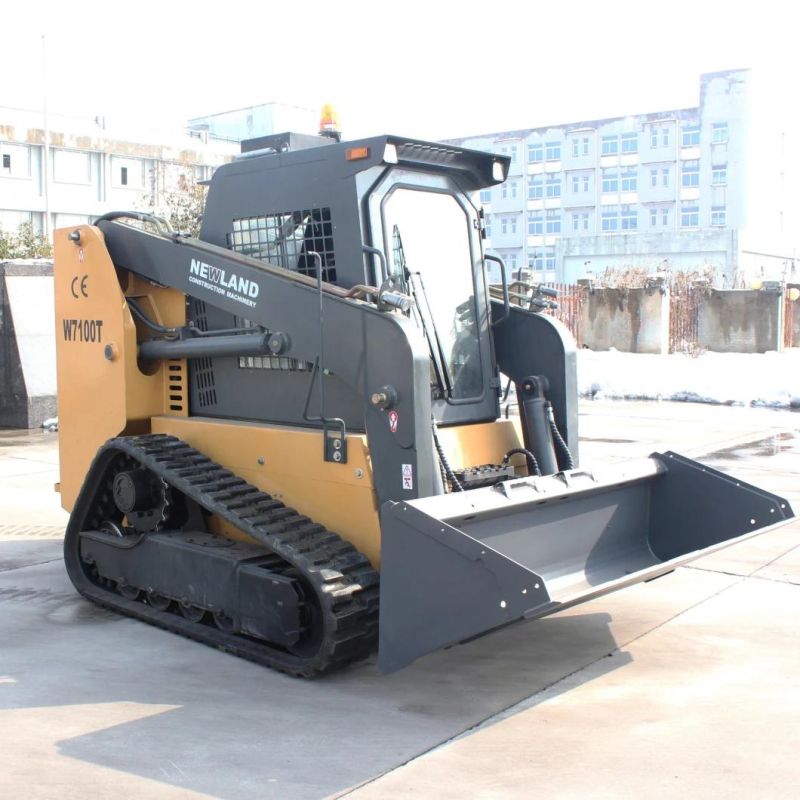

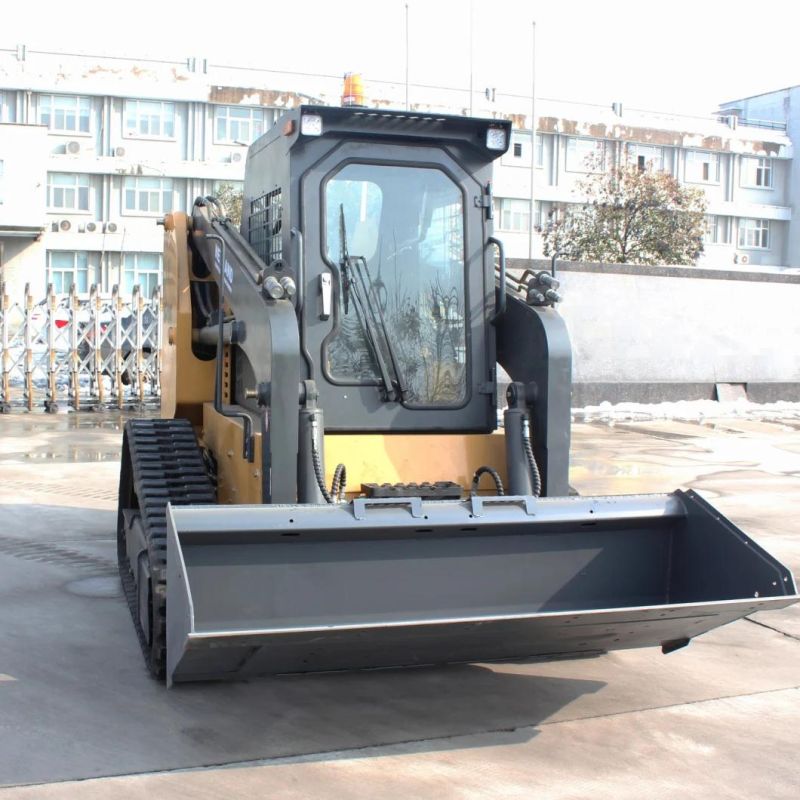

1.The W7100T Skid Steer Loader is a product of superior innovation and well thought-out product development, the production is with a rated loading capacity up to 1300KG(rated bucket capacity: 0.55m³). If you would like to know more detail, please contact us at your earliest convenient time.
2.The new brand production with Perkins engine(with CE/EPA) combining power and efficiency has an excellent thermal dissipation performance due to a over-sized rear cover of the engine.
3.The production is with a high / low temperature start-up system

Main Description
1.Automatic leveling lift action for better control of lifting loads.
2.The chassis aids in superior weight distribution, which further enhances stability.
3.Thick steel plating, heavy-duty pins and bushings make this loader stronger than any other machine in its class.
4.The fuel tank, hydraulic tank and chain box(wheel type) adopt a one-piece welded structure
5.Electronic engine control and double throttle, equipped with LED instrument, including electronic hand and foot throttle provide a precise and comfortable operation, reducing sound level and fuel consumption.

More Features
1. With 360 degree viewing angle, automatic balancing device and reliable cab's bumper.
2. Various kind of attachments for different works.
3. Multiple tire model and tracks model for your choice.
4. Seat safe bar can accommodate operators with a large physique, and can serve as
handrails and support a precise control operation.
5. Cab air-conditioning system can work almost in wide environmental temperature [-40°c ~ 40°c].
6. Equipped with a LED instrument showing data and status.
7. Equipped with a centralized control button, double throttle(electronic hand and foot throttle), cab lifting spring, one-button flow control for attachments, double protection for seat belt and safety handrail and cold & warm integrated air-condition system(optional)

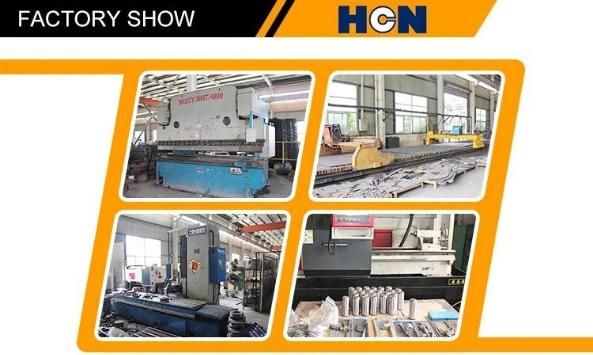

HCN is specialized in manufacturing construction attachments for skid steer loader, backhoe, excavator and loader. And HCN can also design and produce skid steer loader, compact loader and wheel loader. Xuzhou HCN Machinery Technology Co., Ltd has also a subsidiary brand named Newland, which is specialized in designing and producing skid steer loader, compact loader and loader.

HCN has the ability of providing clients around the world with good quality products, customized service (such as customized product, techinical analysis, product refit) and competitive price based on strong technical foundation that has been gradually formed during the past 14 years.

HCN company is located in Xuzhou city, Jiangsu Province. Xuzhou city is the capital of China's construction machinery, whose history of machinery manufacturing can be traced back to the year of 1943 (China's first crane truck and road roller). There are more than 300 large, medium and small machinery factories in the city. And Xuzhou city has some international famous manufacturers like Caterpillar, Liebherr, XCMG, Doosan, Global Casting, Kennametal, etc. In this kind of atmosphere in which HCN company immerses, the factory possesses the nearly same level with the top brand factory on product-producing process.
