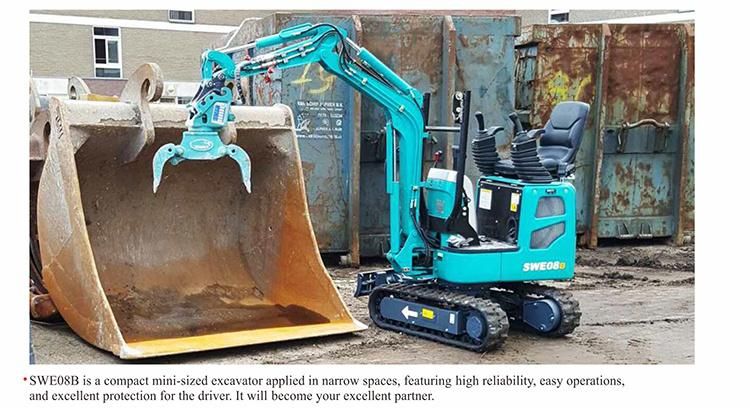

Cash Coupon Sale! Sunward Swe08b Excavator Small Digger From Chinese Supplier
Sunward Intelligent Equipment Co., Ltd.- Certification：ISO9001
- Condition：New
- Warranty：2 Years
- Rated Speed：2.9,Km,H
- After Warranty Service：Video Technical Support
- Maximum Digging Depth：1825mm
Base Info
- Power：7.2kw,2400rpm
- Maximum Digging Height：3085mm
- Color：Blue
- Core Components：Motor, Bearing, Gearbox
- Applicable Industries：Manufacturing Plant
- Unique Selling Point：High Digging Power
- Machinery Test Report：Provided
- Max Digging Radius：1221mm
- Local Service Location：India
- Showroom Location：India
- Engine Brand：Isuzu
- Trademark：SUNWARD
- Origin：Hunan, China
- Production Capacity：100000 Set,Sets Per Year
Description

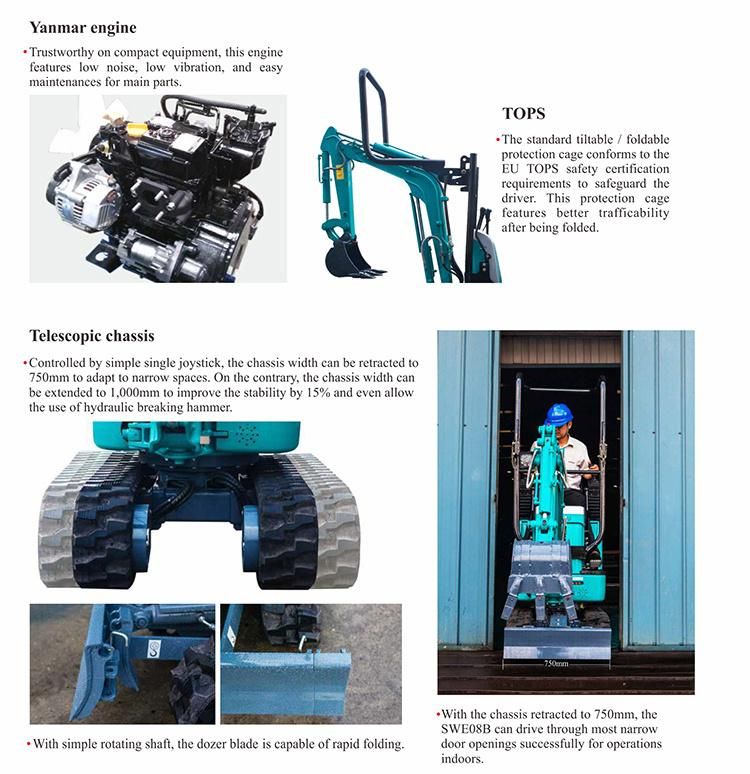

Product DescriptionType of cabCanopy Bucket capacity,std. 0.022m3 Bucket width 320mm Machine weight 1010kg Overall length 2640mm Overall height 2250mm Overall width 750mm Ground clearance 131mm Brand Yanmar Model 2TNV70-PSU Displacement 0.57L Output 7.2kW/2400rpm Max. cutting height 3085mm Max. loading height 2305mm Max. digging depth 1825mm Max. digging reach 3180mm oom swing angle(left/right) 73°/53° Front swing radius 1221mm Tail swing radius 750mm Max. digging force(Arm) 5.8kN Max. digging force(Bucket) 9.4kN Track Type Rubber track Track width 180mm Track length 1299mm Length to center of rollers 975mm Lenhth to center of track 560/820 mm Travelling speed(High/Low) 2.9/1.5 km/h Gradeability 30° Swing speed 8.2rpm Ground pressure 24.5kPa Dozer size Width 750/1000 mm Height 190mm Lifting capacity (Height/Depth) 225/225 mm Type 3 Gear pump Displacement 3*9.6L/min 2*16MPa Fuel tank capacity 10L Hydraulic oil tank capacity 9.5L
Dimensions
Engine
Working ranges
Undercarrige
Hydraulic pumps
Hydraulic pressur
