• Model NO.：JC45
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Product Name：Skid Steer Loader
• Rated Horsepower：37kw

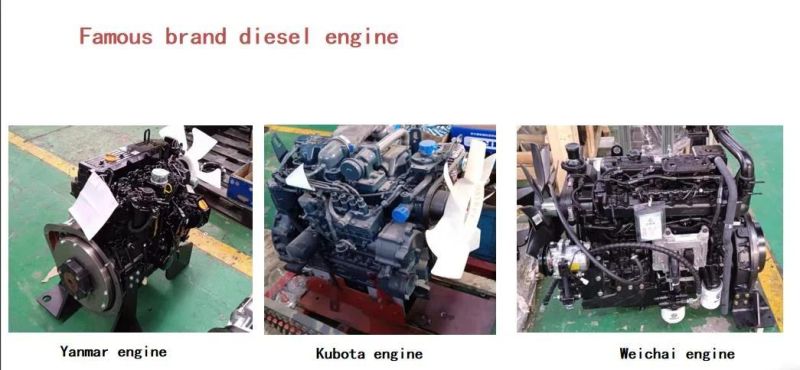

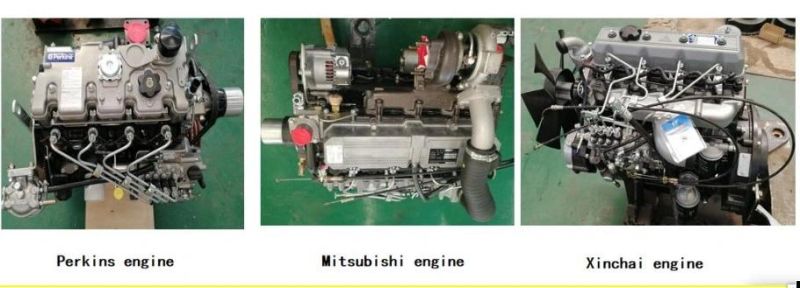

• Engine Brand：Xinchai,Yanmar,Perkins
• Tandem Pump：Italy,Eton
• Hydraulic Motor：American Eton
• Multi-Way Valve：Italy
• Bucket Capacity：0.4cbm
• Tire Model：10-16.5
• Overall Weight：3100kgs
• Max Speed：12km,H
• Transport Package：Nude Packing
• Specification：LxWxH: 3420x1740x2140mm
• Trademark：Luyue brand
• Origin：Made in China
• HS Code：84295100
• Production Capacity：600units,Year

Basic Info.

Model NO. JC45 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Product Name Skid Steer Loader Rated Horsepower 37kw Engine Brand Xinchai/Yanmar/Perkins Tandem Pump Italy/Eton Hydraulic Motor American Eton Multi-Way Valve Italy Bucket Capacity 0.4cbm Tire Model 10-16.5 Overall Weight 3100kgs Max Speed 12km/H Transport Package Nude Packing Specification LxWxH: 3420x1740x2140mm Trademark Luyue brand Origin Made in China HS Code 84295100 Production Capacity 600units/Year

Product Description

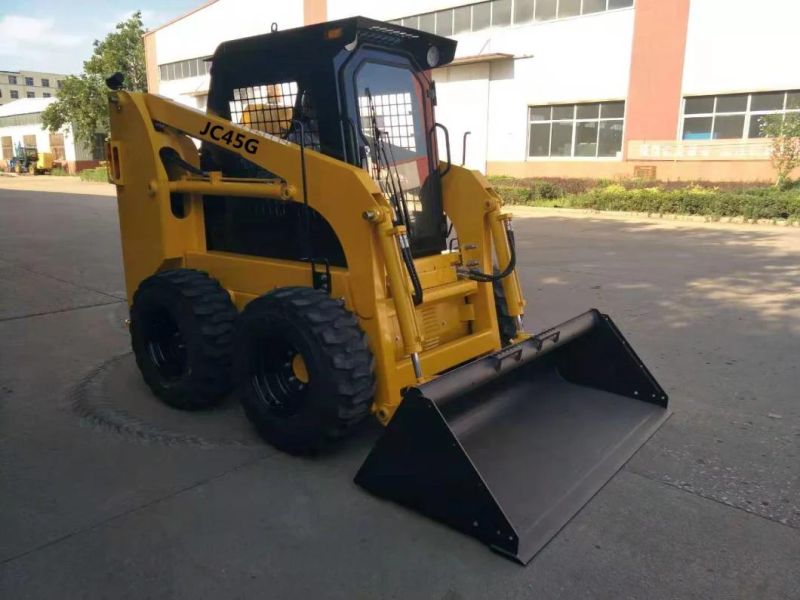

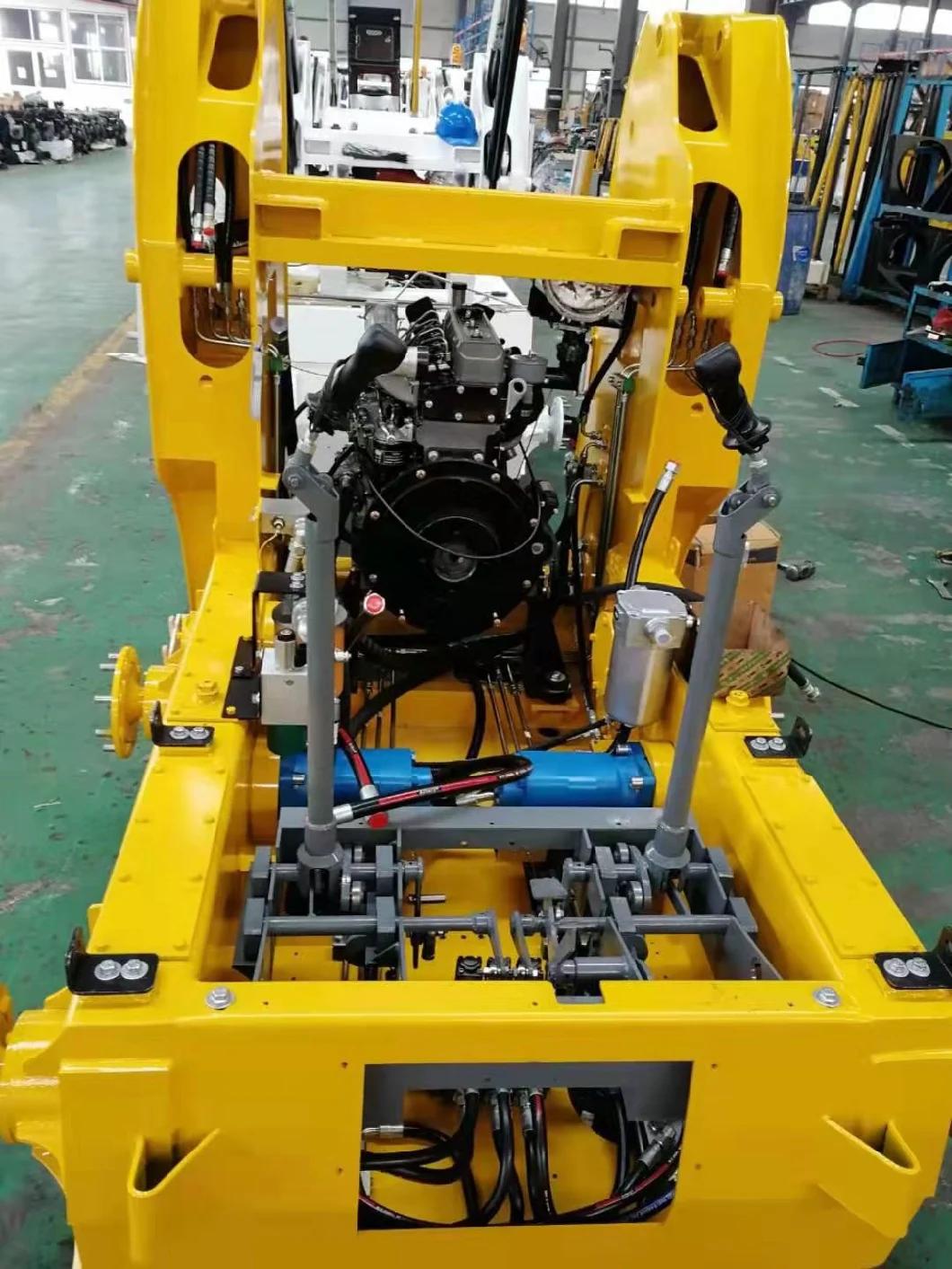

Standard configuration of JC45G skid steer loader
       Chinese xinchai brand diesel engine C490BPG

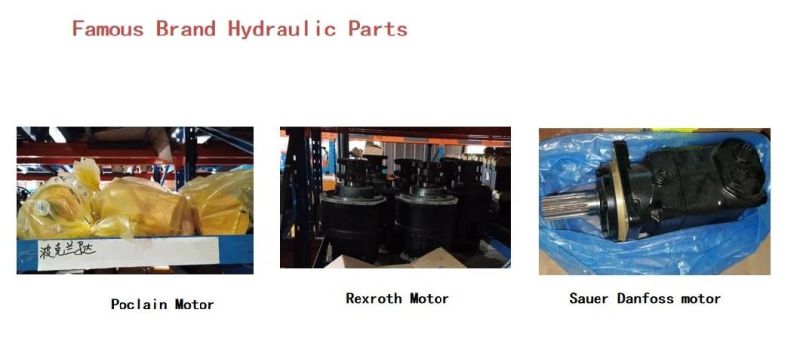

• America Sauer danfoss brand hydraulic pump
• America Eaton brand hydraulic motor
• open cabin with mechanical control system
• Auto-levelling system
• Hydraulic brake
• Bobcat type quick hitch and coupler
• Standard bucket

• Item	Description	Item	description
  Rated operating capacity(kg)	700	Hinge pin height (mm)	3080
  Tipping load (kg)	1400	Total height (mm)	2050
  Bucket capacity(m3)	0.4	Length with bucket (mm)	3420
  Hydraulic pump flow (L/min)	75	Length without bucket(mm)	2640
  Engine power (hp)	50	Width with bucket (mm)	1740
  Weight(kg)	3100	Track width (mm)	1450
  Max travel speed (km/h)	12	Wheelbase (mm)	991
  Grade ability	20	Ground clearance (mm)	185
  Tire	10-16.5	Dumping angle	40
  Fuel/hyd oil capacity (L)	65/65	Dumping height (mm)	2380
  Height at maximum extension	3980	Maximum reach (mm)	750

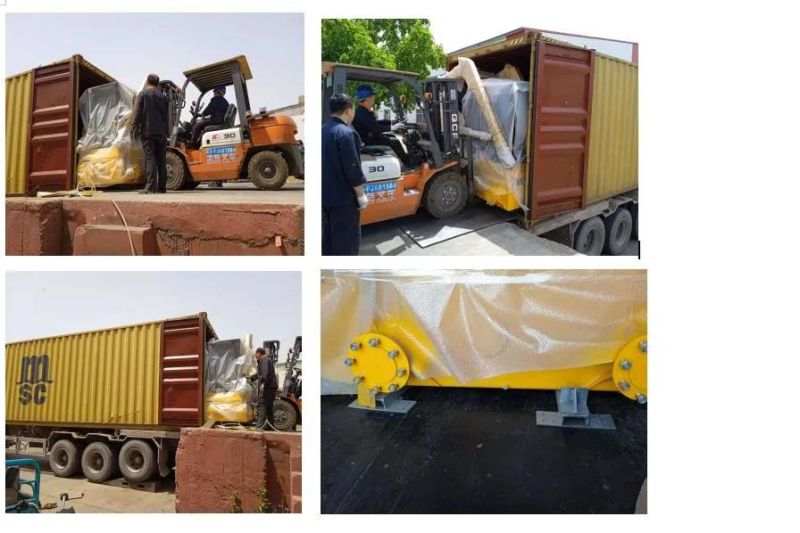

Shippment and Delivery

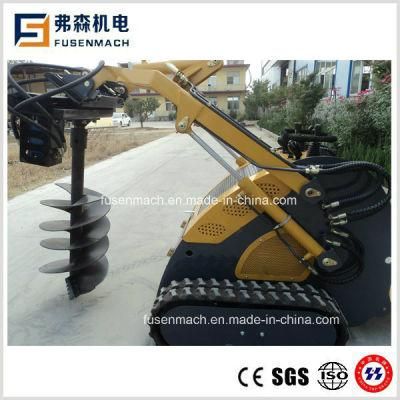

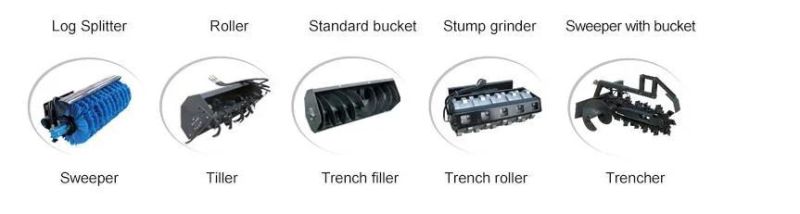

Various Attachments
