• Model NO.：LT936
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Cummins or Deutz
• Rated Power：92kw
• Bucket Capacity：1.7 M3
• Operating Weight：10, 100 Kg
• Tire Type：17.5-25
• Wheelbase：2850mm
• Maximum Dumping Height：3400mm
• Engine Power：74~147kw
• Color：Yellow
• Transport Package：Container or by Bulk
• Specification：7200mm*2350mm*3200mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：800units,Year

ModelLT932Operating  weight10,100 kgRated load3,000 kgBucket capacity1.7m³Engine modelDeutz WP6G125E22Rated engine power92kwRated rotate speed2200r/minMaximum torque500N.mBreakout force98KNForward 10-8km/hForward 20-13.5km/hForward 30-25km/hForward 40-36km/hReverse 10-9.5km/hReverse 20-30km/hGrade ability28°Overall length7200mmOverall width2350mmOverall height3200mmWheel base2850mmTrack base1800mmMinimum ground clearance450mmMaximum dumping height3400mmMaximum dumping reach1290mmRaise time≤6.8sTotal≤12.5sFuel Tank180LTire type17.5-25
Product Features

1.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.

2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

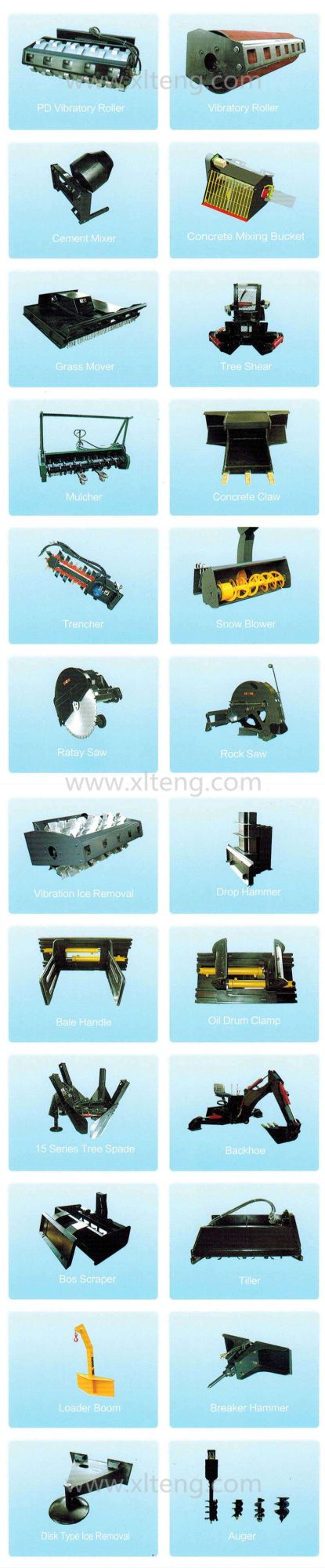

5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.


After sales service

Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

Customer

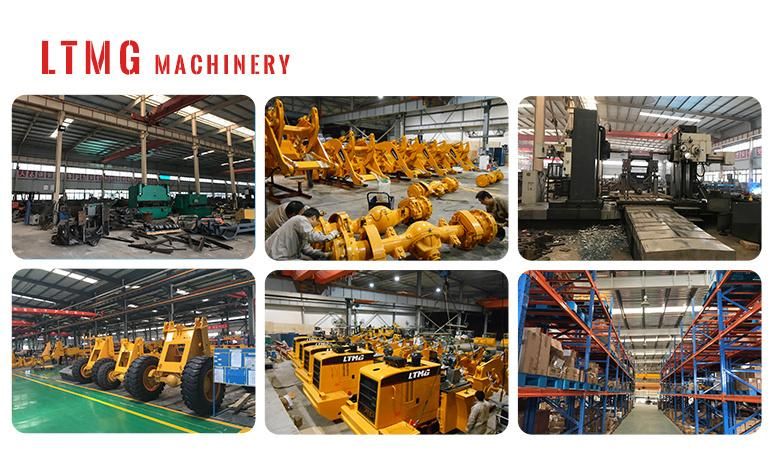

Factory
