• Model NO.：LT956
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Tire Type：23.5-25
• Total Action Cycling Time：11.5s
• Wheel Base：2900mm
• Track Base：2260mm
• Max. Dumping Height：3000mm
• Rated Power：162kw,2000rpm
• Overall Length：7660mm
• Operating Weight：16,500 Kg
• Bucket Capacity：3m3
• Transport Package：Fixed in Container or Nude Packing
• Specification：7660mm*2870mm*3410mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Units,Year

ModelLT956Operating weight16,500 kgRated load5,000 kgBucket capacity3 m³Engine modelWEICHAI WD10G220E23
SHANGCHAI  SC11CB220G2B1
CUMMINS 6CTA8.3-C215Rated power162KWRated rotate speed2000r/minMax. torque≥745.3N.mBreakout force145KNForward 10-11.5km/hForward 20-38km/hReverse 10-16km/hGrade ability28°Overall length7660mmOverall width2870mmOverall height3410mmBucket width3000mmWheel base2900mmTrack base2260mmMin. ground clearance470mmMax. dumping height3000mmMax.dumping reach1300mmHydraulic Torque converterSingle stage,4elementsTransmissionPlanet-typeRaise time≤6.3sTotal≤11.5sTire type23.5-25   20PR
Product Features

1.Effective operation:
Centered design, small turning radius, more flexible. The working efficiency is 15% higher than the traditional types.

2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

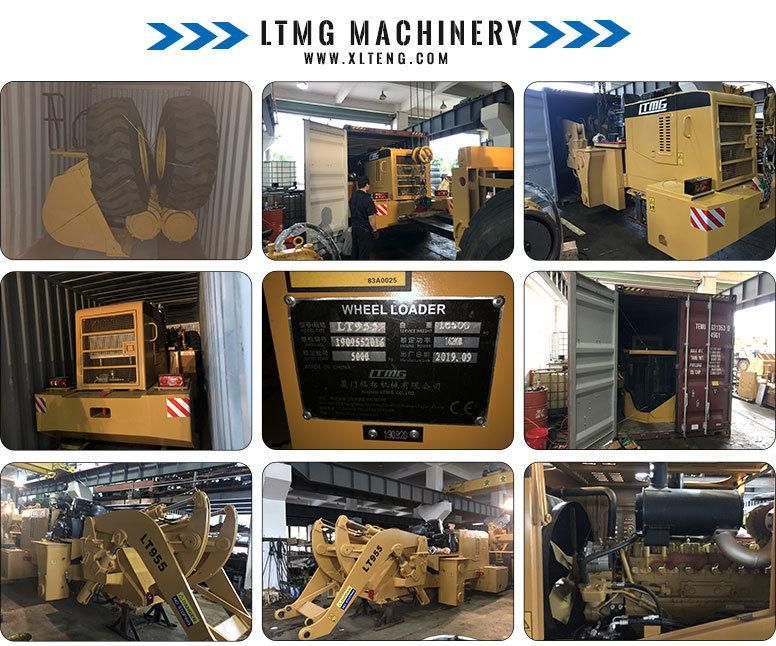

packaging&shpping



After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

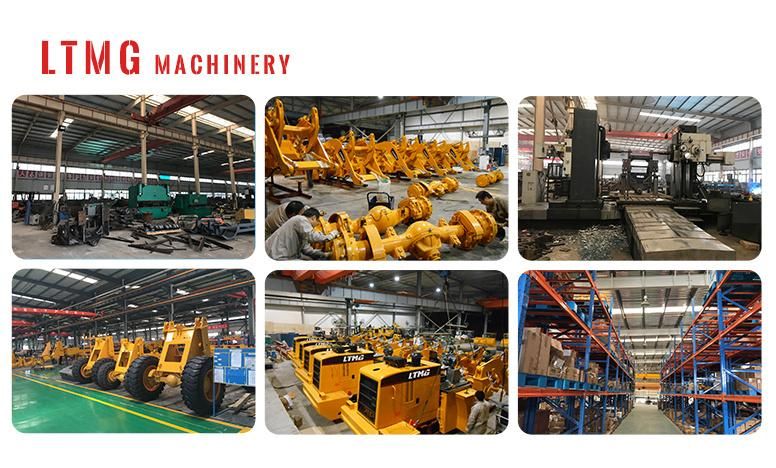

Our factory

Our customer & Exhibition
