• Model NO.：LT958
• Walking Mode：Wheeled
• Type：Large Loader
• Color：Yellow
• Dimension：7950mm*2870mm*3500mm
• Grade Ability：28deg
• Bucket Capacity：3 M3
• Overall Length：7950mm
• Tire Type：23.5-25 20pr
• Max. Dumping Height：3300mm
• Wheel Base：3300mm
• Brand：Ltmg
• Transport Package：Fixed in Container or Nude Packing
• Specification：7950mm*2870*3500mm
• Trademark：LTMG
• Origin：China
• HS Code：8429510000
• Production Capacity：300 Units,Month

ModelLT958Operating weight17,100 kgRated load5,000 kgBucket capacity3 m³Engine modelWEICHAI WD10G220E23
SHANGCHAI  SC11CB220G2B1
CUMMINS 6CTA8.3-C215Rated power162KWRated rotate speed2000r/minMax. torque≥745.3N.mBreakout force145KNDriving speed Forward 10-11.5km/hForward 20-38km/hReverse 10-16km/hGrade ability28°Overall length7950mmOverall width2870mmOverall height3500mmBucket width3000mmWheel base3300mmTrack base2260mmMin. ground clearance470mmMax. dumping height3300mmMax.dumping reach1400mmHydraulic Torque converterSingle stage,4elementsTransmissionPlanet-typeRaise time≤6.8sTotal≤12.5sTire type23.5-25   20PRProduct Features

1.Reliable operation
17.1 ton operation weight ensures that the machine could adapt to various tough condition. With the long wheelbase of 3300mm and long machine body of 7950mm, the machine is ahead in the industry in terms of the operation reliability.

2.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.

3.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

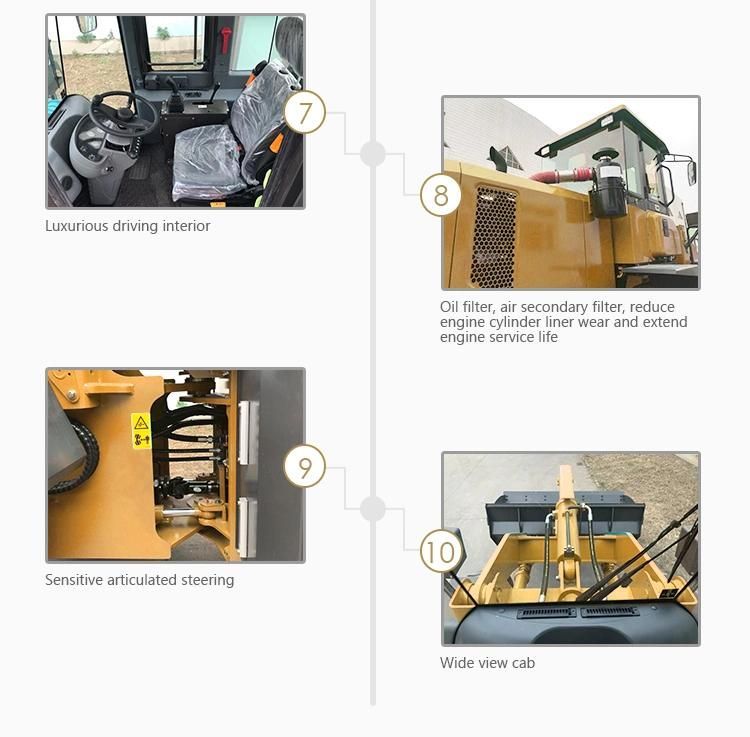

4.Novel appearance and humanized design:
Cabin with broad view.Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.

5.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

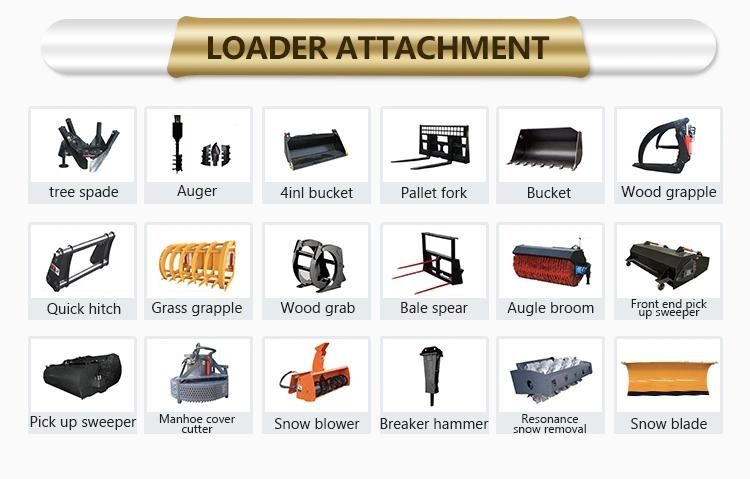

6.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.

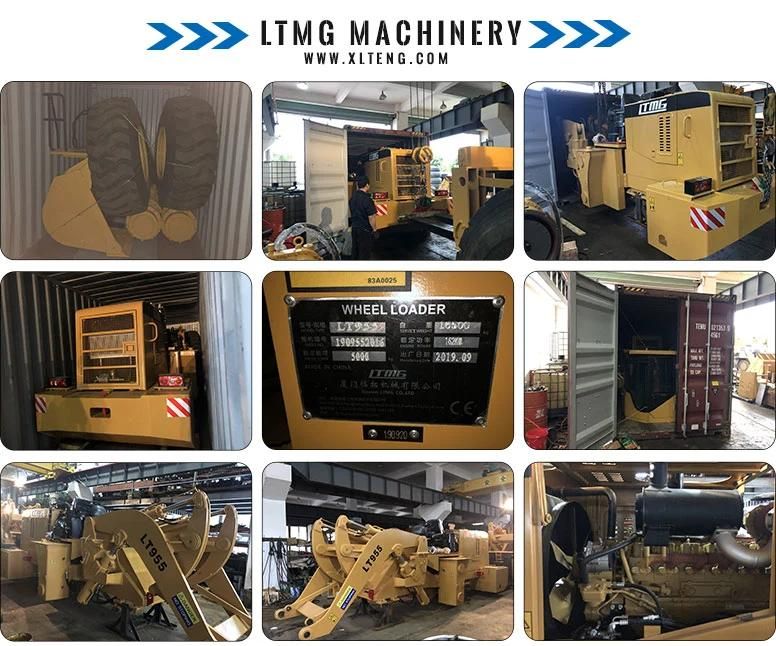

 packaging&shipping



 After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity
