Zoomlion Earthmoving Machinery 26ton Crawler Excavator Ze260e with Good Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：ZE260E
- Drive Type：Electric Drive
- Bucket Capacity：1.2cbm
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Mass：24500kg
- Swing Speed：11.2r,Min
- Maximum Drawbar Pull：215kn
- Bucket Digging Force(ISO)：173kn
- Arm Digging Force(ISO)：125kn
- Travel Speed (High / Low)：3.1,5.6km,H
- Engine Manufacturer：Cummins
- Rated Power：133,2000kw,Rpm
- Max. Digging Depth：6870mm
- Max. Digging Height：10000mm
- Transport Package：Container,RO-RO
- Specification：8090* 2580* 2900 mm
- Trademark：ZOOMLION
- Origin：China
- HS Code：8429521200
- Production Capacity：100,Month
Description
Key ParameterWorking mass kg 24500 Rated power kw/rpm 133/2000 Standard bucket capacity(SAE) m3 1.2 System flow
(Max. pressure/ Max. flow) - 32.4/35.3 Mpa
2×220 L/min Engine model - Cumins B5.9-C(178hp) Max. torque N.m/rpm 708/1500 Traveling speed (low/high) km/h 3.1/5.6 Slewing speed rpm 11.2 Gradeability° ° 35° Max. drawbar pull kN 215 Digging force of bucket (ISO) kN 173 Digging force of stick (ISO) kN 125 Basic Parameter Slewing radius of tail mm 2920 Tail length mm 2890 Counterweight ground clearance mm 1050 Min. ground clearance mm 453 Ground contact length mm 3840 Track length mm 4640 Track gauge mm 2590 Track width mm 3190 Track shoe width mm 600 Height of grouser mm 26 Slewing table width mm 2720 Operating Range Max. excavating radius mm 10190 Max. excavating distance mm 10010 Max. excavating height mm 10000 Max. discharging height mm 7080 Max. excavating depth mm 6870 Max. vertical excavating depth mm 5880 Min. slewing radius of front mm 3410
(Max. pressure/ Max. flow)
2×220 L/min

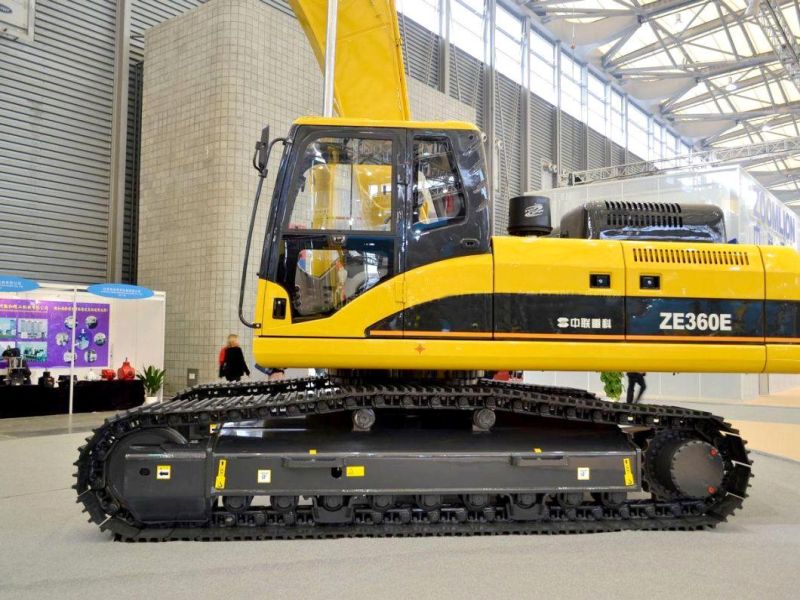

Pictures
