• Model NO.：RG150XE
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Max Digging Height：8641mm
• Max Digging Reach：8296mm
• Engine Model：Bb-4bg1trp
• Output Power：72.7,2200kw
• Operating Weight：13000 Kgs
• Torque/Speed：337.6,1600n.M
• Main Pump：2

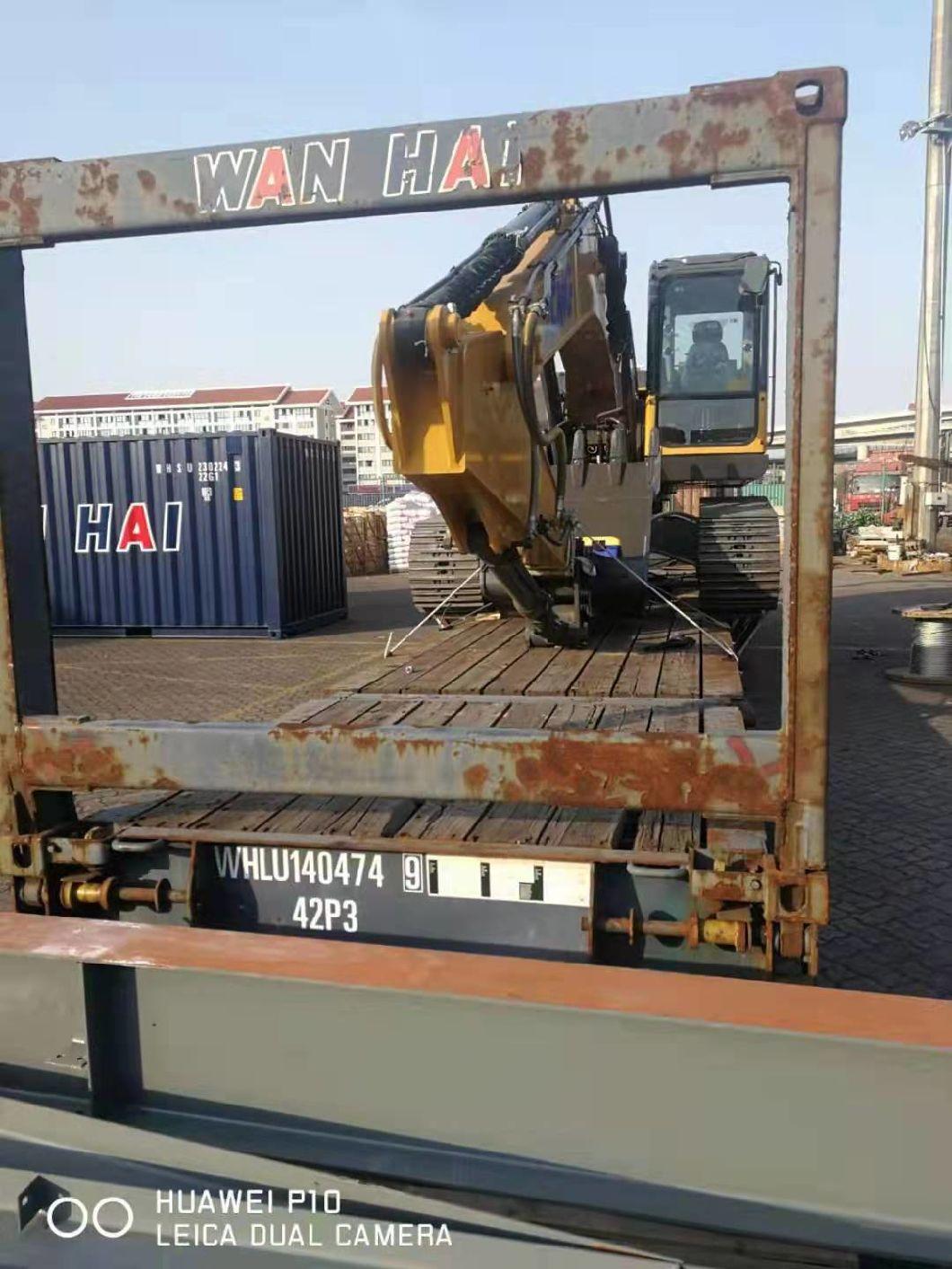

• Transport Package：Container, RO-RO
• Specification：6482*2552*3158mm
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：87059091
• Production Capacity：5000

Basic Info.

Model NO. RG150XE Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Max Digging Height 8641mm Max Digging Reach 8296mm Engine Model Bb-4bg1trp Output Power 72.7/2200kw Operating Weight 13000 Kgs Torque/Speed 337.6/1600n.M Main Pump 2 Transport Package Container, RO-RO Specification 6482*2552*3158mm Trademark Raygoo Origin Fujian, China HS Code 87059091 Production Capacity 5000

Product Description

21 ton medium size Hydraulic Crawler Excavator

1. Specification:

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of tcuket	KN	60
Digging capacity of tcuket rod	KN	65
Min.turning radius	mm	6500
Travel speed	Km/h
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112

2. Working on Earth and stone construction projects

(1) in the aspects of airport,
(2) highway bridges,
(3) housing construction,
(4) road engineering,
(5) oil field, urban construction, irrigation and water conservancy
(6) port construction
..............

3. Features advantage:
powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements.

4. Other Advantages for our excavactor:

Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
