• Model NO.：JC
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：2 Sets,20′′ Container
• Specification：3350× 1720× 2050mm
• Trademark：LIFTOR
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：3000,Month

Basic Info.

Model NO. JC Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Transport Package 2 Sets/20′′ Container Specification 3350× 1720× 2050mm Trademark LIFTOR Origin Jiangsu, China HS Code 84295100 Production Capacity 3000/Month

Product Description

CE ISO EPA LIFTOR New Mini 50HP 65HP 75HP 85HP 1T 2T 3T 5T Skid Steer Loader Micro Wheel and Track Steer Skid Loader with Attachment Parts Price for Sale

LIFTOR Skid Steer Loader can be widely used in public works, agriculture and forestry construction.
Suitable for loading and unloading loose materials with flexible operation and high working efficiency.

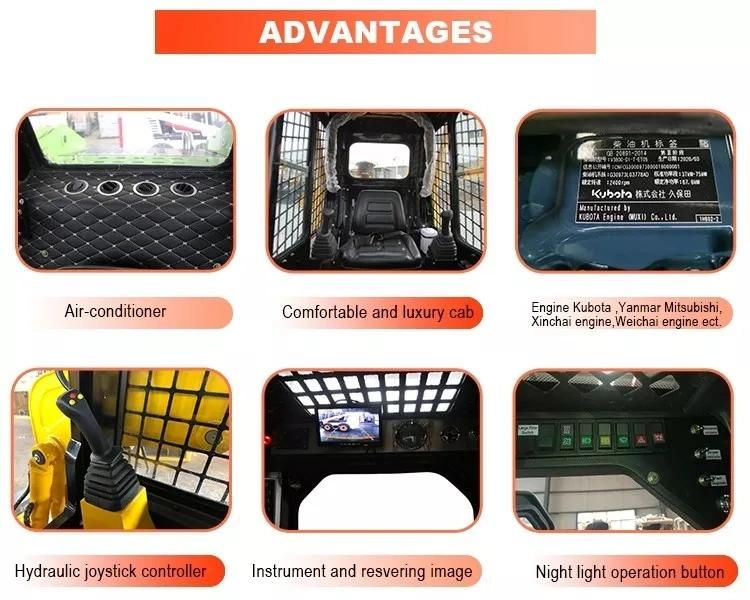

LIFTOR Skid Steer Loader Features:

1. Compact structure, maneuverable movement suitable for narrow space operation
2. Close cabin with air conditioner
3. Joystick control, big flow hydraulic system
4. Auto-leveling system

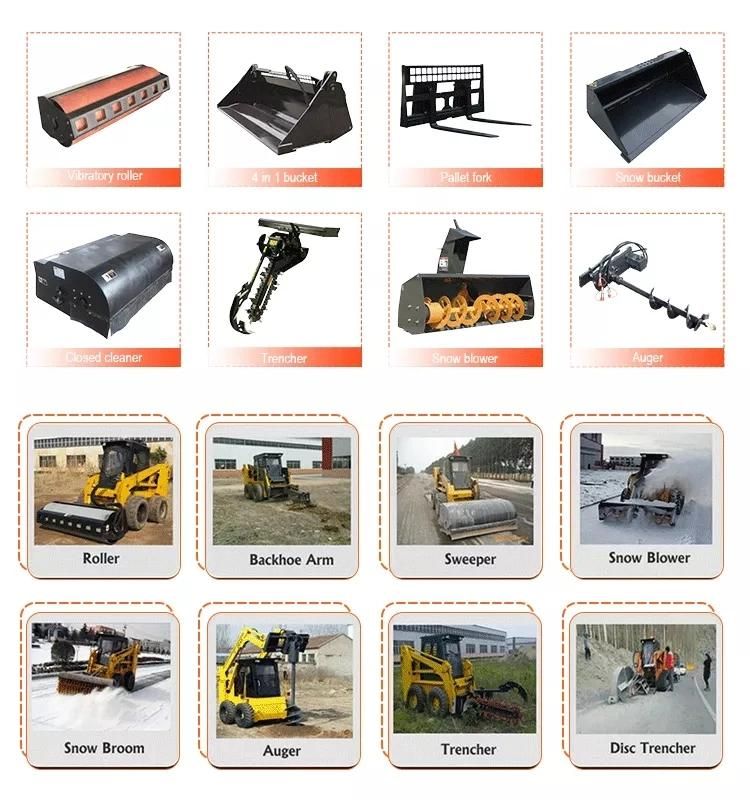

5. Multi-function with a wide range of attachments
6. Hydraulic brake
7. Famous brand hydraulic system: German Rexorth pump and motor


LIFTOR Skid Steer Loader Parameters:


Model	JC30	JC40	JC45	JC60	JC65	JC100
Operating load (kg)	300	500	700	850	1050	1100
Max Speed(km/h)	9	10	12	12	12	1218
Rated flux (L/min)	37	60	62.5	75	75	75
High Flow Flux (L/min)					120	140
Tire(track) model	23×8.5-15	8.5-15	10-16.5	12-16.5	12-16.5	12-16.5
Rated power (Kw)	18.4	37	37	45	55	74
Fuel tank capacity (L)	25	60	70	80	75	90
self weight bucket (kg)	1500	2300	2700	2800	3500	3550
Bucket capacity (m³)	0.2	0.3	0.4	0.4	0.5	0.55
Overall operating height (mm)	3126	3300	3980	4000	4070	4070
Height to bucket hinge pin (mm)	2399	2725	3080	3100	3150	3150
Hheight to top of cab (mm)	1813	2000	2140	2160	2160	2160
Height to bottom of level bucket(mm)	2399	2558	2913	2933	2983	2983
Without bucket length(mm)	1918	2300	2640	2750	2880	2880
Overall length with bucket(mm)	2560	2950	3420	3490	3580	3580
Dumping angle at maximum height(° )	36	40	40	40	40	40
Dumping height(mm)	1882	2050	2380	2400	2450	2450
Dumping reach(mm)	458	790	700	750	700	700
Rollback o bucket on ground(° )	24	30	30	30	30	30
Rollback of bucket at full height(° )	97	104	104	104	104	104
Wheelbase(mm)	722	897	991	991	1115	1185
Ground clearance(mm)	148	140	185	205	205	205
Angle of departure(° )	28	20	20	20	20	20
Front turning radius without bucket(mm)	971	1098	1168	1198	1250	1278
Front tuning radius(mm)	1557	1760	1958	1958	2112	2144
Rear tuning radius(mm)	1146	1296	1630	1728	1774	1857
Rear axle to bumper (mm)	738	964	1108	1208	1082	1082
Tread width (mm)	747	1080	1450	1500	1500	1500
Width (mm)	900	1350	1720	1880	1880	1880
Bucket width (mm)	914	1400	1740	1880	1880	1880

LIFTOR Skid Steer Loader Details:

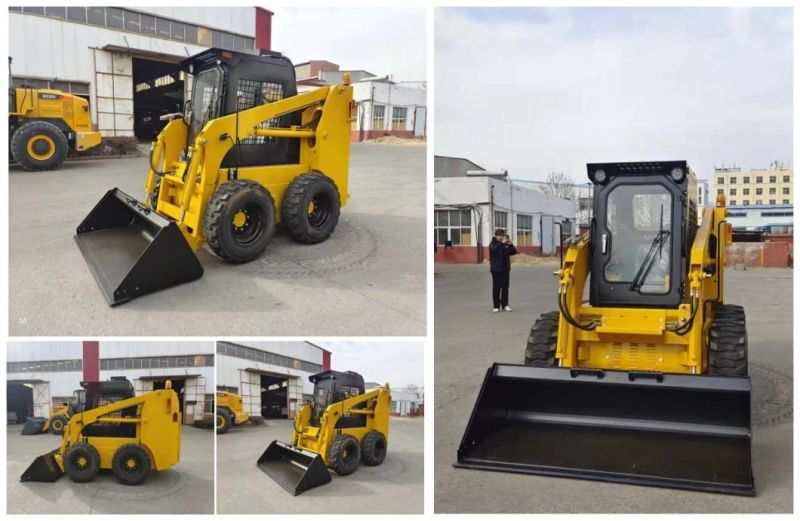

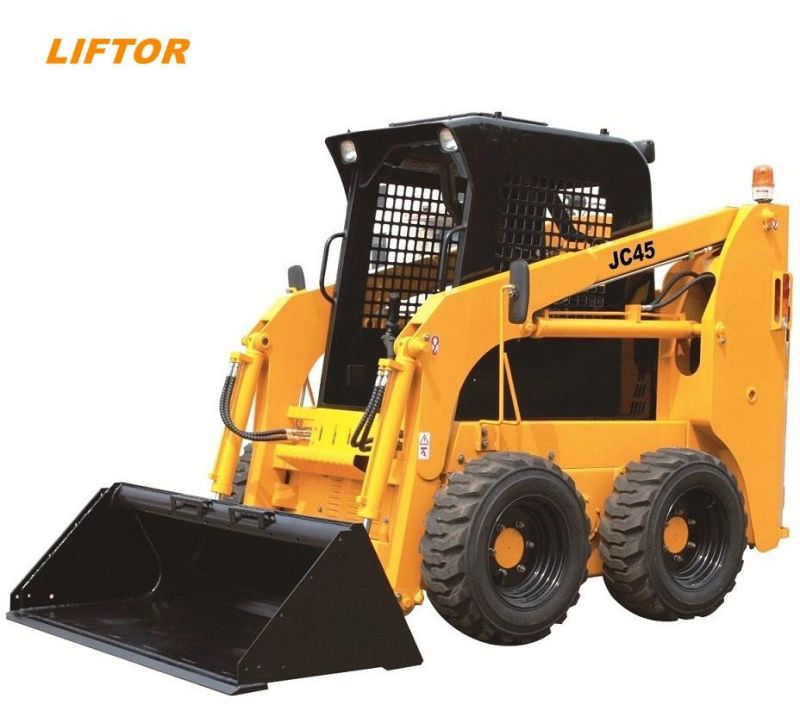

LIFTOR Skid Steer Loader Pictures:


LIFTOR Factory:


Package & Delivery:


FAQ:

Q: Why should I choose Wolf instead of other brands?

A:  With 10 years' exporting experience, Wolf has been a well known brand in the market, now you can see LIFTOR machines in more than 50 countries.
What we can provide:1. Quality machines, CE certificated.2. More competitive price based on same configuration machines.3. More timely and effective service base on same price.
Q: What is your delivery time?

A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?

A: Normally we use T/T 30% deposit for production, balance 70% before shipment. Or upon loading photos.

Q: What color can I choose?

A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color when you order more.

Q: Can I see the loader production progress after order?

A: Yes, during production, we could take some photos/videos for your reference.

Q: What kind of service can I get from you if I buy? How can I get parts?

A: We have 1 year warranty for each machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge, within 5 working days. We have professional after sales department to support for you at any time.
