• Model NO.：XS163J
• Compaction Depth：40cm
• Engine Type：Diesel Engine
• Travel Speed：30cm,s
• Centrifugal Force：30.5KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2008
• Condition：New
• Operating Weight：16000kg
• Load Applied on Front Drum：7700kg
• Static Linear Pressure：362n,Cm
• Theoretical Gradeability：30%
• Min. External Turning Radius：6500mm
• Max. Power：103kw
• Vibration Frequency：28Hz
• Exiting Force：290,145kn
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：1000 , Year

Overview Product Description

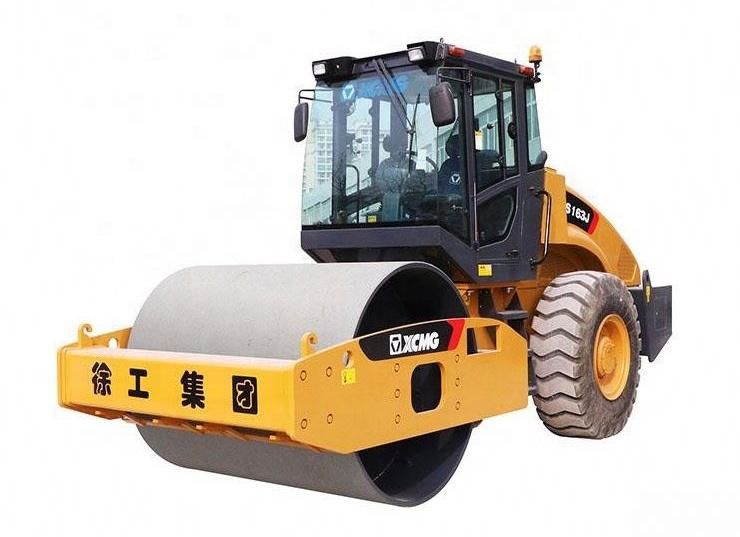

XS163J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Performance Characteristics:

* Use the H-series, water cooling, four-cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine manufactured by Shanghai. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction. Engine fulfills the requirements of China stage II emission standards.

* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

* Use the mechanical gear box with synchro mesh unit to realize convenient operation.

* Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability. Clutch is directly installed on the engine flywheel, and the operation mechanism of main clutch is the air assisted mechanism which greatly reduces the operating force.

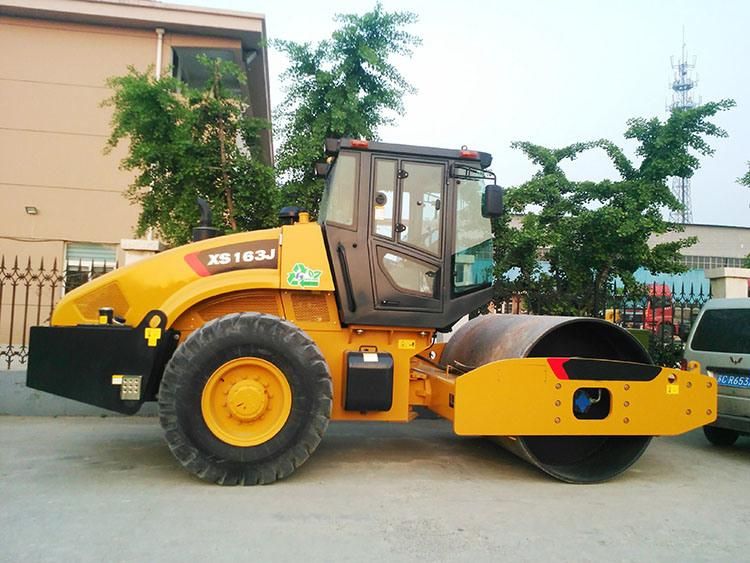

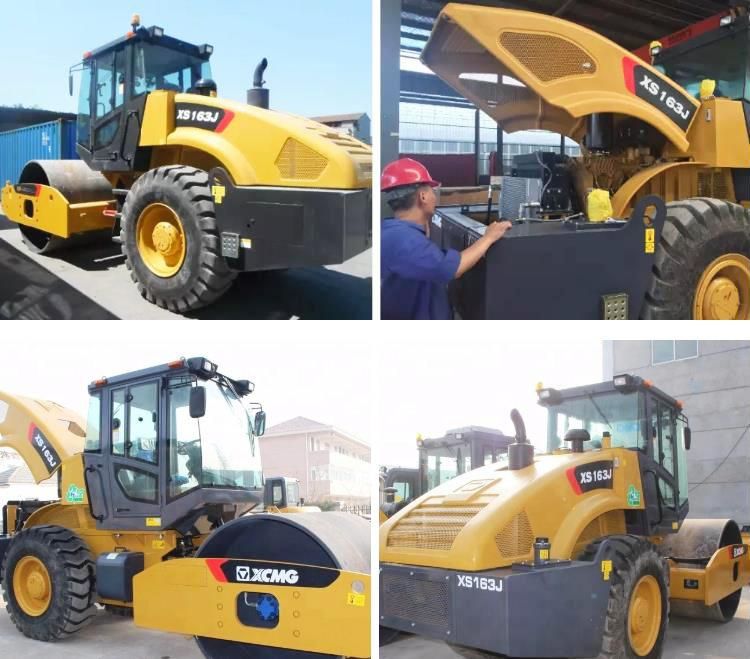

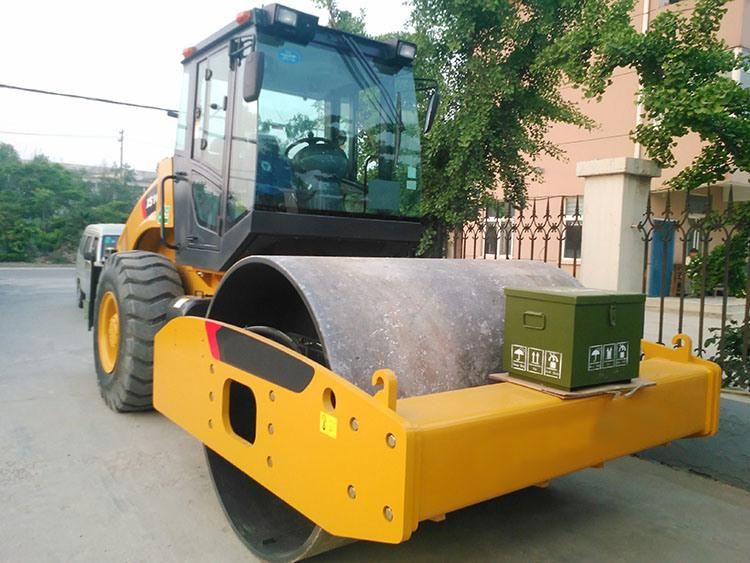

* Double frequency and double amplitude can meet the requirements of different working conditions; hydraulic vibration system consists of gear pump and motor to form an open system; its control mode is electronic control. Guarantee the demand of vibration parameter and reliability of vibration system.Product ParametersProduct Show

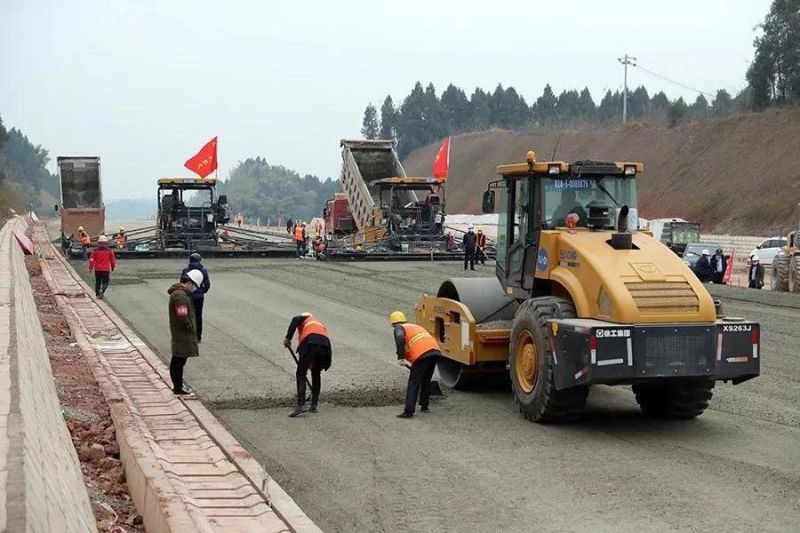

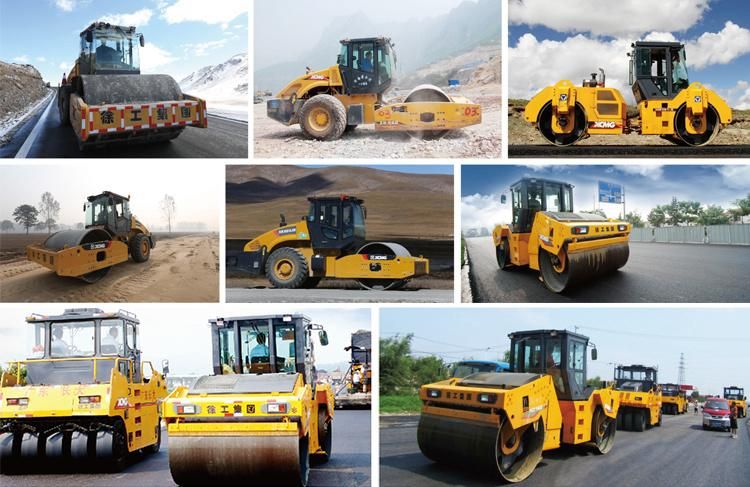

Case

Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
