• Model NO.：D-800
• Voltage：380V
• Vertical Delivery Distance：30M
• Horizontal Delivery Distance：60M
• Hopper Volume：100L
• Transport Package：Wooden Box
• Specification：1700*450*1100mm
• Origin：China
• HS Code：84243000
• Production Capacity：50000pieces,Year
• Package size per unit product：1700.00cm * 800.00cm * 1100.00cm
• Gross weight per unit product：350.000kg

 Modle31131851171112/18Power4kw4kw7.5kw7.5kwdieselVoltage220v/380v220v/380v380v380v12hp/18hpInput pressure3mpa4mpa6mpa6mpa4mp/6mpHorizontal distance15m15m20m20m15m/20mVertical distance 10m10m15m15m10m/15mThrough the particles≤3mm≤3mm≤5mm≤7mm≤5mmweight150kg150kg220kg280kg350kgSpraying speed50m²/h60m2/h150m²/h200m²/h60m²/h / 200m²/hSize1300*450*600mm1200*450*600mm1700*550*700mm1800*600*700mm1700*800*1100mmOperation steps of diesel spray machine:
1. Place the machine in a flat and safe area and have a professional electrician connect to the power cord.
2.Add clean water to the water tank until the contents float.
3. Fill the oil tank and tighten the oil cap.
4. Vent the bottom of the tubing until there is no air.
5. Open and merge fixed
6. Connect to the pipe, air pipe, material pipe, and spray gun.
7. After adding (cement+water) pigging to the hopper, put in the construction materials
8. After all preparations are completed, turn on the power and turn off the clutch and start working

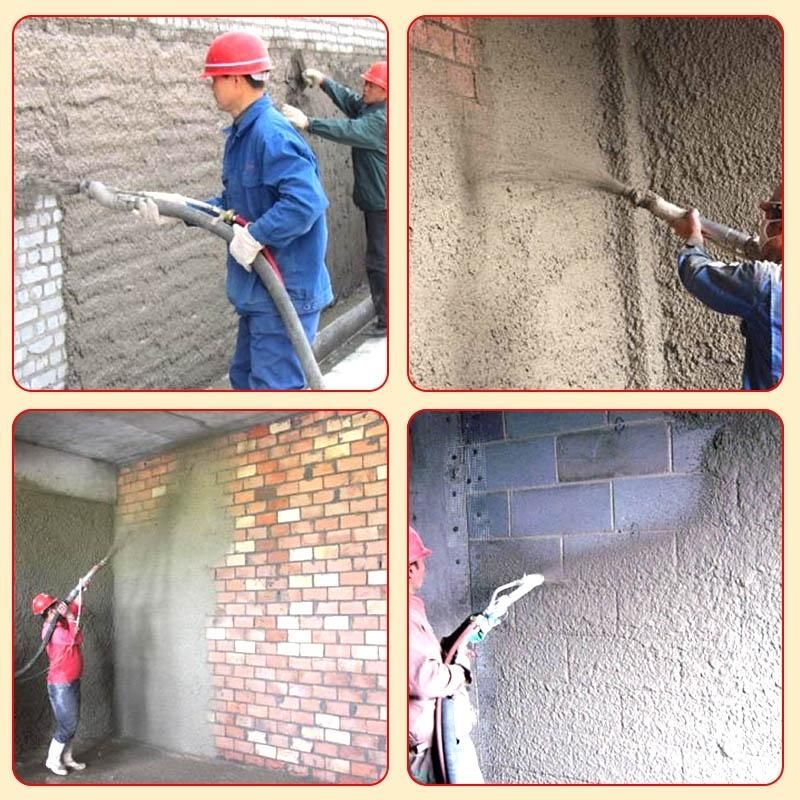

Application Scenarios
Safety instructions for spray machine use:
1. The machine should be placed in a flat, developed and safe place, and the power cord must be connected by a professional electrician. It must be connected to an effective ground wire and enter the host power supply through the leakage protector. When the voltage is unstable and does not meet the requirements of the machine, immediately stop the operation.
2. It is normal that the machine is difficult to start for the first time. Because the pressure of the high-pressure pump head of the new machine is too high, add a proper amount of lubricating fluid to the hopper, and repeat the manual gear to start the spray.
3. During the operation of the machine, it is strictly forbidden for people to touch the hopper and the rotating place. Minors are not allowed to operate this equipment.
4. If the machine has an abnormal situation, press the emergency button as soon as possible, and restart after troubleshooting.
5. Cut off the power supply for parts replacement and maintenance. Do not modify the structure of the machine without authorization. Regularly check the aging of the line and replace it in time.

FAQ
1.How long of the delivery time?It takes about 15 working days to delivery the secondary structure column pump machine
2.what isthe warranty time?
1 years
3.Do you have agent ?
We are looking for agent in every country, if you have interesting, feel free tocontact us .
4.How can we use the machine?
we will send the english user manual and video with the machine, if not enough, we can teach you online.
5.What is the MOQ:
1 set
6.What is the payment term?
30% deposit T/T , balance pay against copy of B/L if CIF or CFR. 50% deposit T/T, balanced pay off when we finish the production.
