• Model NO.：XD143
• Rated Power(Kw)：98
• Max Operating Weight(Kg)：14000kg
• Drum Width(mm)：2130
• Transport Package：Nude Packing
• Trademark：Made in China
• Origin：Jiangsu, China
• HS Code：84294019

Basic Info.

Model NO. XD143 Rated Power(Kw) 98 Max Operating Weight(Kg) 14000kg Drum Width(mm) 2130 Transport Package Nude Packing Trademark Made in China Origin Jiangsu, China HS Code 84294019

Product Description

Made in China Road Construction Machinery XD143 Double Drum Used Tamden Road Roller

Tandem vibratory road roller XD143

Main parameter:

Operating weight: 14 tons

Vibration frequency: 50/67 Hz,

Drum width:2130 mm,



Detailed configuration

* DEUTZ BF4M1013EC engine,118Kw,

* Saul hydraulic system

* Electronic control system

* Driving cabin with air conditioner equipped,



Item	Unit	XD143
Operation weight	kg	14000
Front wheel distribution quality	kg	7000
Rear wheel distribution quality	kg	7000
Speed range	km/h	Igear 0-6 / IIgear0-8 / IIIgear0-12
Theoretical climbing ability	%	35
Minimum turning radius (inside / outside)	mm	4470/6600
The maximum amount of crab	mm	±160
swing angle	°	±8
Steering angle	°	±35
Static linear load	N/cm	330/330
Nominal amplitude	mm	0.30/0.80
Vibration frequency	Hz	50/67
Exciting force (high frequency)	kN	110/170
Model		DEUTZ BF4M1013-15T3R2
Rated power	kW	111
Rated speed	r/min	2100
system voltage	V	24
steering system	MPa	17.5
Oil filling pressure	MPa	2.4
driving system	MPa	40
Vibration system	MPa	33
Wheel pressure	L	40
Hydraulic tank	L	80
Engine oil	L	16
Fuel tank	L	240
water tank	L	1000
ambient temperature	ºC	-10ºC~+40ºC
Altitude	M	≤3000

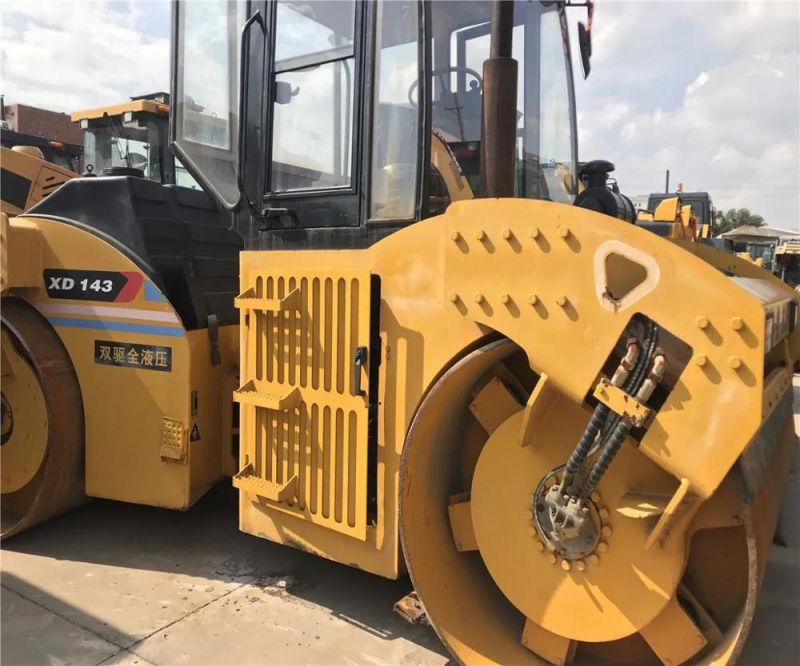

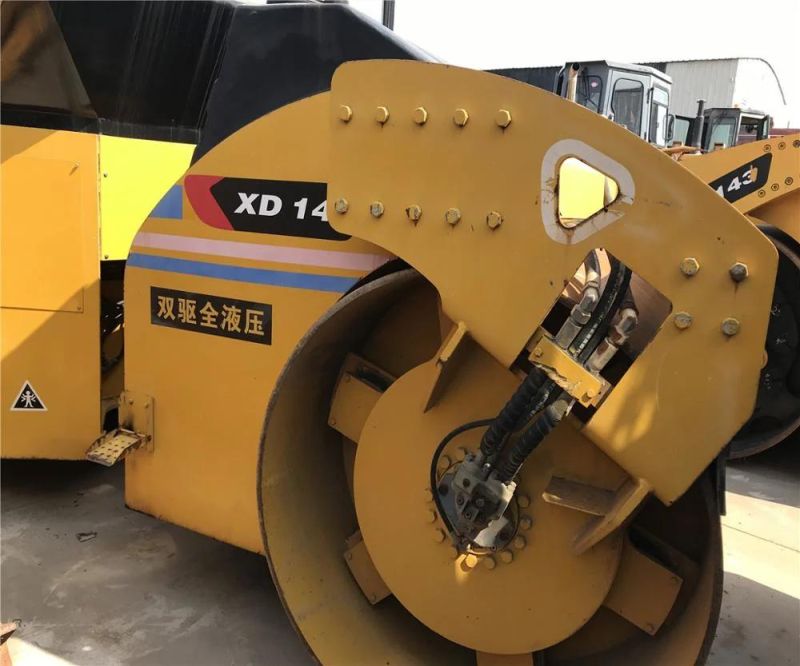

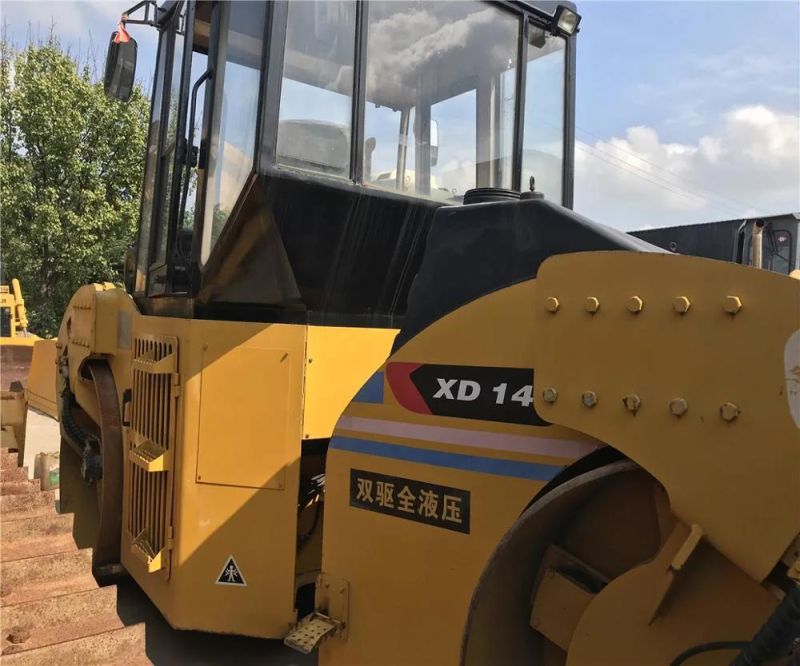

Detail Pictures:





Related Products:

Model	Operating Weight(KG)	Type	Main Configurations	Dimension (MM)
XP163	16000	Front 4 Rear 5 Tyre Road Roller	YC4A125Z Engine 92KW	4770*2210*3442
XP203	20000	Front 4 Rear 5 Tyre Road Roller	YC4A125Z Engine 92KW	4770*2250*3285
XP263	26300	Front 4 Rear 5 Tyre Road Roller	SC7H160.2G3 Engine 118KW	4925*2530*3370
XP303	30300	Front 4 Rear 5 Tyre Road Roller	SC7H180.2G3 Engine 132KW	4925*2530*3370
XMR403	4100	Double Drum Road Roller	ZN490Q Engine 33.5kw	2720*1416*2776
XD123E	12300	Double Drum Road Roller	BF4M2012-13T3R/6 Engine 98kw	5140*2270*3020
XD133E	13000	Double Drum Road Roller	BF4M2012C Engine 98kw	5700*2420*3020
XD143	14000	Double Drum Road Roller	BF4M1013-15T3R/2 Engine 111kw	5140*2290*3070
XS123	12000	Hydraulic Single Drum Roller	Cummins  4B3.9 Engine 93kw	5970*2300*2990
XS183	18000	Hydraulic Single Drum Roller	BF6M2012C Engine 136kw	6222*2390*3200
XS203	20000	Hydraulic Single Drum Roller	BF6M2012C Engine 136kw	6222*2430*3200
XS263	26000	Hydraulic Single Drum Roller	BF6M1013-22T3R Engine 159kw	6877*2430*3330
XS303	30000	Hydraulic Single Drum Roller	BF6M1013-24T3R Engine 179kw	6877*2480*3330
XS163J	16000	Mechinical Single Drum Roller	SC4H140.192 Engine 103kw	6222*2300*3200
XS203J	20000	Mechinical Single Drum Roller	SC7H175.2G3 Engine 128kw	6220*2390*3200
XS263J	26000	Mechinical Single Drum Roller	SC8DK190.2G3 Engine 140kw	6430*2470*3260
