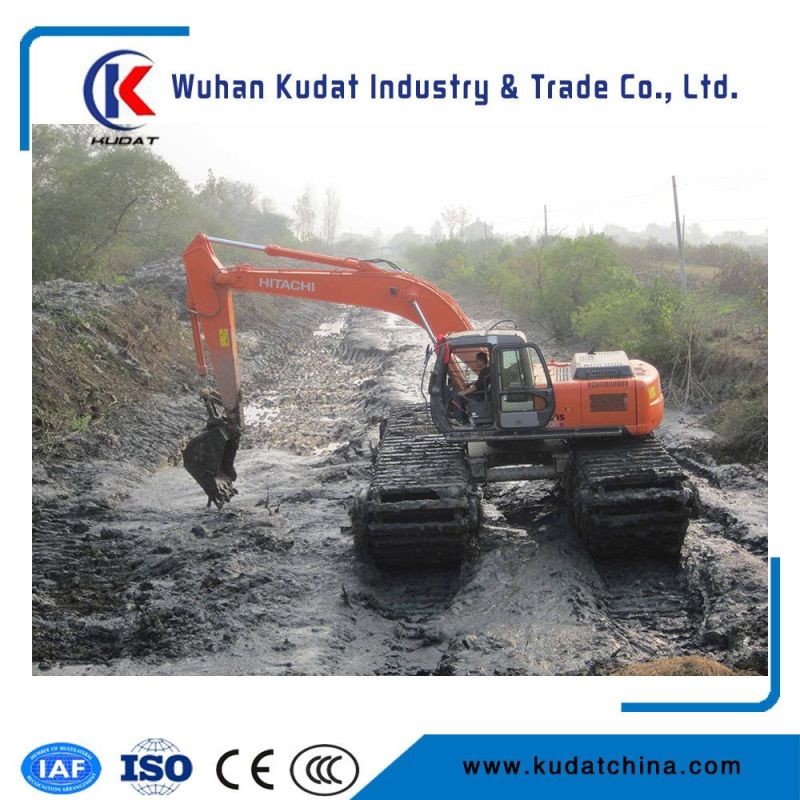

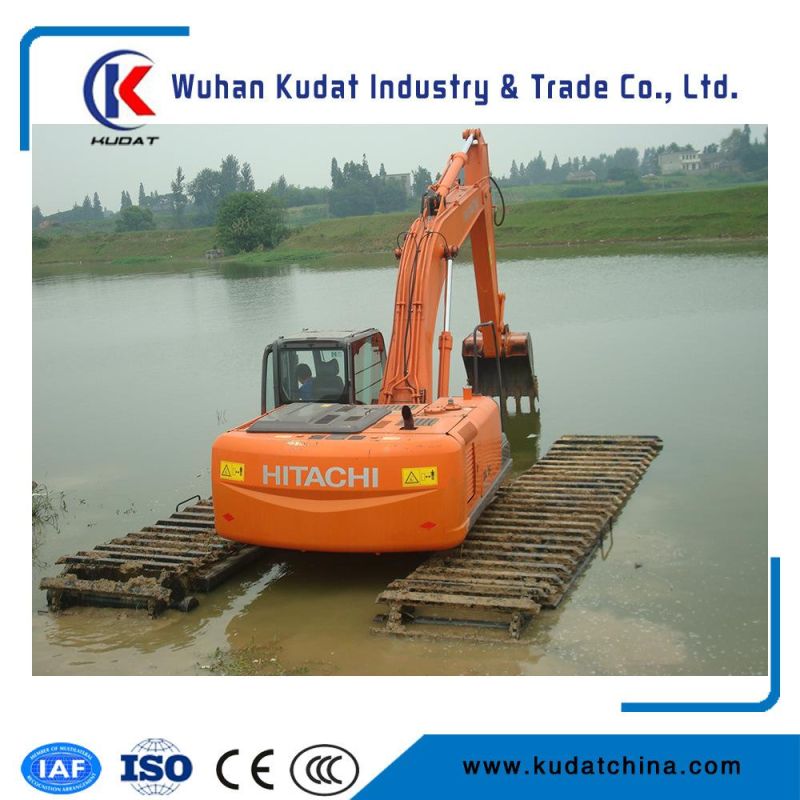

21tons Hydraulic Amphibious Excavators with Additional Side Pontoons and Swamp Pump (K210SD)
Wuhan Kudat Industry & Trade Co., Ltd.- After-sales Service:1 Years
- Warranty:1 Years
- Type:Amphibious Excavator
- Usage:Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket:Backhoe
- Transmission:Hydraulic Transmission
Base Info
- Model NO.:K210SD
- Drive Type:Internal Combustion Drive
- Bucket Capacity:0.5~1.0m³
- Size:Medium-Sized
- Certification:ISO9001: 2000
- Condition:New
- Color:Yellow
- Operating Weight:26000kg
- Rated Powe:115kw
- Max. Digging Depth:5704mm
- Max. Digging Height:10577mm
- Max. Pumping Height:8430mm
- Max. Digging Radius:9925mm
- Length of Machine:10000mm
- Engine Model:Isuzu 6bg1trp
- Max. Torque:629n.M at 1600 Rpm
- Transport Package:Bulk
- Specification:SGS
- Trademark:kudat
- Origin:China
- Production Capacity:500PCS,Year
Description
ENGINEModel Isuzu 6BG1TRP Type Turbo-charged, inter cooled Number of cylinder 6 Max. power/rpm 114KW/2100rpm Max. torque 629N.M at 1600 rpm Displacement 6.49L HYDRAULIC SYSTEM Main pumps Type Variable displacement axial piston pumps Max. displacement 2×107cm 3 /r Max. flow 20L/min Working pressure 32Mpa Hydraulic motor S Slew Fixed displacement axial piston motor Travel Variable displacement axial piston motors Performance Slew speed 11rpm Min. back slew radius 2828mm Max. travel speed high/low 5.4/3.2km/h Grade ability 35° traction force 279.8kn Max. digging force of bucket 122.85kn Max. digging force arm 97.64kn Groud pressure 0.14kg/cm 3 Tank capacity Fuel tank capacity 296L Hydraulic tank capacity 296L
After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.

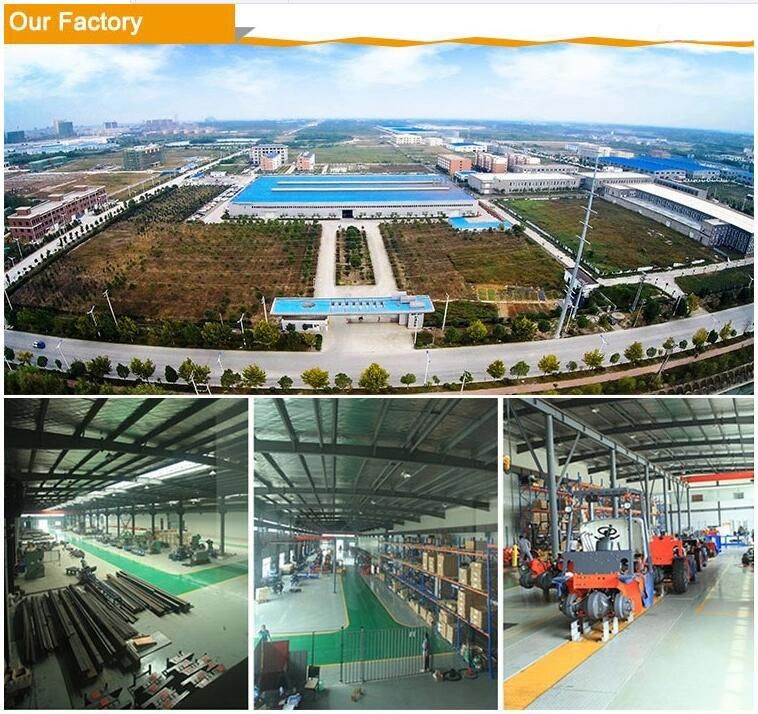

Company Overview
