• Model NO.：Excavator CR155W
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Wax Sprayed
• Specification：7760x3120x2800
• Trademark：CHARY
• Origin：China
• HS Code：8429521900
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. Excavator CR155W Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Transport Package Wax Sprayed Specification 7760x3120x2800 Trademark CHARY Origin China HS Code 8429521900 Production Capacity 500 Unit/Month

Product Description

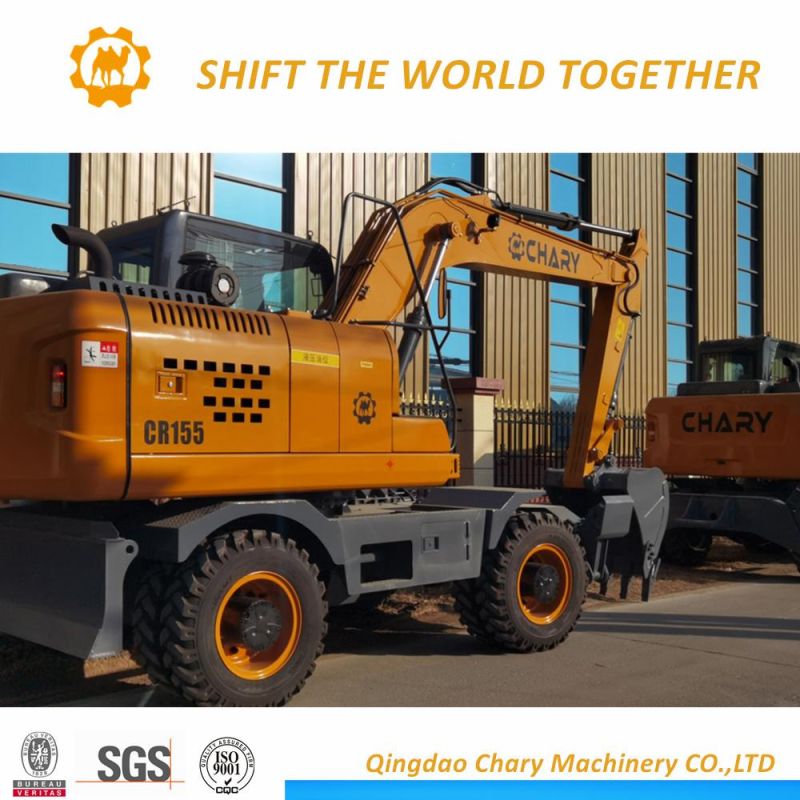

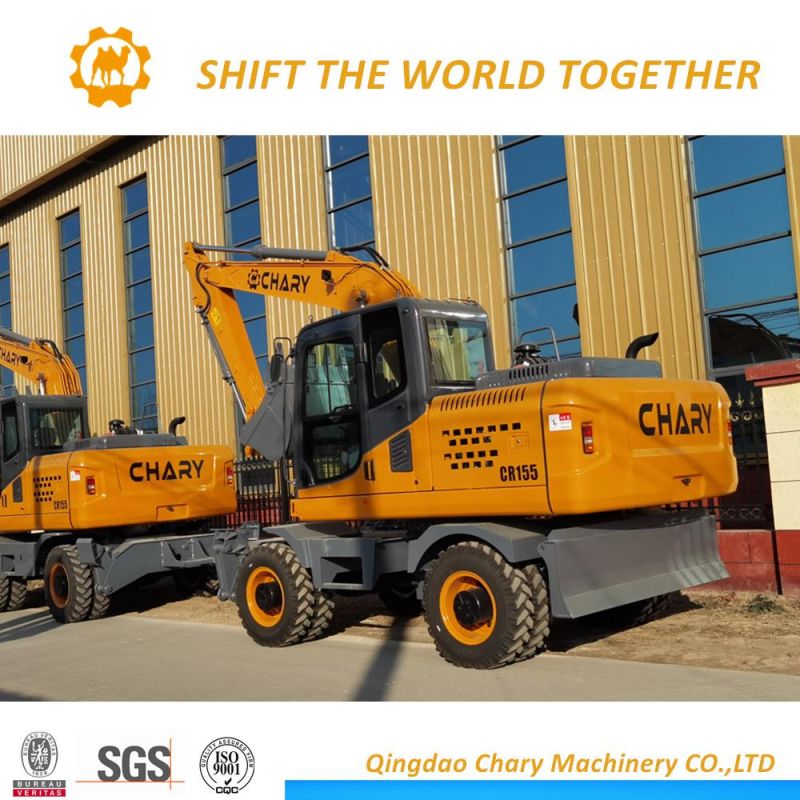

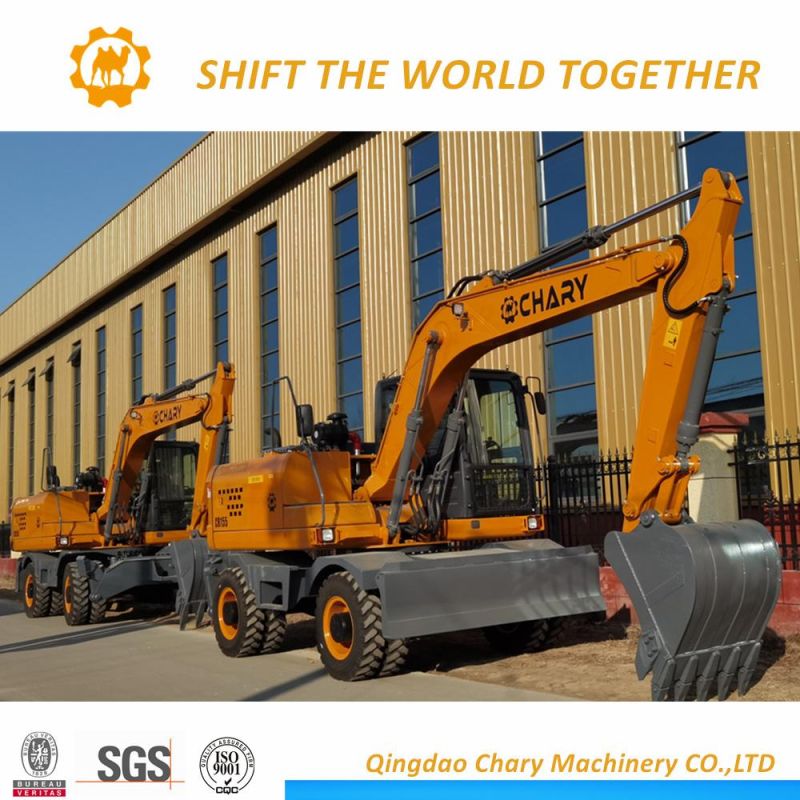

Cheap price China CHARY 15T wheel excavator

Type: Wheel Excavator
Brand: CHARY
Model: CR155
Bucket: 0.7m³
Weight: 15450kgs
Configuration:
Main Pump:Korea Kawasaki
Main Valve:Korea Parker
Slewing Motor: Eaton
Stable performance, hydraulic 4WD drive system, four-layer winding tubing, DOOSAN standard buffer cylinder, equipped with dual heating and cooling air conditioning, with hydraulic breaker Piping.


Main specifications:

a	Shipping Length	7760 (mm)
b	Shipping Height	3120 (mm)
c	Overall Width	2700 (mm)
d	Tyre Type	9.00-20
e	Radius, Swing Center to Rear End	2400 (mm)
f	Wheelbase	2670 (mm)
g	Wheel Tread	1970 (mm)
h	Min Ground Clearance	250 (mm)
i	The Length of Arm	4600 (mm)
j	The Length of Boom	3131(mm)

Working range:

a	Max. Digging Height	9100 (mm)
b	Max. Dumping Height	6650 (mm)
c	Max. Digging Depth	5040 (mm)
d	Max. Digging Radius	8120 (mm)

Performance:

Engine Power	93/2200 (kw/rpm) Cummins
Hydraulic System Pressure	32(MPa)
Hydraulic System Flow	2X130(L/min)
Bucket Volume	0.70 (m3)
Bucket Digging Force	85 (KN)
Arm Digging Force	53 (kN)
Gradeability	70%
Rotation Speed	13-14 (r/min)
Travel Speed	30(km/h)
Approximate Weight	15450 (kg)
