• Model NO.：SR18M-2
• Condition：New
• Engine Power：114kw,2000 Rpm
• Operating Weight：18000kg
• Transport Package：Packing Suit for Ocean Ship
• Specification：5957*2305*3191mm
• Trademark：SHANTUI
• Origin：Jining City, Shandong Province, China
• HS Code：84294011

Basic Info.

Model NO. SR18M-2 Condition New Engine Power 114kw/2000 Rpm Operating Weight 18000kg Transport Package Packing Suit for Ocean Ship Specification 5957*2305*3191mm Trademark SHANTUI Origin Jining City, Shandong Province, China HS Code 84294011

Product Description

Rollers make up a large portion of the company's overall product offerings.
This is Shantui's own sales platform.

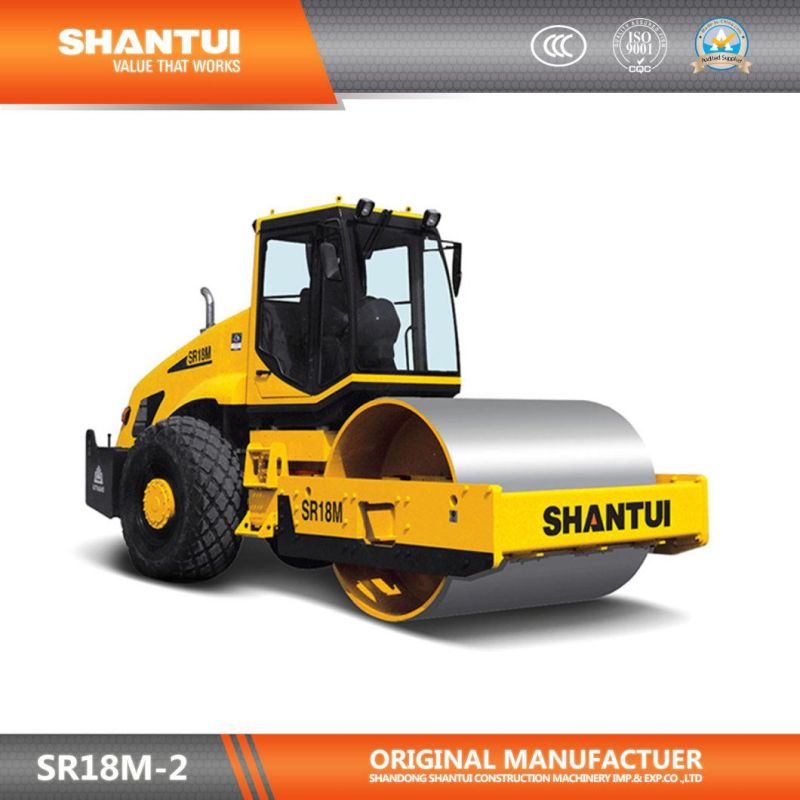

Shantui SR18M-2 Mechanical Single Drum Vibratory Road Roller

The SR18M-2 is 'bulked up' for the toughest of tough jobs with upgraded ball bearings, gearbox and a Cummins 6BT5.9-C155 engine. With heavy, mechanical vibratory roller that weighs in at 18 tons, the SR18M-2 uses its weight and dual-frequency double-amplitude hydraulic vibration to get your tougher jobs done. With weight and power plus a fully enclosed cab with optional AC, ergonomic control system,suspension seat and hydraulically articulated steering, the SR18M-2 provides big comforts on big jobs..With 154-knob 95 mm 'sheep's foot' rollers added to the SR18M-2, this 18.5-ton SR18MP-2 is ready to take on the toughest roadwork.


[Product Parameter]



Parameter name	SR18M-2
Performance parameters
Operating weight (Kg)	18000
Exciting force (KN)	350/175
Vibration frequency (Hz)	30/30
Nominal amplitude (mm)	2.0/1.0
Ground pressure (KPa)	-
Gradeability (%)	30
Engine
Engine model	6BTA5.9-C155
Rated power/rated speed (kW/rpm)	114/2000
Overall dimensions
Overall dimensions of machine (mm)	5990*2370*3215
Driving performance
Forward speed (km/h)	F1: 2.1,F2: 4.1,F3: 8.8
Reversing speed (km/h)	R1:2.1,R2:4.1
Chassis System
Wheelbase (mm)	-
Tank capacity
Fuel tank (L)	295
Working device
Compacting width(mm)	2140

[CHARACTERISTIC]

Driving/Riding Environment

1. The mechanical drive system with three-speed regulation and flexible steering adapts to diversified working conditions.

2.The installed Plate integral transmission features compact structure, small overall dimensions, stable gearshift, low impact, noise, and heat, and long life and is equipped with synchronizers to realize gearshifts during driving and guarantee handy operations and high efficiency.

3. The excellent overall airtightness of cab and the three-stage shock-absorption for whole machine achieve low vibration and noise and the seat position and backrest angle are adjustable in large range to guarantee high operating comfort.

4. The ergonomic cab features large space and excellent visual field.

5. The safety passageway system and the reasonably arranged safety handrails and anti-skid footplates for whole vehicle guarantee the driver's safety.


Working performance

1. The closed-loop hydraulic vibrating system is applied. With double-amplitude, its scientifically reasonable static linear load and exciting force configuration guarantees the effective compacting for the materials of diversified types and the pavements of diversified thicknesses.

2. The imported heavy-duty variable displacement plunger pump is applied for the vibrating pump and the vibrating system is electronically controlled to realize simple operations and guarantee the reliability and flexibility of vibrating system.

3. The vibrating drum adopts the new structure of Shantui's proprietary technology to thoroughly solve the oil leakage/permeation problem of vibrating drum and achieve high eccentric mass, high exciting force, and high static linear pressure of vibrating drum.

4. The optional padfoot vibrating drum can be installed to expand the application scope of product and bring about value-added return of "One machine for two applications" for the user.



High maintenance convenience

1. The hood of large opening angle eases the maintenances of engine and hydraulic system.

2. The modular structure eases the disassembling of parts and ensures low maintenance cost and easy maintainability.

3. Less malfunctions and convenient maintenances.


Operating cost

1. The structural parts inherit the excellent quality of Shantui mature products to realize high durability.

2. The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.

3. This product is powered by SDEC SC8D185.2G2B1 turbocharged and intercooled engine, featuring excellent fuel economy, really high market ownership volume, strong parts universality, and low maintenance cost.

Our Advantage
1.Multiple products: Various bulldozer series.
2.Favorable price: Factory outlet.
3.Short delivery period: Factory outlet.
4.Flexible business terms: Supported by reliable insurance and financial platforms.
5.Perfect after-sales service: Global after-sales service network.




Our Market
Nowadays, Shantui products have a quite good reputation in Africa, Europe, America, and Asia.


Our Service
Shantui Service, Anytime & Anywhere
Perfect after-sale service system

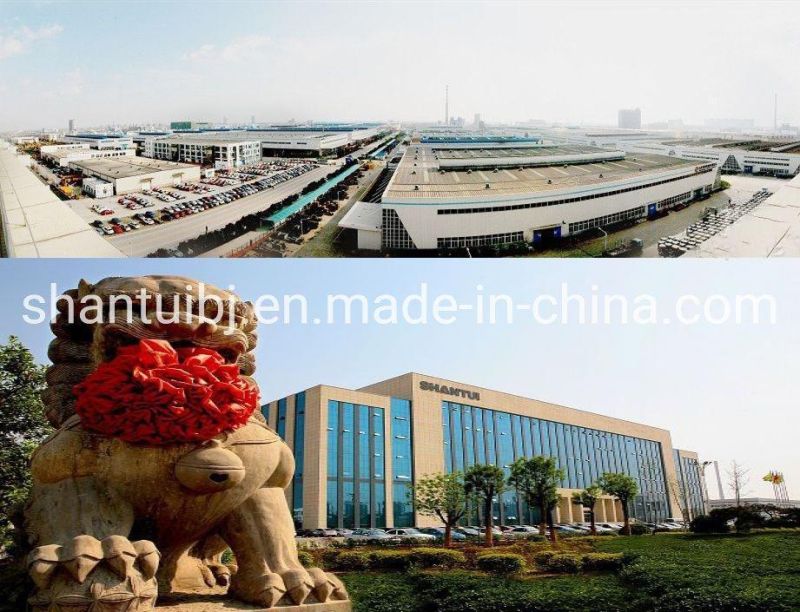

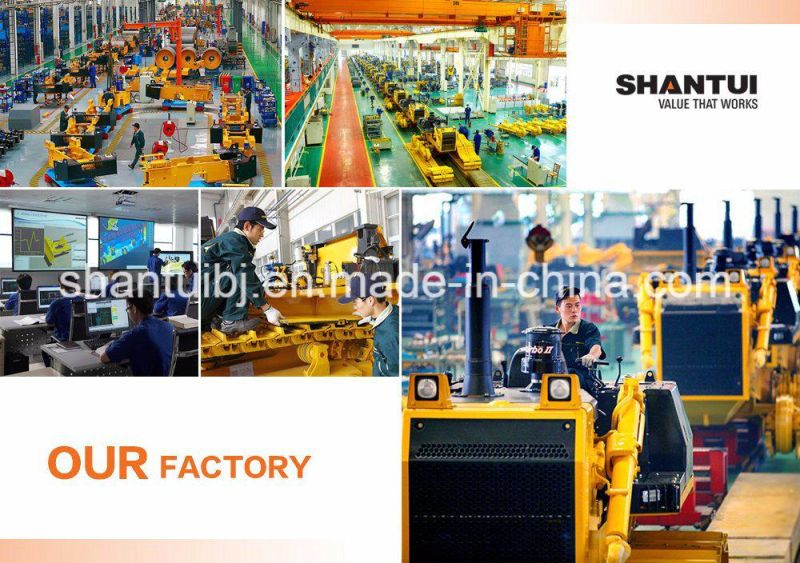

Our Factory





Our Contact Information
Add : Focus Square C-F11, No. 6 Futong East Road, Chaoyang District, Beijing, China 100102
