High Operating Efficiency Fully Hydraulically Operated Front Towed Blade Road Grader Competitive Price Brand New Sg21A-3 Road Construction Machine Motor Grader
Qingzhou Changhui International Trade Co., Ltd.- After-sales Service：Provided
- Warranty：Provided
- Condition：Used
- Application：Mine, Farmland
- Transmission：Hydraulic
- Walking Mode：Wheeled
Base Info
- Model NO.：SG21A-3
- Type：Medium-sized Grader
- Transport Package：Container
- Specification：Operating Weight 17.1Ton
- Trademark：Shantui
- Origin：China
- Production Capacity：10000
Description
Basic Info.
Model NO. SG21A-3 Type Medium-sized Grader Transport Package Container Specification Operating Weight 17.1Ton Trademark Shantui Origin China Production Capacity 10000Product Description
Products Description
Technical Features

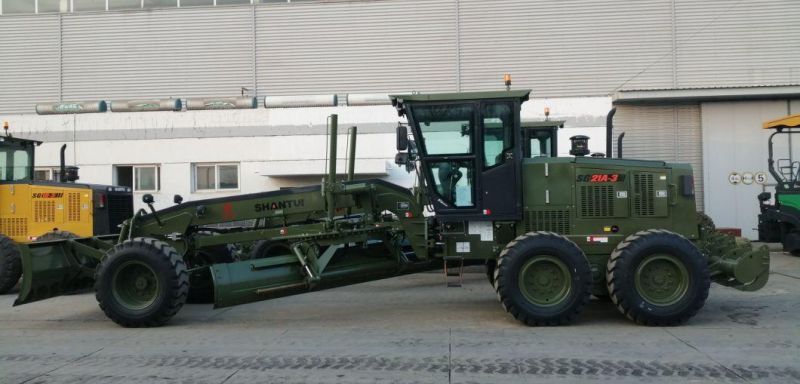

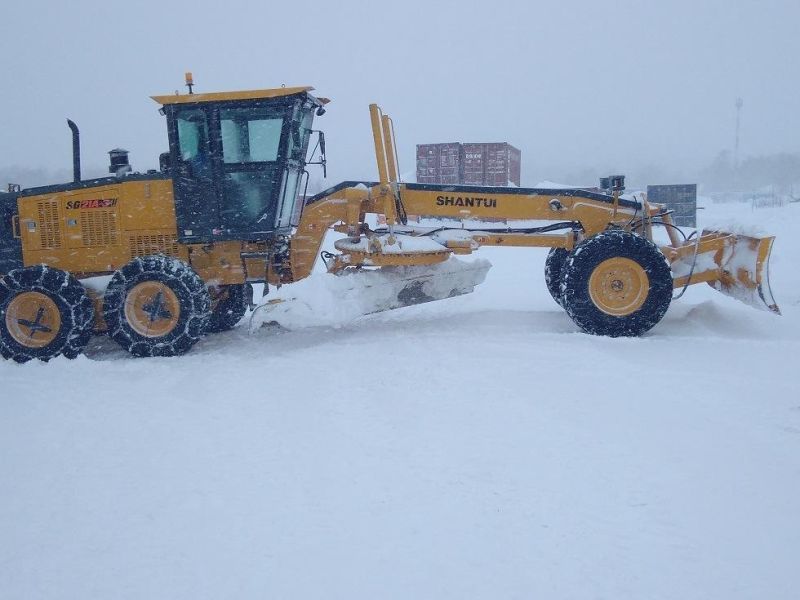

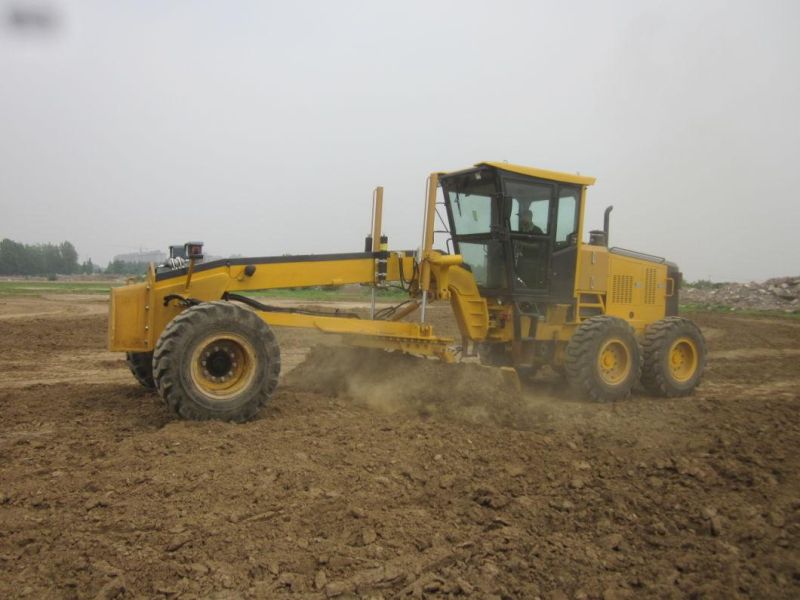

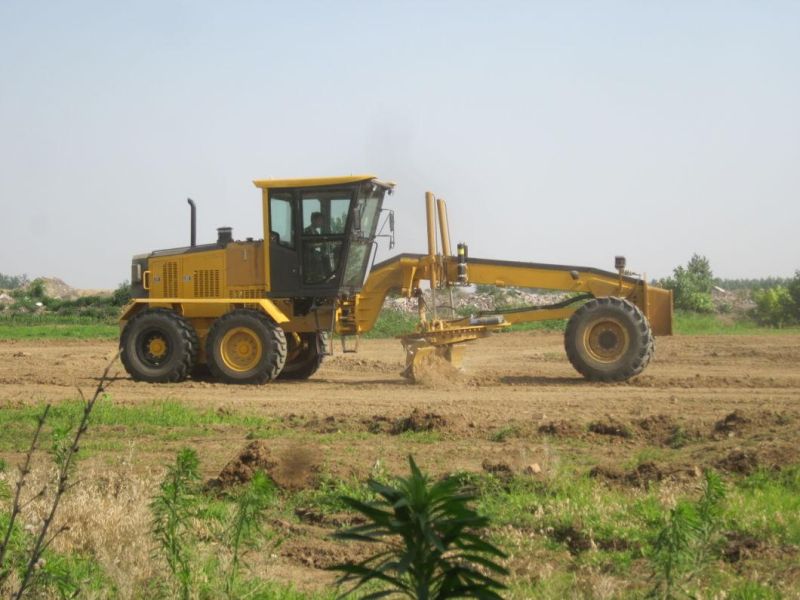

SG21A-3 motor grader is an all-wheel drive motor grader developed on the basis of SG21-3, with three working modes (all-wheel drive, four-rear-wheel drive, and front-wheel crawling). Under the all-wheel drive mode, the traction force of the whole machine is increased by 30% to remarkably improve the working efficiency of the motor grader.
The engine features reliable performances and high efficiency and energy-saving.
The 6-speed electronically controlled shift hydraulic transmission with technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
The box-type structure welded from integral plates features high strength.
The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
Featuring simple operations and high impact resistance against external forces, it's applicable for the working conditions with high operating volume and severe operating environment.
The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
The maintenance-free high performance battery is equipped.
The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
The automatic leveling system can be additionally installed.
The special drive tires and the conventional tires are at your choice for the motor grader.
Main Specification| Product name | SG21A-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 16900 |
| Wheelbase (mm) | 6560 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 95 |
| Turning radius (mm) | 8200 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 44-91 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9430 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 9.4 |
| Speed for forward gear III (km/h) | 12.2 |
| Speed for forward gear IV (km/h) | 20.5 |
| Speed for forward gear V (km/h) | 25.4 |
| Speed for forward gear VI (km/h) | 39.7 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 12.2 |
| Speed for reverse gear III (km/h) | 25.4 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X23 |
