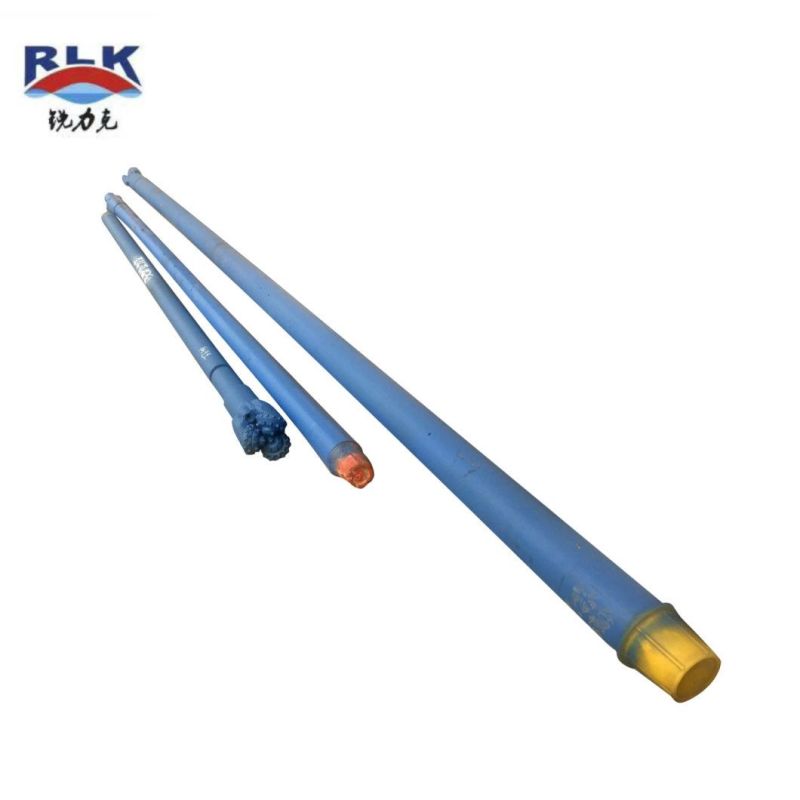

HDD Downhole Drilling Mud Motor for Horizontal Directional Drilling/Boring
TIANJIN RUILIKE ENGINEERING MACHINERY CO., LTD.- After-sales Service：Yes
- Warranty：1 Year
- Type：Motor
- Application：Pile Driver
- Certification：ISO9001: 2000
- Condition：New
Base Info
- Model NO.：RLK7LZ120*7.0
- Trenchless：HDD Drilling System
- Name：Mud Motor, Downhole Motor
- Catalogue：HDD Drilling Tools
- Function：Working with The Tri-Cone Bits
- Suitable for：Rock Drilling
- Related Products：Tri Cone Bits, Sonde Housings, Rock Backreamers
- Accessories Availabe：Swivels, Subs, Protection Joints, Pulling Eyes
- Bit Size：149-200mm
- Lobe：7:8
- Flow Rate：600-1200 Lpm
- Dia of Rod：149-200mm
- Thread Type：4.5" Reg
- Customized Service：Yes
- Mud Motor Options：54,65,95,100,120,165,172,185,197,203,216,244
- Quality Level：High Quality

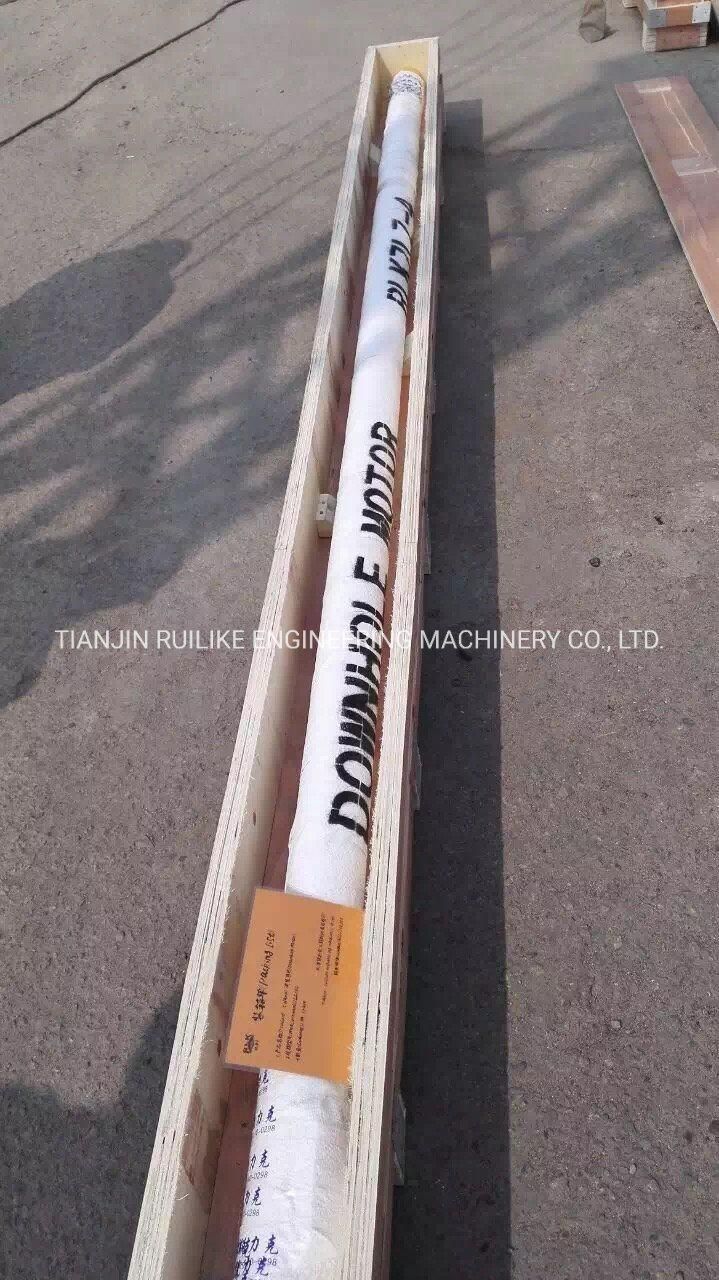

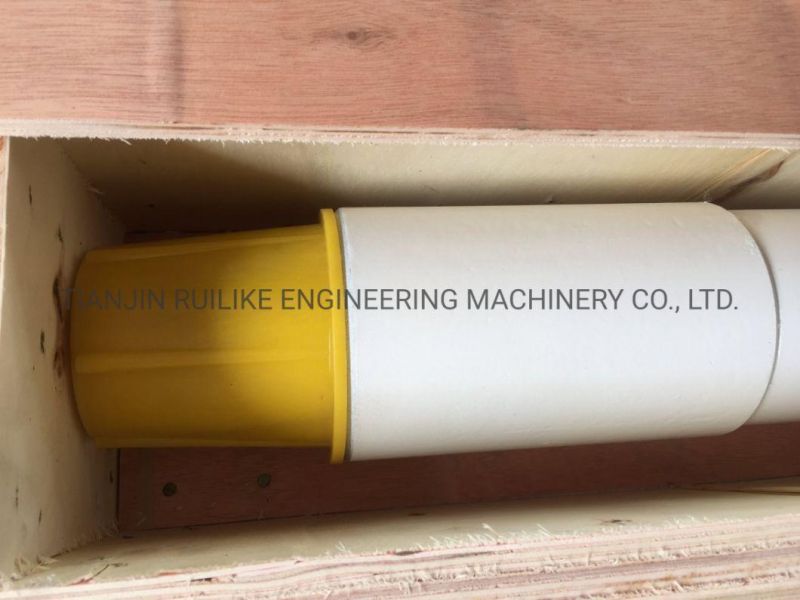

- Transport Package：Polywood Box
- Specification：120mm*7.0
- Trademark：RLK
- Origin：Made in China
- HS Code：8412291000
- Production Capacity：200
Description
Mud Motor can be Customized as order2 120 10-16 L/s 149-200mm 102-114mm NC38/46 3 165 20-32 L/s 213-251mm 114-127mm NC46/50 4 172 20-36 L/s 213-251mm 114-140mm NC50/ 5-1/2FH 5 Super short drilling tool / / / / 6 High deflecting drilling tool / / / /
RuiLiKe can customize the downhole mud motors in different sizes and in high/medium/low speed as requested.

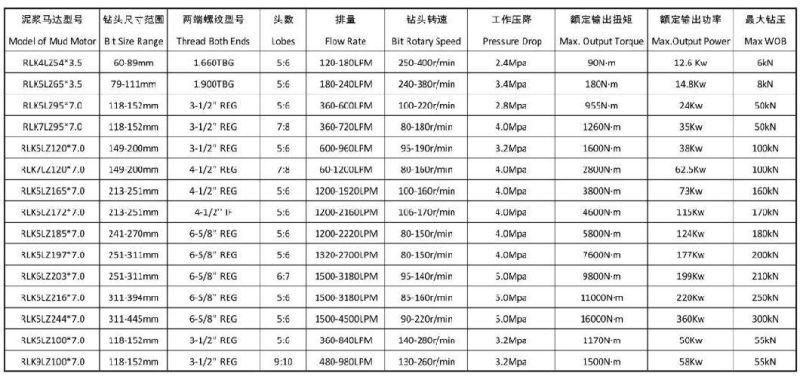

Down-hole Mud Motor technical Parameter (detailed):
Product description:
Down-hole motor (also named mud motor) is a positive-displacement motor. It converts high fluid power into mechanical energy of bit rotation. Down-hole motor is widely used for drilling, deflecting, azimuth control, coring, reaming, side tracking drilling and workover for horizontal well, cluster wells and straight well of oilfields and coal mines. In addition, it is suitable for complex drilling.
Downhole Motor Working PrincipleDownhole motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The downhole motor property mainly depends upon its property parameters.

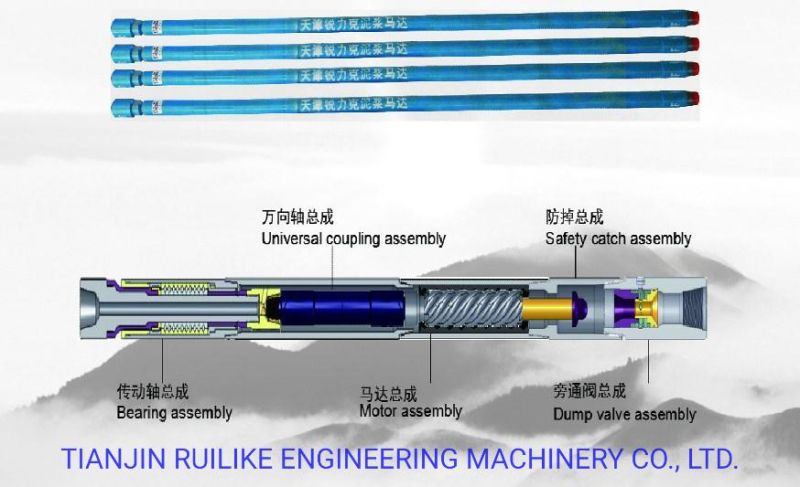

Constitution of Downhole Mud MotorDownhole mud motor is composed of five assemblies of bearing, power section, coupling, anti-drop and bypass valve.
Application of mud motors:
Down-hole motor is also named mud motor which is best choice in HDD projects on conquering the complicated methane.When combined drilling the drill pipes and downhole motor rotate together.When directional drilling keep the mother line of downhole motor and 12 o'clock position of probe cavity in line and rotate the downhole motor and probe cavity together making them point to the needed direction. In this case the drill pipe and shell of downhole motor stop rotating,drilling machine provides the pushing powre only.Cone bit drills the rocks driven by the rotor which is driven by the drilling fluid.

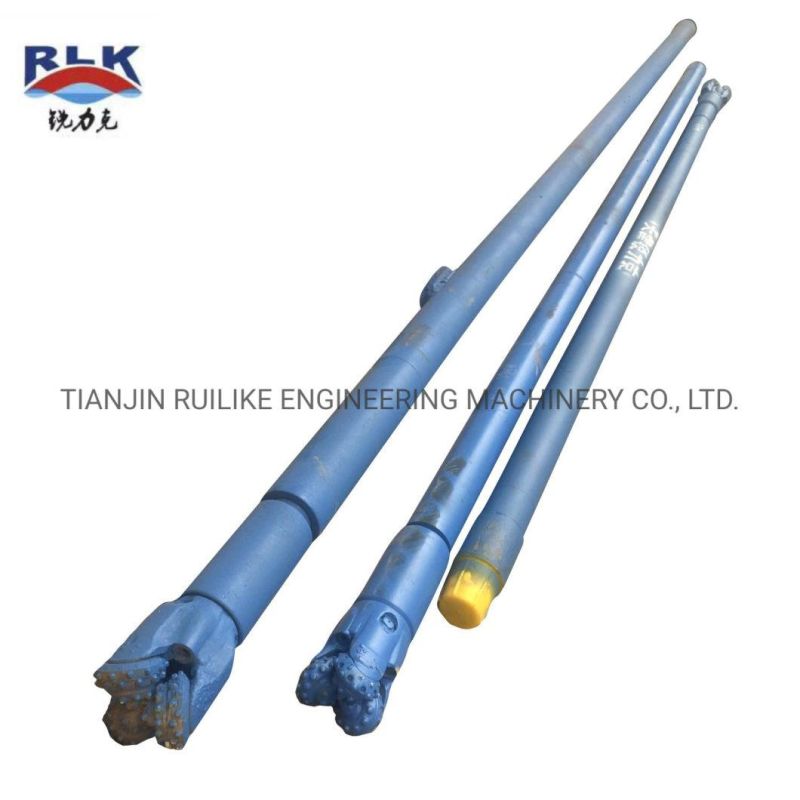

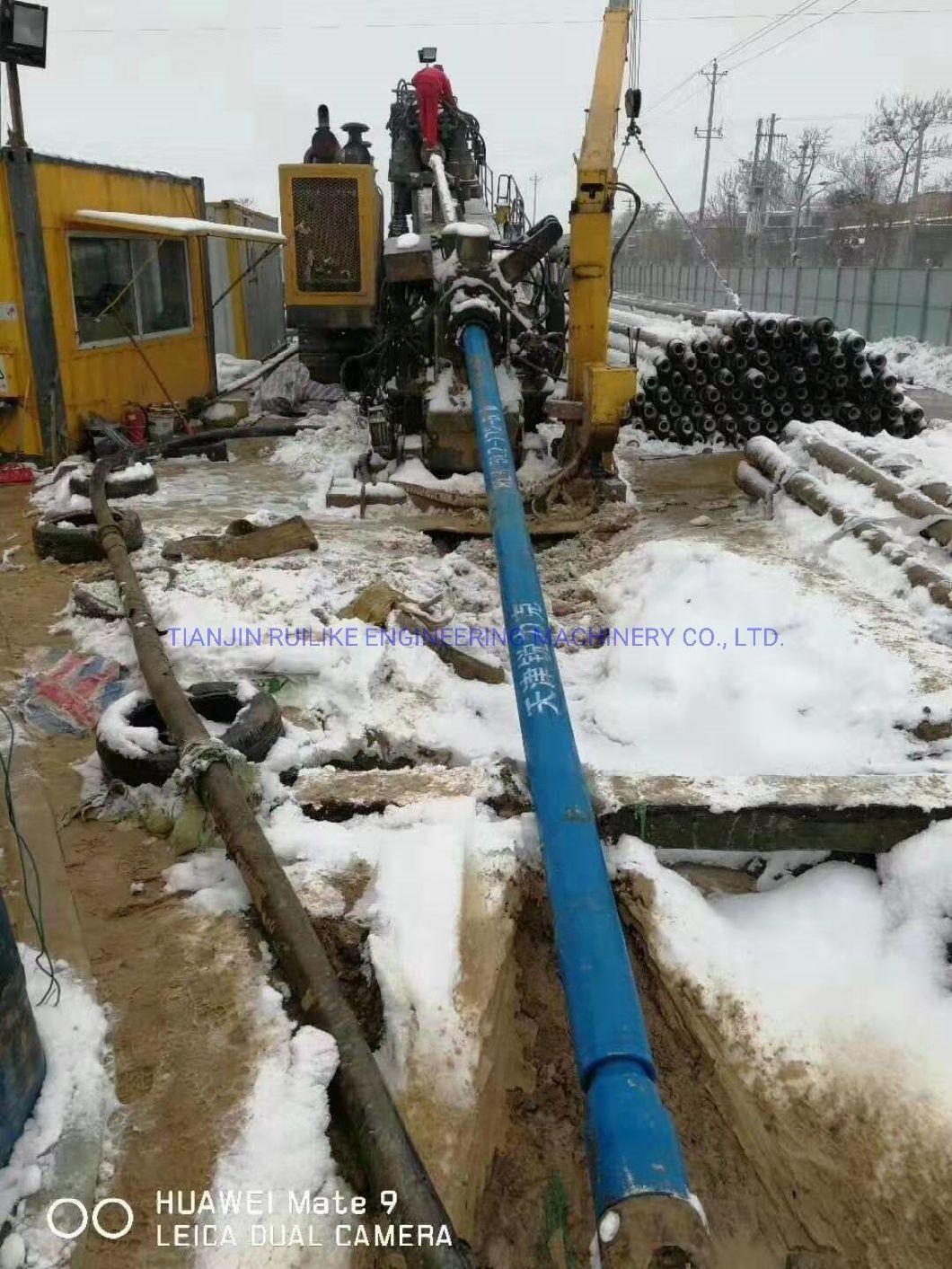

The Picture of Product in site (HDD Downhole Drilling Mud Motor for Horizontal Directional Drilling/Boring)
Besides mud motors and tri-cone bits, RuiLiKe also makes many other related equipment for HDD drilling industry.

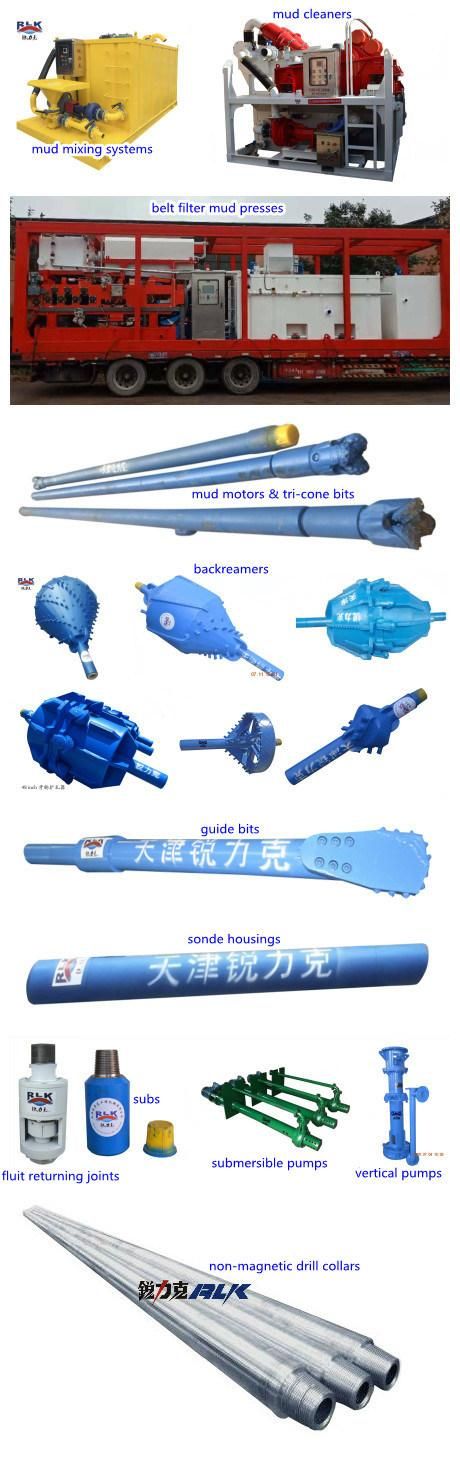

Product show of our trenchless equipment: mud mixing systems, mud cleaners (desanders), belt filter mud presses, downhole mud motors, tri-cone bits, backreamers, guide bits, sonde housings, drilling fluit returning joints, subs, pulling eyes, swivel, submersible pumps, vertical pumps, non-magnetic drill collars, hydraulic breakout tools, drill pipe lifters, etc.

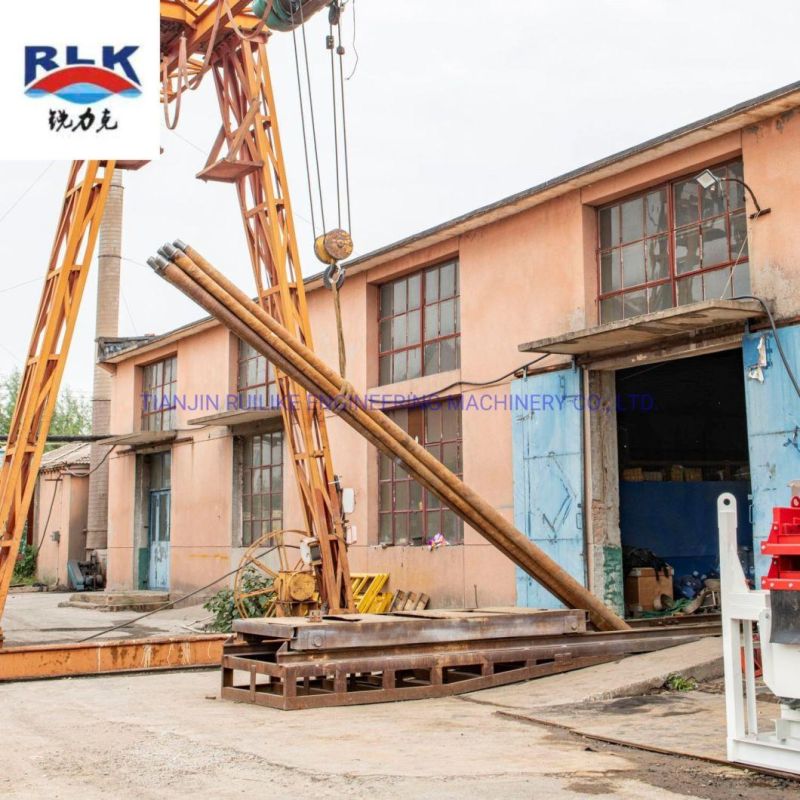

Tianjin Ruilike Engineering Machinery Co., Ltd. was established on May 31,2012, located in Tianjin, China. produces HDD rock cutter, soil sand reamers, mud solid control system(including mud mixer, tank, mud cleaner, shale shaker, desander, desilter), sewage treatment system, municipal sewage treatment system and ect. Accoranding constantly develop, RUILIKE be known of brand suppliers, we adhering to "to forge ahead ","to be top ","to do the best" enterprise concept, people-oriented, and to service to create value, supply satisfactory product to globle more than 200 customers. We consciously integrate social responsibility into production and management activities, develop green machinery products, and protect environmental resources. Ruilike always keeping to the steady management, creating golden brand, making master style. RUILIKE pleasure to work with colleagues to create supreme future.
