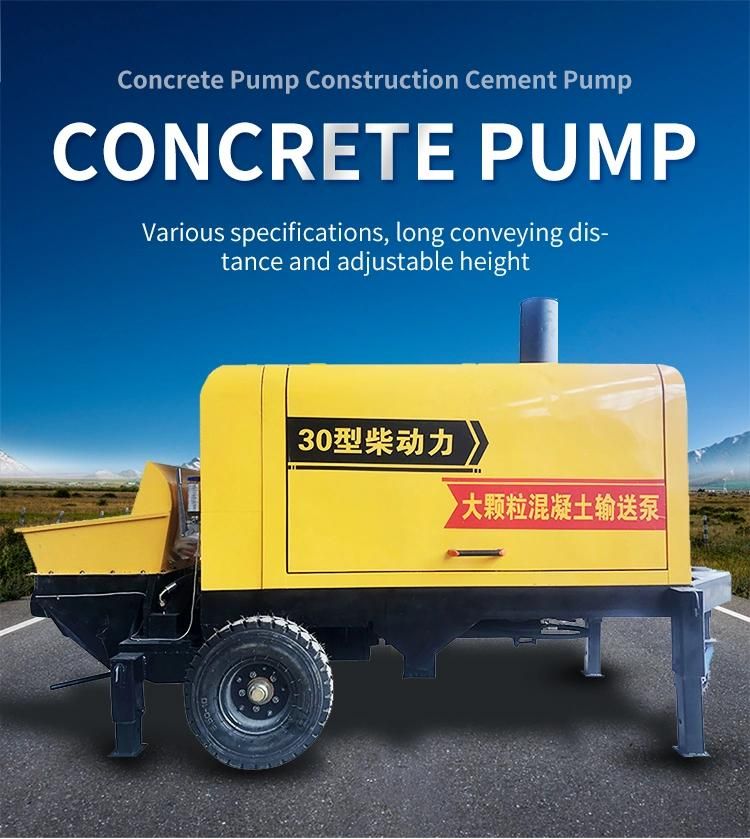

Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Mixer Pump Discount
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Warranty:1 Year
- Type:Concrete Pump
Base Info
- Model NO.:Concrete Mixer Pump
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Cylinder Type
- Productivity:40m3,H
- Feeding Height:1400mm
- Vibrating Amplitude:1.1mm
- Condition:New
- Color:Yellow
- Maximum Theoretical Delivery M³/H:40 Diesel Concrete Pump
- Maximum Outlet Pressure MPa:13 Electric Concrete Pump
- Motor Power Kw:55 Mini Cement Pump
- Feeding Height mm:1200 Small Cement Pump
- Host Quality Kg:3400 Mortar Grouting Machine
- Most Suitable for Pumping Concrete Slump:15—2
- Transport Package:Wooden Case or as Required by The Customer
- Specification:4300× 1600× 1800mm
- Trademark:China Coal
- Origin:China
- Production Capacity:1000 Sets Per Month
- Package size per unit product:800.00cm * 800.00cm * 800.00cm
- Gross weight per unit product:800.000kg
Description
Basic Info.
Model NO. Concrete Mixer Pump Shotcrete Type Wet Machining Process Hydraulic Structure Cylinder Type Productivity 40m3/H Feeding Height 1400mm Vibrating Amplitude 1.1mm Condition New Color Yellow Maximum Theoretical Delivery M³/H 40 Diesel Concrete Pump Maximum Outlet Pressure MPa 13 Electric Concrete Pump Motor Power Kw 55 Mini Cement Pump Feeding Height mm 1200 Small Cement Pump Host Quality Kg 3400 Mortar Grouting Machine Most Suitable for Pumping Concrete Slump 15—2 Transport Package Wooden Case or as Required by The Customer Specification 4300× 1600× 1800mm Trademark China Coal Origin China Production Capacity 1000 Sets Per MonthPackaging & Delivery
Package size per unit product 800.00cm * 800.00cm * 800.00cm Gross weight per unit product 800.000kgProduct Description
Introduction of Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Mixer Pump Discount

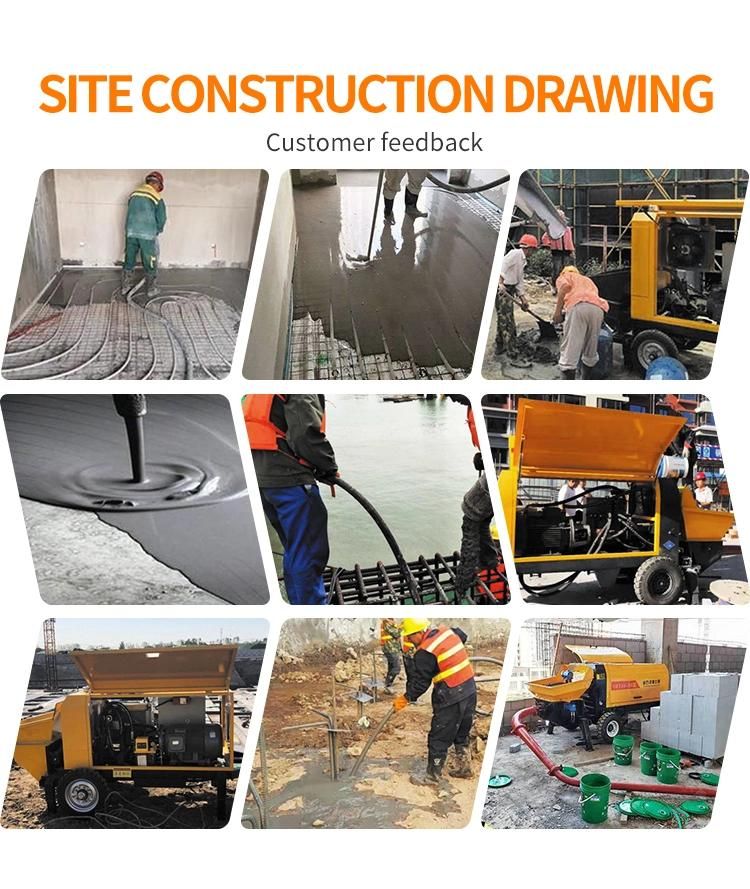

The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.zmwm07
Parameters of Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Mixer Pump Discount
Project | Unit | HBTS25 | HBTS40 | HBTS60 | HBTS80 |
Maximum theoretical delivery | m³/h | 23 | 40 | 60 | 80 |
Maximum outlet pressure | Mpa | 8 | 13 | 13 | 13-16 |
Maximum theoretical transport distance | m | 100/300 | 200/800 | 240/1100 | 240/1100 |
Motor Power | kw | 30 | 55 | 90 | 90-110 |
Feeding height | mm | 1200 | 1200 | 1350 | 1350 |
Pumpable concrete maximum particle size | mm | ≤50 | ≤40 | ≤40 | ≤40 |
Most suitable for pumping concrete slump | cm | 15-23 | 15-23 | 15-23 | 15-23 |
Duct inner diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 |
Host weight | Kg | 1900 | 3400 | 5000 | 5600 |
Dimensions: length × width × height | mm | 3300×1600 ×1800 | 4300×1600 ×1800 | 5500×1800 ×2000 | 5800×1800 ×2000 |
